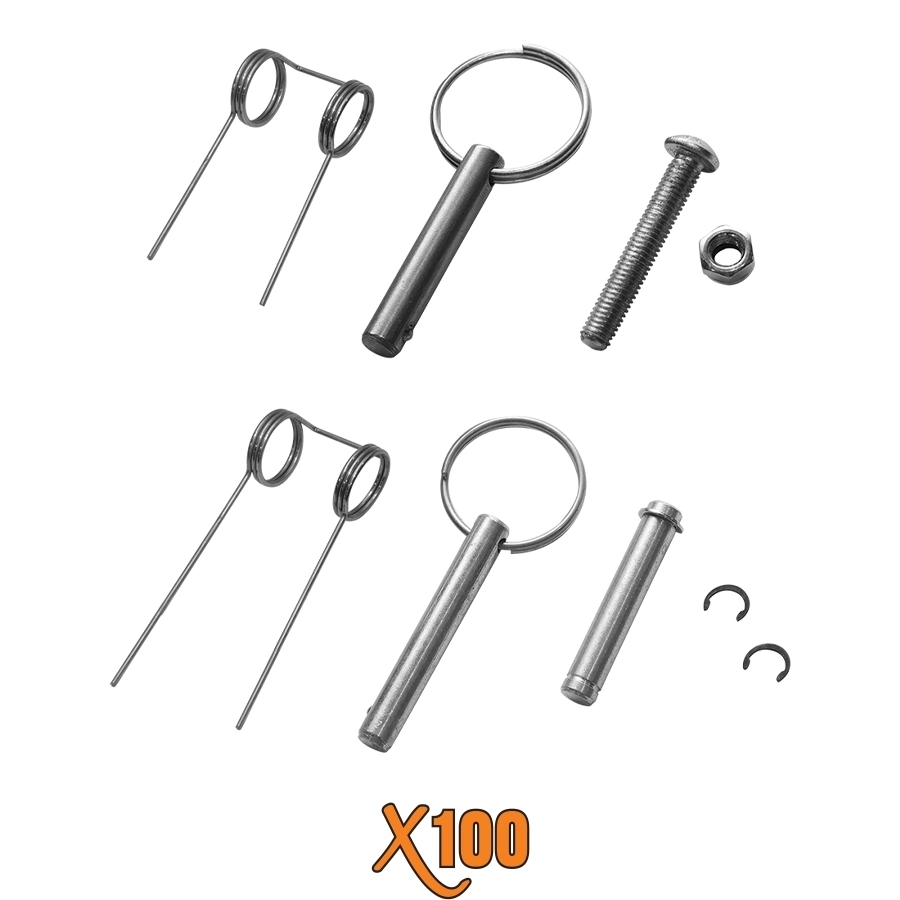

X100® X-Latch Repair Kit

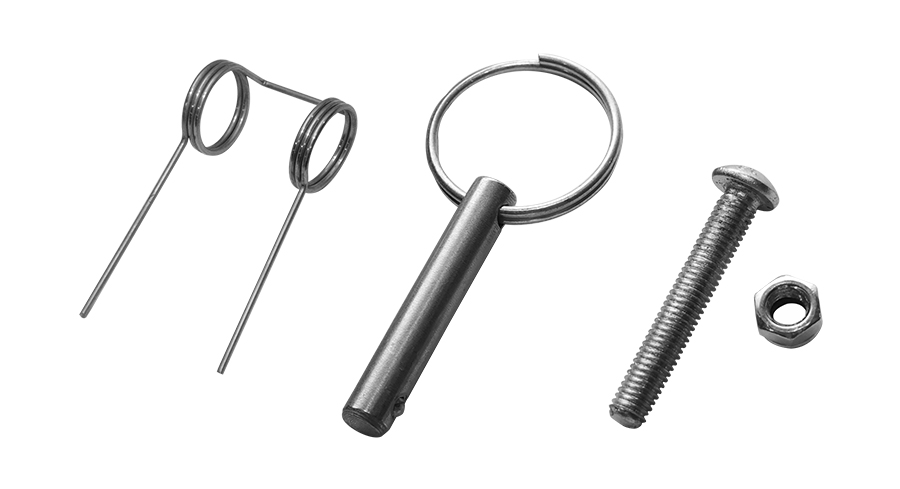

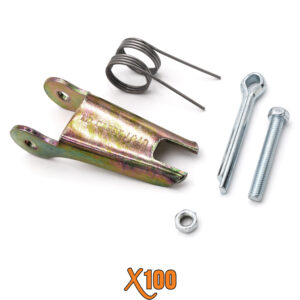

REPAIR KITS: For Latches 5 & 7 Tons

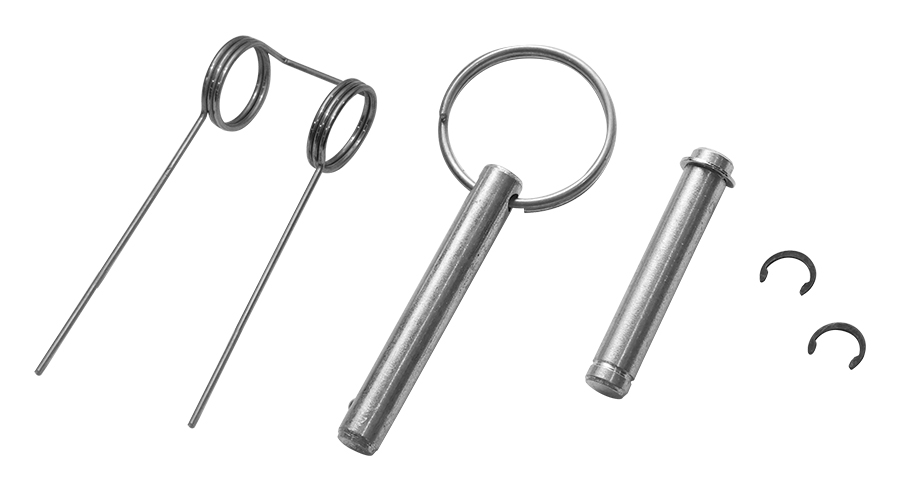

REPAIR KITS: For Latches 15 Tons or Greater

1. Remove old damaged latch kit and discard worn components. Retain Forged Heavy Duty Steel Latch.
2. Open the X100® X-Latch Repair Kit bag and remove and count the contents on a flat and level surface
3. The following items are enclosed:
   • • X-Latch Repair Kits of 5 & 7 Ton:
       • 2 Latch Springs (keep one for future use)
       • 1 Bolt
       • 2 Lock Nuts (keep one for future use)
       • 1 Rapid Release Pin
     • X-Latch Repair Kits of 15 Ton or larger:
       • 2 Latch Springs (keep one for future use)
       • 1 Retaining Pin
       • 4 Retaining Rings (keep two for future use)
       • 1 Rapid Release Pin
     • FORGED HEAVY DUTY STEEL LATCH NOT INCLUDED
4. Place the Spring around the cam of the hook.
5. Place the front bottom end of the Latch into the notched tip of the hook.
6. Align the front top holes of the Latch to the cam holes, tucking the Spring into the underside of the Latch.
7. Insert the Retaining Pin or Bolt through the top of the Latch, through the Spring and cam holes.
8. Snap the Retaining Rings onto each side of the Retaining Pin, OR screw the Lock Nut onto the Bolt until hand tight.
   NOTE: Be sure the Lock Nut is fully engaged with the bolt but do not overtighten.
9. Place the Rapid Release Pin into the bottom of the Latch.
10. Read the X-Latch Warnings & Cautions before use
