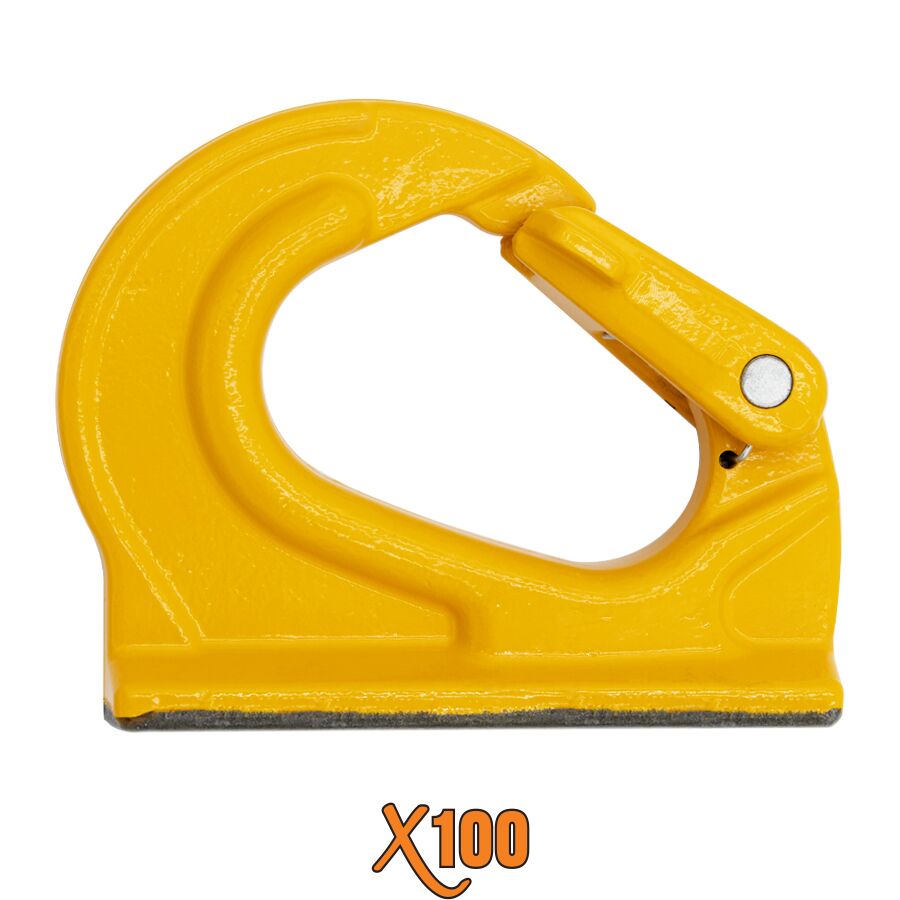

X100® Weld-On Bucket Hook
APPROVED FOR OVERHEAD LIFTING
- Suitable for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Plasticized powder coated yellow gloss finish
- Forged latch
- 100% magnaflux crack detection
- Maximum Working Load Limit is achieved when welding is performed by a qualified welder using a qualified procedure in accordance with American Welding Society.
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | SIZE | DIMENSIONS | WORKING LOAD LIMIT (LBS.) | WEIGHT (LBS.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||||
| XBH1T | 1 Ton | – | – | – | – | – | – | – | 2,000 | 1.7 |
| XBH2T | 2 Tons | 3.62” | 2.64” | 1.00” | 3.19” | 0.92” | 1.35” | 4.40” | 4,000 | 1.9 |
| XBH3T | 3 Tons | 4.17” | 2.89” | 1.13” | 4.45” | 1.25” | 1.42” | 5.08” | 6,000 | 2.7 |
| XBH5T | 5 Tons | 5.24” | 3.70” | 1.48” | 6.17” | 1.73” | 1.72” | 6.87” | 10,000 | 5.5 |
| XBH8T | 8 Tons | 5.37” | 3.70” | 1.41” | 6.31” | 2.01” | 2.00” | 6.97” | 16,000 | 7.25 |
| XBH10T | 10 Tons | 6.67” | 5.40” | 1.90” | 7.90” | 2.15” | 2.07” | 8.47” | 20,000 | 11.45 |
| STOCK NUMBER | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| XBH2T | 3.62” | 2.64” | 1.00” | 3.19” | 0.92” | 1.35” | 4.40” |
| XBH3T | 4.17” | 2.89” | 1.13” | 4.45” | 1.25” | 1.42” | 5.08” |
| XBH5T | 5.24” | 3.70” | 1.48” | 6.17” | 1.73” | 1.72” | 6.87” |
| XBH8T | 5.37” | 3.70” | 1.41” | 6.31” | 2.01” | 2.00” | 6.97” |
| XBH10T | 6.67” | 5.40” | 1.90” | 7.90” | 2.15” | 2.07” | 8.47” |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
