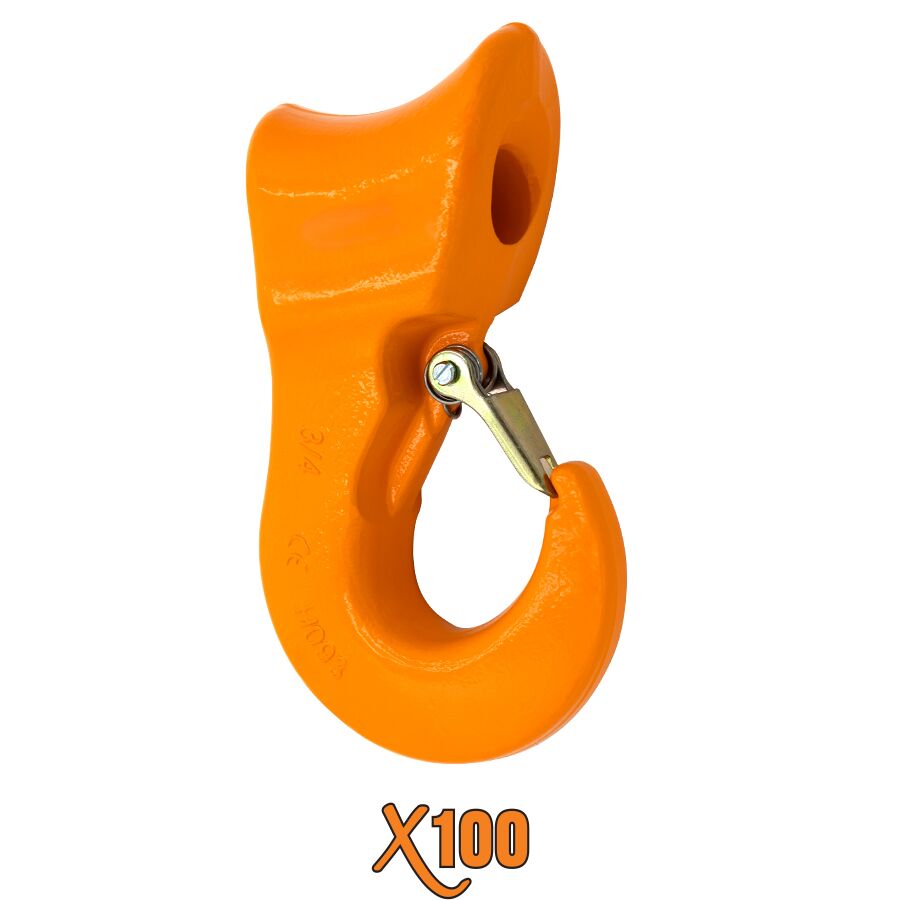

X100® Grade 100 Sliding Choker Hooks with Latch for Wire Rope
APPROVED FOR OVERHEAD LIFTING
- Forged Alloy Steel
- Quenched And Tempered
- Powder Coated HI-VIZ Safety Orange
- 100% Proof Tested At 2 Times The Working Load Limit
- 100% Mag-Particle Crack Detection
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE | STOCK NUMBER | WORKING LOAD LIMIT (LBS) | WEIGHT/PIECE (LBS.) | COMPATIBLE LATCH |
|---|---|---|---|---|
|
3/8″ |
XSLDWR375 | 2,500 | 1.0 | LK6325 |
| 1/2″ | XSLDWR500 | 3,800 | 1.60 | LK6374 |
| 5/8″ | XSLDWR625 | 5,800 | 3.80 | LK6421 |
| 3/4″ | XSLDWR750 | 8,200 | 6.60 | LK6468 |
|
7/8″ – 1″ |
XSLDWR100 | 15,000 | 14.60 | LK6515 |
| STOCK NUMBER | DIMENSIONS | |||||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | |
| XSLDWR500 | 2.240 | 5.030 | 2.960 | 0.870 | 1.320 | 0.790 | 3.290 | 0.750 |
| XSLDWR625 | 2.980 | 6.700 | 3.590 | 0.950 | 1.650 | 1.060 | 4.080 | 0.760 |
| XSLDWR750 | 3.300 | 7.720 | 4.270 | 1.140 | 2.140 | 1.210 | 4.910 | 0.990 |
| XSLDWR100 | 4.450 | 9.910 | 6.070 | 1.430 | 2.590 | 1.670 | 6.050 | 1.250 |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
