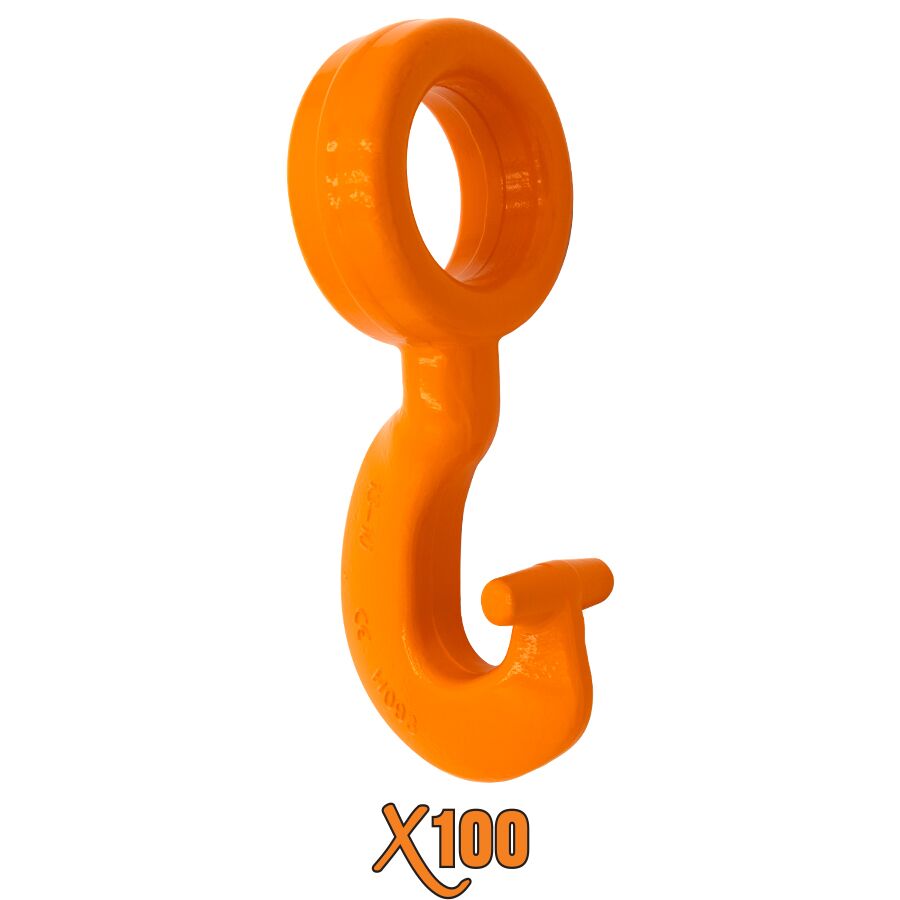

X100® Sliding Choker Hook For Chain
APPROVED FOR OVERHEAD LIFTING
- Forged Alloy Steel
- Quenched And Tempered
- Powder Coated Blaze Orange
- 100% Proof Tested At 2 Times The Working Load Limit
- 100% Mag-Particle Crack Detection
- For use with X100 chain in choker rating
- For use with X100 Omega Link
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | SIZE | WORKING LOAD LIMIT (LBS) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|
| XSLDCH281-312 | 9/32″-5/16″ | 5,700 | 0.95 |
| XSLDCH375 | 3/8″ | 8,800 | 1.80 |
| XSLDCH500 | 1/2″ | 15,000 | 3.50 |
| XSLDCH625 | 5/8″ | 22,600 | 7.80 |

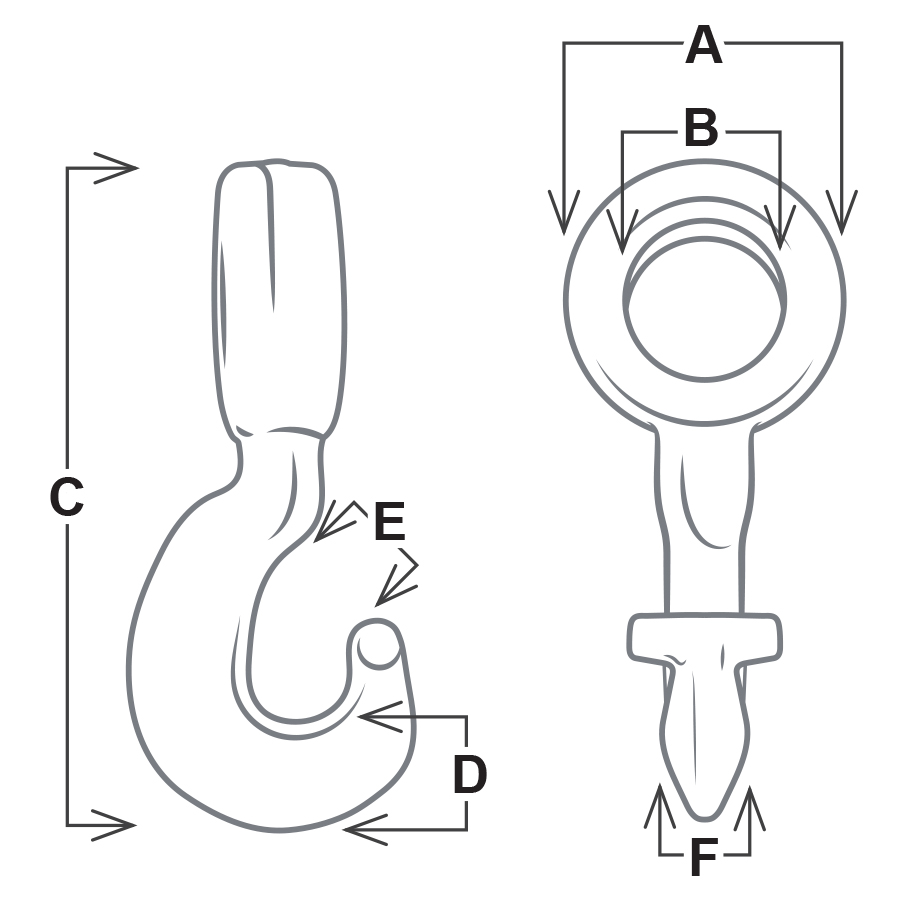

| STOCK NUMBER | DIMENSIONS (IN) | |||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |
| XSLDCH281-312 | 2.070 | 1.180 | 5.070 | 0.800 | 0.660 | 0.680 |
| XSLDCH375 | 2.750 | 1.580 | 6.210 | 1.020 | 0.940 | 0.750 |
| XSLDCH500 | 3.360 | 2.060 | 8.690 | 1.310 | 1.200 | 0.950 |
| XSLDCH625 | 4.270 | 2.580 | 9.610 | 1.790 | 1.200 | 1.290 |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
