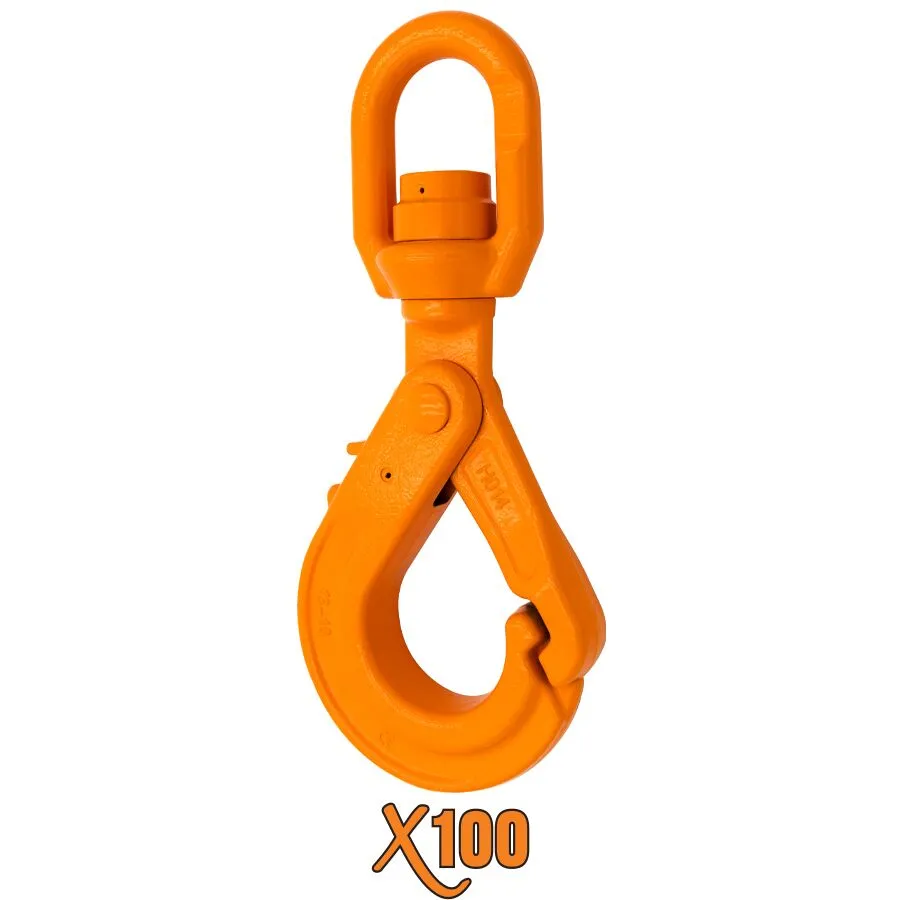

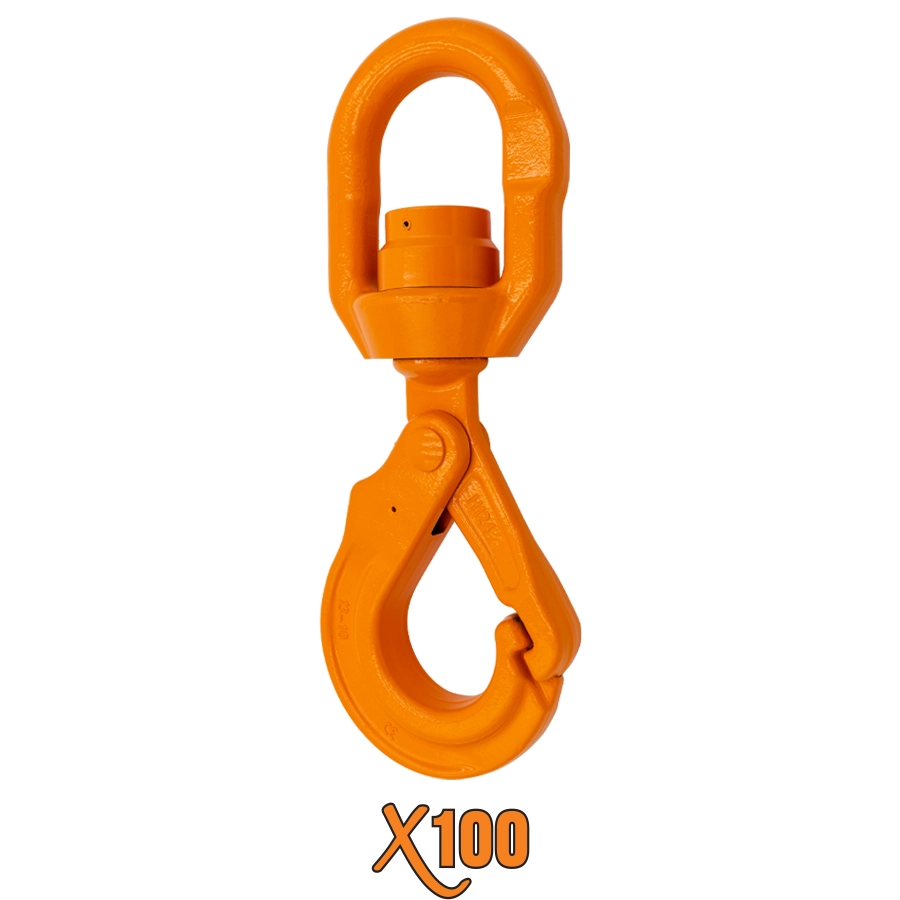

X100® Grade 100 Swivel Self Locking Hook with Ball Bearing
APPROVED FOR OVERHEAD LIFTING
- Approved for Overhead Lifting
- Notched Integrated Latch to Help Avoid Hook Damage
- 100% Forged Alloy Steel
- Quenched and Tempered
- Powder Coated HI-VIZ Safety Orange
- 100% Proof Tested at 2.5 times the Working Load Limit
- 100% Mag-Particle Crack Detection
- Embossed Markings: X100 Brand, Size, Working Load Limit, Conformity, Traceability
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE | STOCK NUMBER | DIMENSIONS | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) | COMPATIBLE TRIGGER KIT | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |||||
| 9/32″ – 5/16″ | XSSL281-312WB | 1.380″ | 1.000″ | 0.500″ | 1.330″ | 0.940″ | 3.700″ | 8.800″ | 5,700 | 2.50 | XTK312 |
| 3/8″ | XSSL375WB | 1.650″ | 1.270″ | 0.590″ | 1.700″ | 1.230″ | 4.500″ | 10.450″ | 8,800 | 4.50 | XTK375 |
| 1/2″ | XSSL500WB | 1.930″ | 1.690″ | 0.690″ | 2.000″ | 1.590″ | 5.520″ | 12.990″ | 15,000 | 8.90 | XTK500 |
| 5/8″ | XSSL625WB | 2.400″ | 2.170″ | 0.850″ | 2.430″ | 1.990″ | 6.710″ | 16.260″ | 22,600 | 15.00 | XTK625 |
| 3/4″ | XSSL750WB | 35,300 | 33.00 | XTK750 | |||||||
Ultimate load is 5 times the Working Load Limit. Replacement Trigger Kits available.

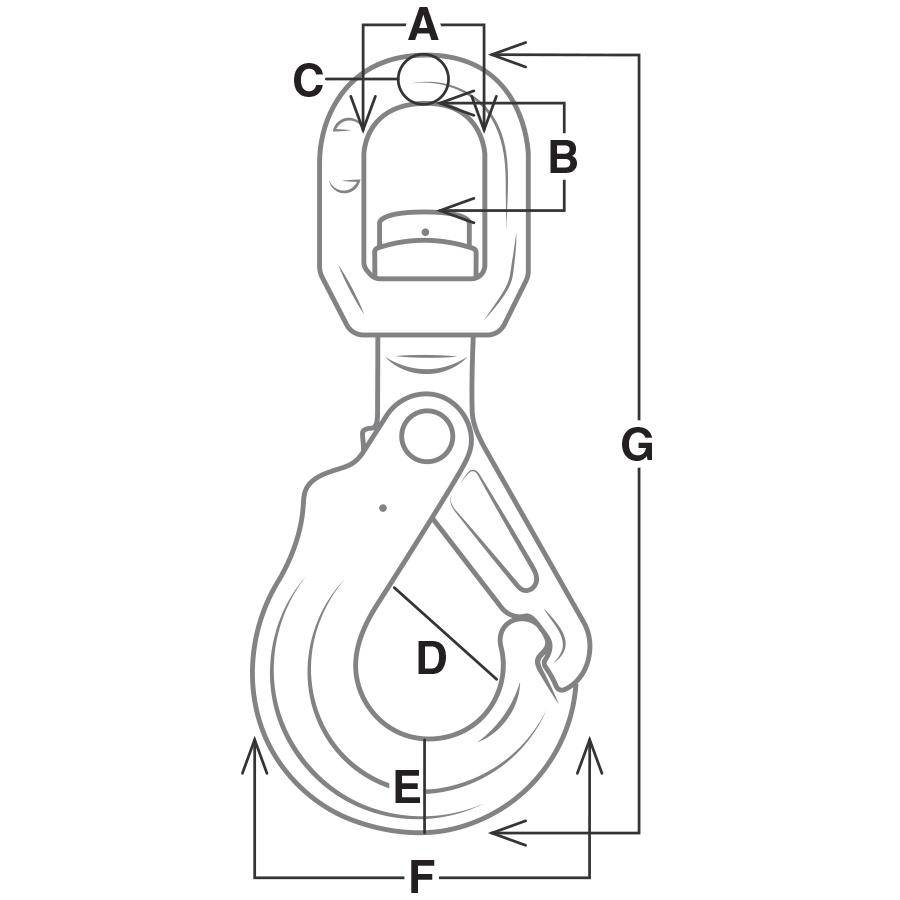

Dimension Reference
| SIZE | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| XSSL281-312WB | 1.380” | 1.000” | 0.500” | 1.330” | 0.940” | 3.700” | 8.800” |
| XSSL375WB | 1.650” | 1.270” | 0.590” | 1.700” | 1.230” | 4.500” | 10.450” |
| XSSL500WB | 1.930” | 1.690” | 0.690” | 2.000” | 1.590” | 5.520” | 12.990” |
| XSSL625WB | 2.400” | 2.170” | 0.850” | 2.430” | 1.990” | 6.710” | 16.260” |
Markings
Ball Bearing
