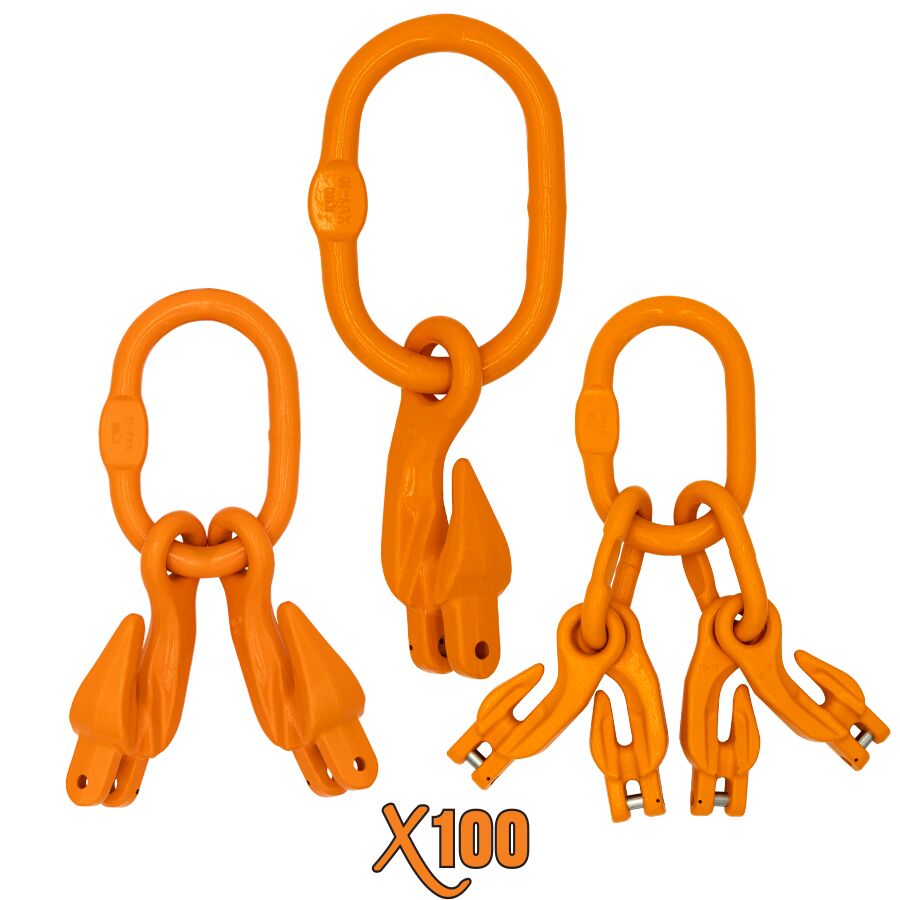

X100® Grade 100 Master Link With Adjusters
DESIGNED & SUITABLE FOR OVERHEAD LIFTING
- Designed & Suitable for Overhead Lifting
- Forged Alloy Steel
- Quenched & Tempered
- Powder Coated X100 BLAZE ORANGE
- 100% Proof Tested At 2X the Working Load Limit
- 100% Mag-Particle Crack Detection
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
FOR SINGLE LEG CHAIN SLINGS
| CHAIN SIZE | STOCK NUMBER | DIMENSIONS | WORKING LOAD LIMIT 4:1 | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 9/32″ – 5/16″ | XV1-7/8 | 0.551″ | 2.75″ | 4.72″ | 5,700 |
| 3/8″ | XV1-10 | 0.669″ | 3.15″ | 5.51″ | 8,800 |
| 1/2″ | XV1-13 | 0.866″ | 3.74″ | 6.29″ | 15,000 |
| 5/8″ | XV1-16 | 0.984″ | 4.33″ | 7.48″ | 22,600 |
FOR DOUBLE LEG CHAIN SLINGS
| SIZE | STOCK NUMBER | DIMENSIONS | WORKING LOAD LIMIT 4:1 | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 9/32″-5/16″ | XV2-7/8 | 0.669″ | 3.15″ | 5.15″ | 9,900 lbs. |
| 3/8″ | XV2-10 | 0.866″ | 3.74″ | 6.29″ | 15200 lbs. |
| 1/2″ | XV2-13 | 0.984″ | 4.33″ | 7.48″ | 26000 lbs. |
| 5/8″ | XV2-16 | 1.26″ | 5.11″ | 9.05″ | 39100 lbs. |
FOR TRIPLE AND QUADRUPLE LEG CHAIN SLINGS
| SIZE | STOCK NUMBER | DIMENSIONS | WORKING LOAD LIMIT 4:1 | ||
|---|---|---|---|---|---|
| A | B | C | |||
| 9/32″-5/16″ | XV4-7/8 | 0.669″ | 3.15″ | 5.51″ | 14,800 lbs. |
| 3/8″ | XV4-10 | 0.866″ | 3.74″ | 6.29″ | 22,900 lbs. |
| 1/2″ | XV4-13 | 0.984″ | 4.33″ | 7.48″ | 39,000 lbs. |
| 5/8″ | XV4-16 | 1.26″ | 5.11″ | 9.05″ | 58,700 lbs. |
For Triple-Leg Adjustable Slings, simply cut off one adjuster from the Quad-Leg Assembly without damaging the sub link.
When re-certifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.
Warning: Adjuster hook is not to be used in a basket application. Adjuster hook should only be used for leg length adjustment.
| STOCK NUMBER | DIMENSIONS | ||
|---|---|---|---|
| A | B | C | |
| XV1-7/8i | 0.551” | 2.75” | 4.72” |
| XV1-10i | 0.669” | 3.15” | 5.51” |
| XV1-13i | 0.866” | 3.74” | 6.29” |
| XV1-16i | 0.984” | 4.33” | 7.48” |
| STOCK NUMBER | DIMENSIONS | ||
|---|---|---|---|
| A | B | C | |
| XV2-7/8i | 0.669” | 3.15” | 5.15” |
| XV2-10i | 0.866” | 3.74” | 6.29” |
| XV2-13i | 0.984” | 4.33” | 7.48” |
| XV2-16i | 1.26” | 5.11” | 9.05” |
| STOCK NUMBER | DIMENSIONS | ||
|---|---|---|---|
| A | B | C | |
| XV4-7/8i | 0.669” | 3.15” | 5.15” |
| XV4-10i | 0.866” | 3.74” | 6.29” |
| XV4-13i | 0.984″ | 4.33” | 7.48” |
| XV4-16i | 1.26” | 5.11” | 9.05” |
When re-certifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.
