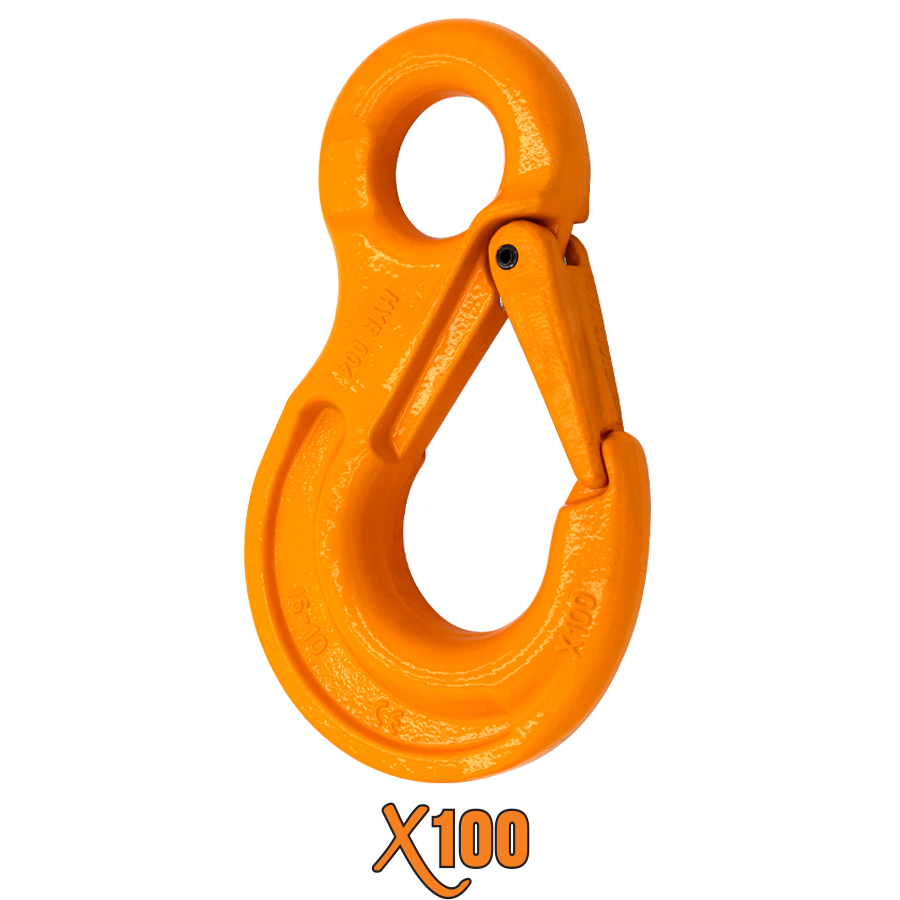

X100® Grade 100 Eye Sling Hook With Latch
APPROVED FOR OVERHEAD LIFTING
- Approved for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Powder coated HI-VIZ safety orange
- 100% proof tested at 2 times the working load limit
- 100% mag-particle crack detection
- Forged Latch Kit (up to ½” Size)
- Cast latch (5/8 and above)
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions

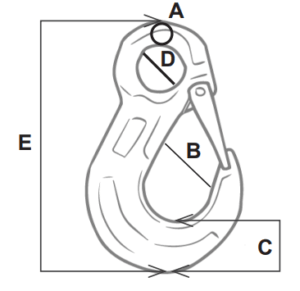

| SIZE | STOCK NUMBER | DIMENSIONS | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) | COMPATIBLE LATCH | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||||
| 9/32″ – 5/16″ | XES281-312 | 0.43″ | 0.98″ | 1.08″ | 4.45″ | 0.98″ | 5,700 | 1.65 | XLK281-312 |
| 3/8″ | XES375 | 0.58″ | 1.16″ | 1.08″ | 6.17″ | 1.22″ | 8,800 | 2.7 | XLK375 |
| 1/2″ | XES500 | 0.78″ | 1.65″ | 1.47″ | 6.31″ | 1.50″ | 15,000 | 5.0 | XLK500 |
| 5/8″ | XES625 | 0.96″ | 1.78″ | 2.30″ | 7.90″ | 2.00″ | 22,600 | 7.8 | XLK625 |
| 3/4″ | XES750 | 35,300 | 15.80 | XLK750 | |||||
| STOCK NUMBER | DIMENSIONS | ||||
|---|---|---|---|---|---|
| A | B | C | D | E | |
| XES281-312 | 0.43” | 0.98” | 1.08” | 4.45” | 0.98” |
| XES375 | 0.58” | 1.16” | 1.08” | 6.17” | 1.22” |
| XES500 | 0.78” | 1.65” | 1.47” | 6.31” | 1.50” |
| XES625 | 0.96” | 1.78” | 2.30” | 7.90” | 2.00” |
| XES750 | 1.08” | 1.97” | 2.30” | 7.90” | 2.13” |
