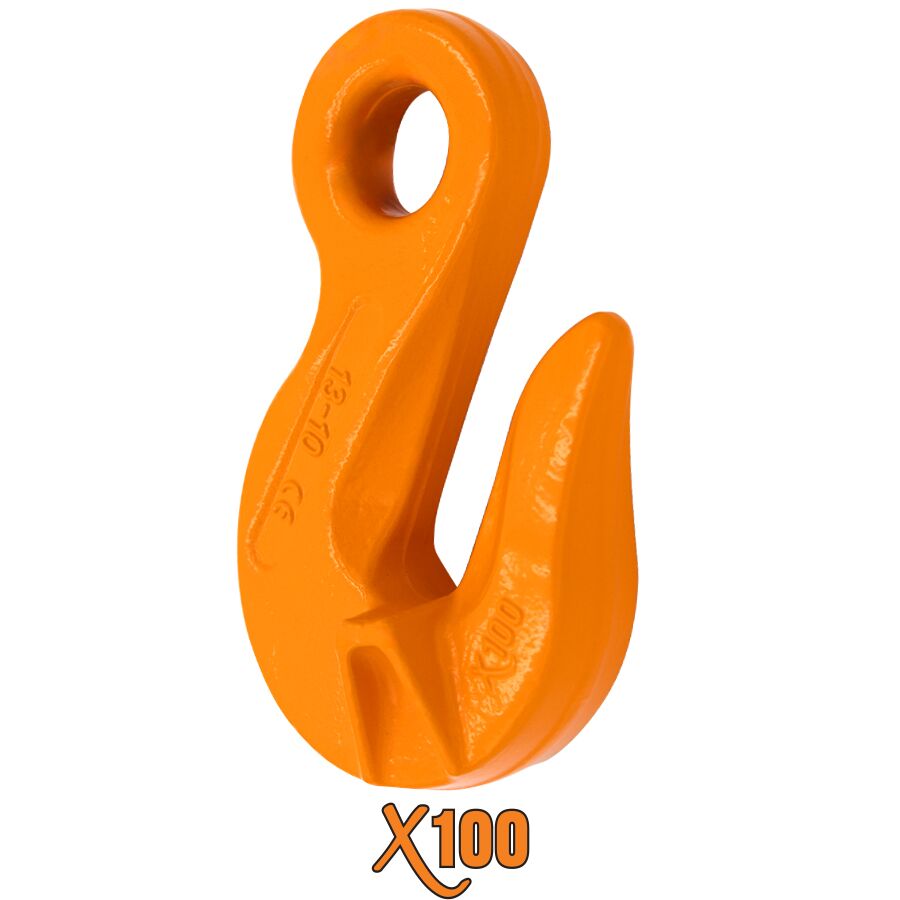

X100® Grade 100 Eye Grab Hook With Cradle
APPROVED FOR OVERHEAD LIFTING
- Approved for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Powder coated HI-VIZ safety orange
- 100% proof tested at 2 times the working load limit
- 100% mag-particle crack detection
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions

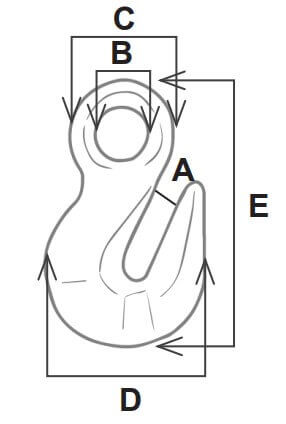

| SIZE | STOCK NUMBER | Working load limit (lbs.) | A | B | C | D | E | Weight (lbs.) |
|---|---|---|---|---|---|---|---|---|
| 9/32″ – 5/16″ | XEG281-312 | 5,700 | 0.37″ | 1.42″ | 0.43″ | 2.09″ | 3.60″ | .7 |
| 3/8″ | XEG375 | 8,800 | 0.47″ | 1.81″ | 0.53″ | 2.83″ | 4.96″ | 1.65 |
| 1/2″ | XEG500 | 15,000 | 0.59″ | 2.32″ | 0.65″ | 3.78″ | 6.44″ | 3.6 |
| 5/8″ | XEG625 | 22,600 | 0.69″ | 2.76″ | 2.76″ | 4.43″ | 7.22″ | 5.45 |
| 3/4″ | XEG750 | 35,300 | 10.42 |
| STOCK NUMBER | DIMENSIONS | ||||
|---|---|---|---|---|---|
| A | B | C | D | E | |
| XCE281-312 | 0.43” | 0.43” | 1.46” | 2.13” | 3.60” |
| XCE375 | 0.51” | 0.85” | 1.91” | 2.83” | 4.93” |
| XCE500 | 0.58” | 1.10” | 2.32” | 3.78” | 6.42” |
| XCE625 | 0.71” | 1.42” | 2.91” | 4.43” | 7.20” |
| XCE750 | 0.90” | 1.72” | 3.52” | 5.28” | 8.90” |
