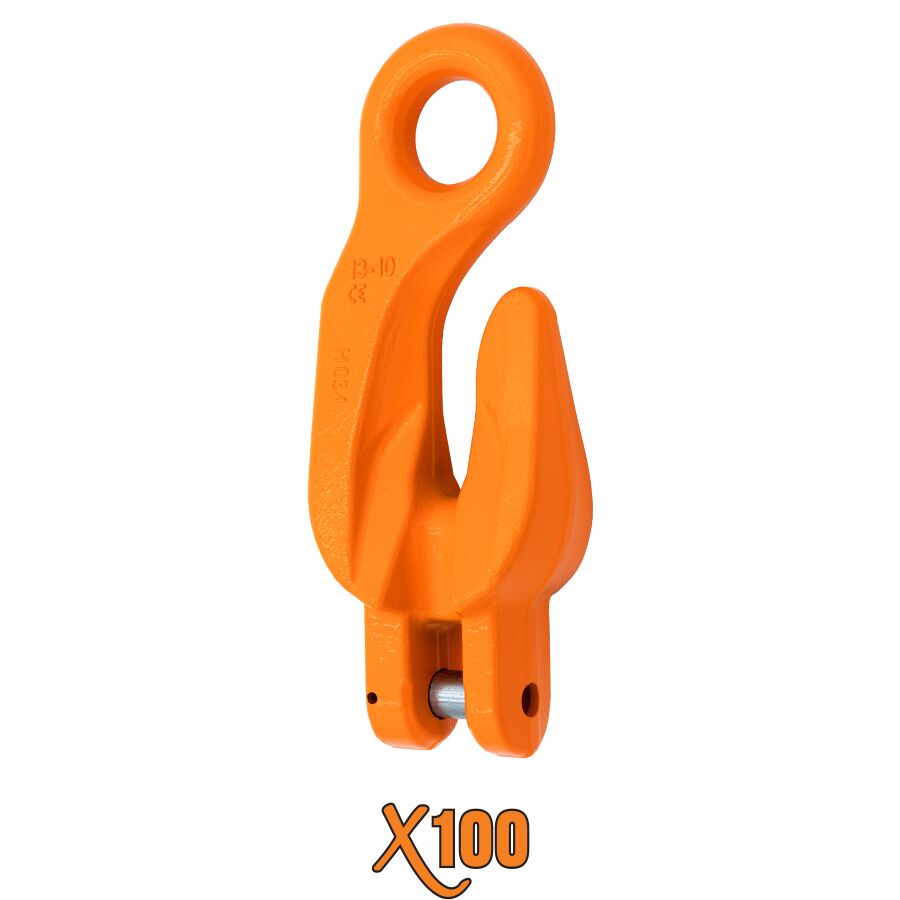

X100® Grade 100 Eye Grab Adjuster Hook
APPROVED FOR OVERHEAD LIFTING
- Approved for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Powder coated HI-VIZ safety orange
- All load pins are 100% individually inspected
- 100% proof tested at 2 times the working load limit
- 100% mag-particle crack detection
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE | STOCK NUMBER | DIMENSIONS | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) | |||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||||
| 9/32″ – 5/16″ | XEG281-312ADJ | 0.94″ | 0.36″ | 1.42″ | 0.39″ | 4.57″ | 5.17″ | 5,700 | 1.6 |
| 3/8″ | XEG375ADJ | 1.18″ | 0.49″ | 1.89″ | 0.49″ | 5.71″ | 7.30″ | 8,800 | 3.0 |
| 1/2″ | XEG500ADJ | 1.42″ | 0.63″ | 2.34″ | 0.61″ | 7.01″ | 8.78″ | 15,000 | 5.25 |
| 5/8″ | XEG625ADJ | 1.77″ | 0.75″ | 2.76″ | 0.75″ | 8.50″ | 10.75″ | 22,600 | 10.0 |
| 3/4″ | XEG750ADJ | 2.20″ | 1.01″ | 3.56″ | 1.38″ | 11.24″ | 13.82″ | 35,300 | 20.1 |
X100 Eye Grab Adjuster Hooks are used in building adjustable chain sling assemblies.
| STOCK NUMBER | DIMENSIONS | |||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | |
| XEG281-312ADJ | 0.94” | 0.36” | 1.42” | 0.39” | 4.57” | 5.17” |
| XEG375ADJ | 1.18” | 0.49” | 1.89” | 0.49” | 5.71” | 7.30” |
| XEG500ADJ | 1.42” | 0.63” | 2.34” | 0.61” | 7.01” | 8.78” |
| XEG625ADJ | 1.77” | 0.75” | 2.76” | 0.75” | 8.50” | 10.75″ |
| XEG750ADJ | 2.20” | 1.01” | 3.56” | 1.38” | 11.24” | 13.82” |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
