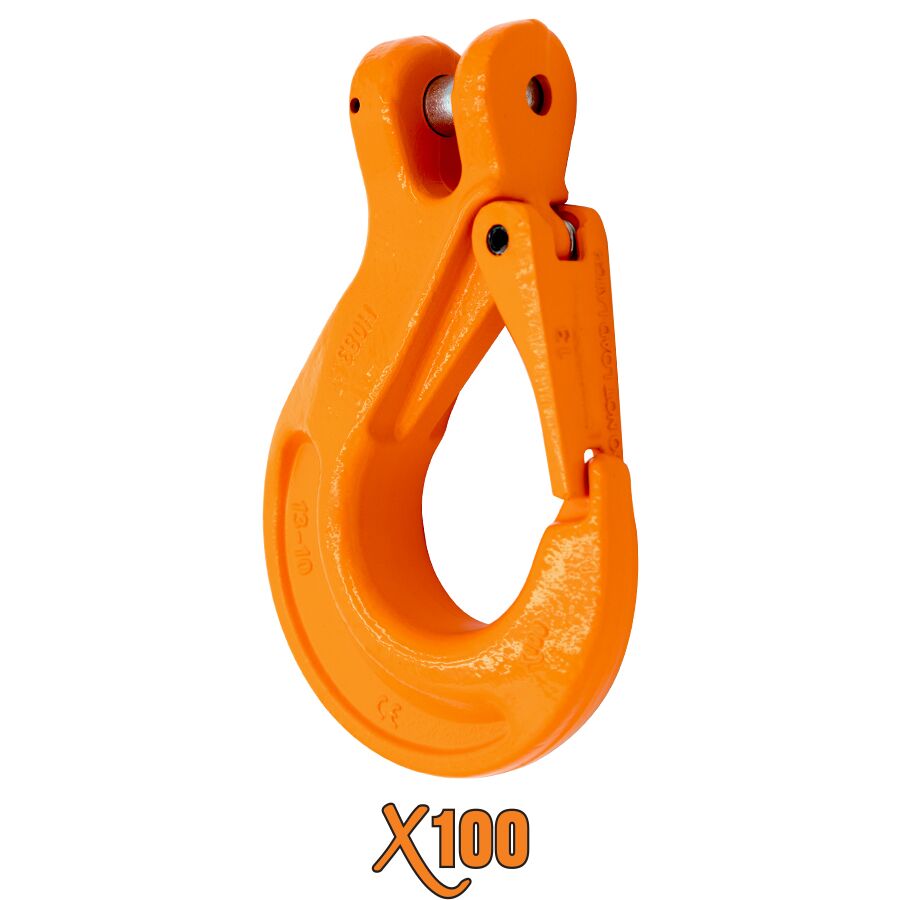

X100® Grade 100 Clevis Sling Hook with Latch
APPROVED FOR OVERHEAD LIFTING
- OSHA compliant for overhead lifting
- Forged Latch Kit (up to ½” Size)
- Forged alloy steel
- Quenched & tempered
- 25% stronger than Grade 80
- Plasticized powder coated orange gloss finish
- All load pins are 100% individually inspected
- 100% proof tested at 2 times the working load limit
- 100% magnaflux crack detection
- Cast latch (5/8 and above)
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions

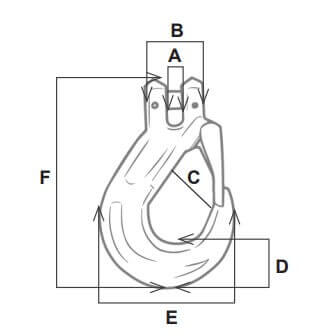

| SIZE | STOCK NUMBER | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) | A | B | C | D | E | F | COMPATIBLE LATCH |
|---|---|---|---|---|---|---|---|---|---|---|
| 9/32″ – 5/16″ | XCS281-312 | 5,700 | 1.6 | 0.37″ | 1.46″ | 0.98″ | 1.08″ | 3.46″ | 5.28″ | XLK281-312 |
| 3/8″ | XCS375 | 8,800 | 3.1 | 0.47″ | 1.89″ | 1.10″ | 1.32″ | 4.15″ | 6.36″ | XLK375 |
| 1/2″ | XCS500 | 15,000 | 5.4 | 0.59″ | 2.32″ | 1.10″ | 1.65″ | 5.28″ | 7.99″ | XLK500 |
| 5/8″ | XCS625 | 22,600 | 8.0 | 0.69″ | 2.76″ | 1.73″ | 1.97″ | 6.32″ | 9.76″ | XLK625 |
| 3/4″ | XCS750 | 35,300 | 16.1 | .98″ | 3.34″ | 1.98″ | 2.36″ | 7.40″ | 11.45″ | XLK750 |
| STOCK NUMBER | DIMENSIONS | Weight (lbs.) | |||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||
| XCS281-312 | 0.37” | 1.46” | 0.98” | 1.08” | 3.46” | 5.28” | 1.6 |
| XCS375 | 0.47” | 1.89” | 1.10” | 1.32” | 4.15” | 6.36” | 3.1 |
| XCS500 | 0.59” | 2.32” | 1.10” | 1.65” | 5.28” | 7.99” | 5.4 |
| XCS625 | 0.69” | 2.76” | 1.73” | 1.97” | 6.32” | 9.76” | 8.0 |
| XCS750 | 0.98” | 3.34” | 1.98” | 2.36” | 7.40” | 11.45” | 16.1 |
