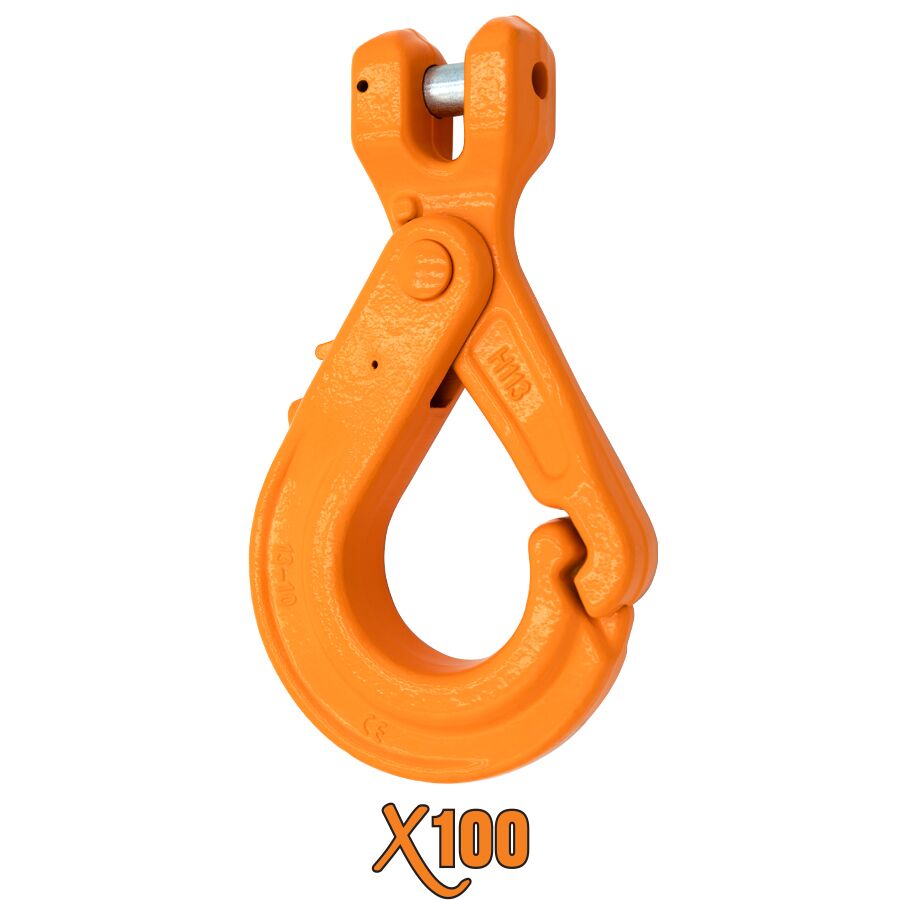

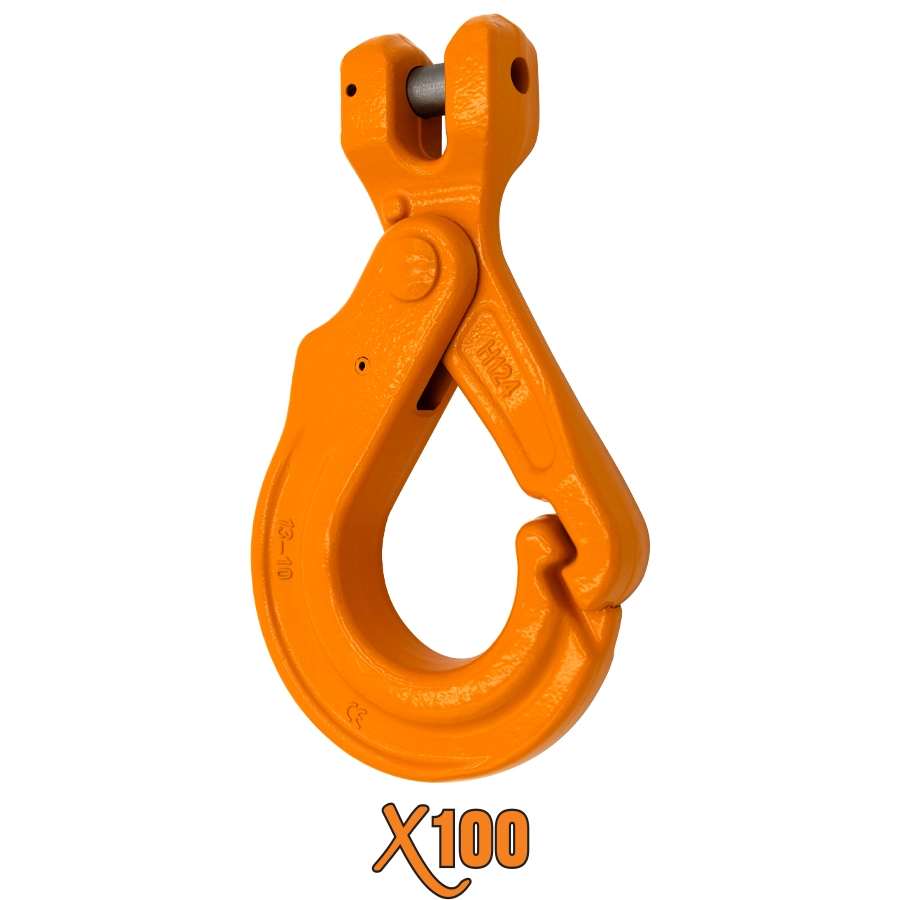

X100® Grade 100 Clevis Self Locking Hook
APPROVED FOR OVERHEAD LIFTING
- Approved for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Powder coated HI-VIZ safety orange
- All load pins are 100% individually inspected and tested
- 100% proof tested at 2 times the working load limit
- 100% mag-particle crack detection
- Replacement Trigger Kits available
- OSHA compliant traceable “X100” marking in raised lettering
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions

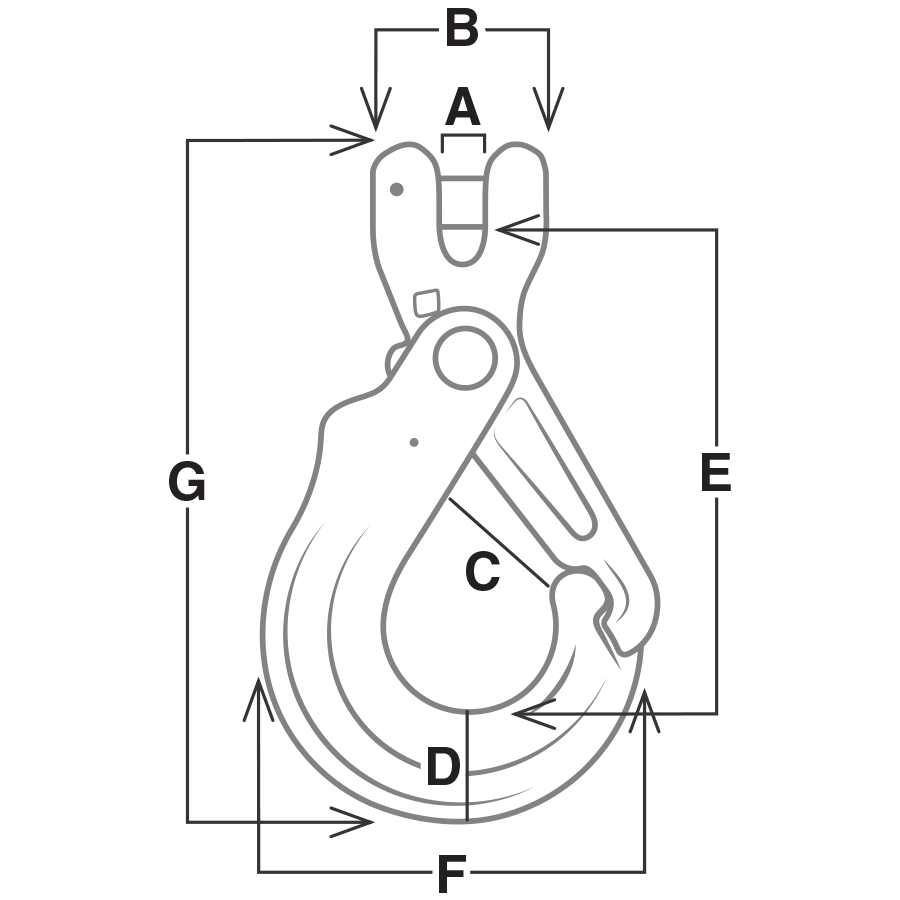

| STOCK NUMBER | SIZE | DIMENSIONS | WORKING LOAD LIMIT (LBS.) | WEIGHT (LBS.) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||||
| XCSL281 | 9/32″ | 0.31” | 1.30” | 1.18” | 0.83” | 3.93” | 2.95” | 5.43” | 4,300 | 2.0 |
| XCSL312 | 5/16” | 0.37” | 1.53” | 1.54” | 0.92” | 4.67” | 3.68” | 6.30” | 5,700 | 2.0 |
| XCSL375 | 3/8″ | 0.47” | 1.92” | 1.93” | 1.23” | 5.80” | 4.43” | 7.95” | 8,800 | 3.55 |
| XCSL500 | 1/2” | 0.59” | 2.41” | 2.03” | 1.59” | 6.85” | 5.45” | 9.61” | 15,000 | 6.2 |
| XCSL625 | 5/8” | 0.73” | 2.91” | 2.71” | 1.85” | 7.95” | 6.80” | 11.22” | 22,600 | 12.8 |
| XCSL750 | 3/4” | 0.98” | 3.35 | 3.01 | 2.44” | 9.25 | 7.58 | 13.29 | 35,300 | 28.0 |
| STOCK NUMBER | DIMENSIONS | ||||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | |
| XCSL281 | 0.31” | 1.30” | 1.18” | 0.83” | 3.93” | 2.95” | 5.43” |
| XCSL312 | 0.37” | 1.53” | 1.54” | 0.92” | 4.67” | 3.68” | 6.30” |
| XCSL375 | 0.47” | 1.92” | 1.93” | 1.23” | 5.80” | 4.43” | 7.95” |
| XCSL500 | 0.59” | 2.41” | 2.03” | 1.59” | 6.85” | 5.45” | 9.61” |
| XCSL625 | 0.73” | 2.91” | 2.71” | 1.85” | 7.95” | 6.80” | 11.22” |
| XCSL750 | 0.98” | 3.35 | 3.01 | 2.44” | 9.25 | 7.58 | 13.29 |
- Notched tip to help avoid hook damage
- Forged directly into the hook
- Incorporated into all X100 self-locking hooks
