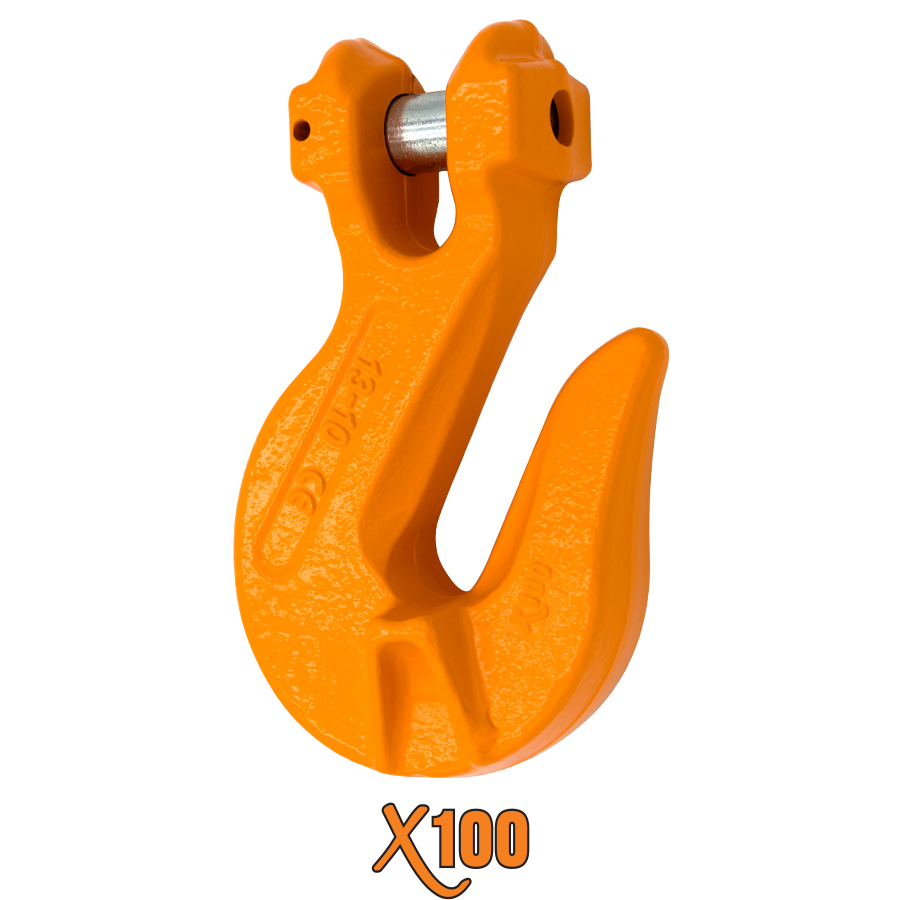

X100® Grade 100 Clevis Grab Hook With Cradle
APPROVED FOR OVERHEAD LIFTING
- Approved for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Powder coated HI-VIZ safety orange
- All load pins are 100% individually inspected
- 100% proof tested at 2 times the working load limit
- 100% mag-particle crack detection
- Double retaining pin designed for reduced pin wear
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions

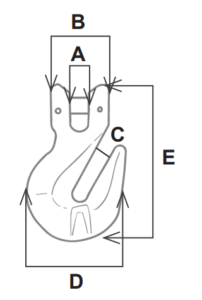

| STOCK NUMBER | SIZE | DIMENSIONS | WORKING LOAD LIMIT (LBS.) | WEIGHT (LBS.) | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | ||||
| XCG281 | 9/32″ | 0.31” | 1.30” | 0.35” | 1.77” | 3.03” | 4,300 | 0.92 |
| XCG312 | 5/16” | 0.37” | 1.42” | 0.43” | 2.09” | 3.70” | 5,700 | 0.96 |
| XCG375 | 3/8″ | 0.47” | 1.87” | 0.53” | 2.89” | 5.03” | 8,800 | 1.82 |
| XCG500 | 1/2” | 0.59” | 2.32” | 0.65” | 3.78” | 6.44” | 15,000 | 4.8 |
| XCG625 | 5/8″ | 0.72” | 2.76” | 0.76” | 4.43” | 7.22” | 22,600 | 7.5 |
| STOCK NUMBER | DIMENSIONS | ||||
|---|---|---|---|---|---|
| A | B | C | D | E | |
| XCG281 | 0.31” | 1.30” | 0.35” | 1.77” | 3.03” |
| XCG312 | 0.37” | 1.42” | 0.43” | 2.09” | 3.70” |
| XCG375 | 0.47” | 1.87” | 0.53” | 2.89” | 5.03” |
| XCG500 | 0.59” | 2.32” | 0.65” | 3.78” | 6.44” |
| XCG625 | 0.72” | 2.76” | 0.76” | 4.43” | 7.22” |
| XCG750 | 0.90” | 3.30” | 0.91” | 5.32” | 8.90” |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
