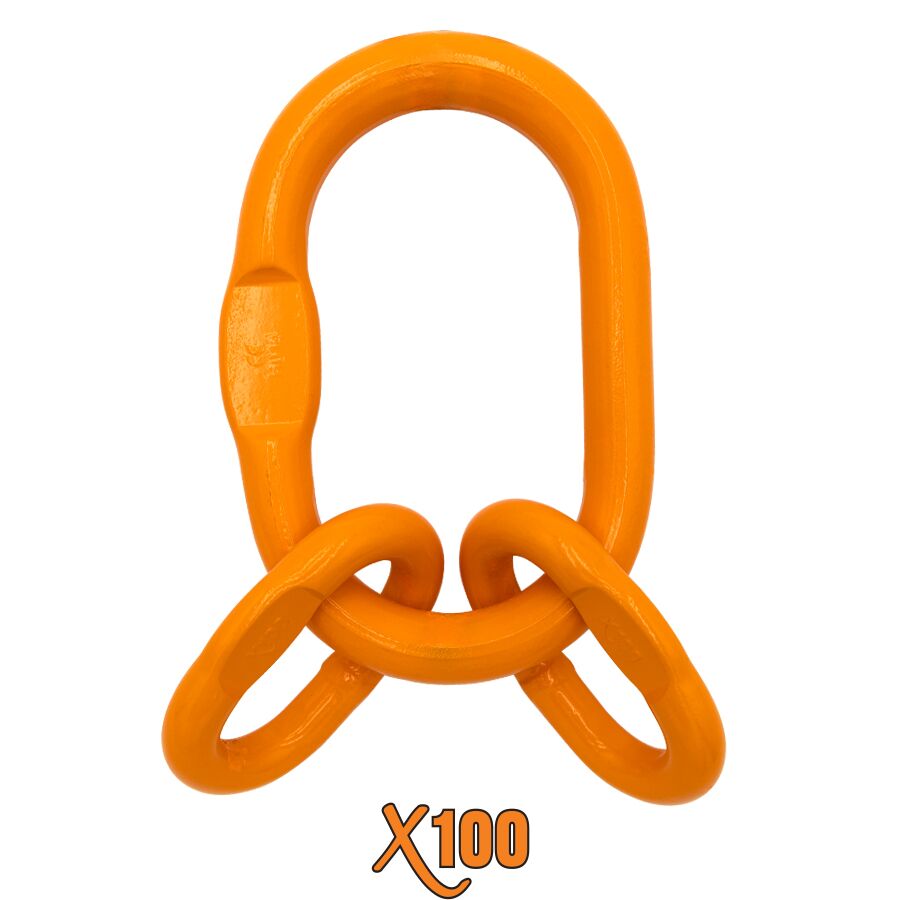

X100® G100 Master Link Sub Assembly
APPROVED FOR OVERHEAD LIFTING
- Approved for overhead lifting
- Forged alloy steel
- Quenched & tempered
- Powder coated HI-VIZ safety orange
- 100% proof tested at 2 times the working load limit
- 100% mag-particle crack detection
- For use in fabricating 3 & 4-Leg chain slings

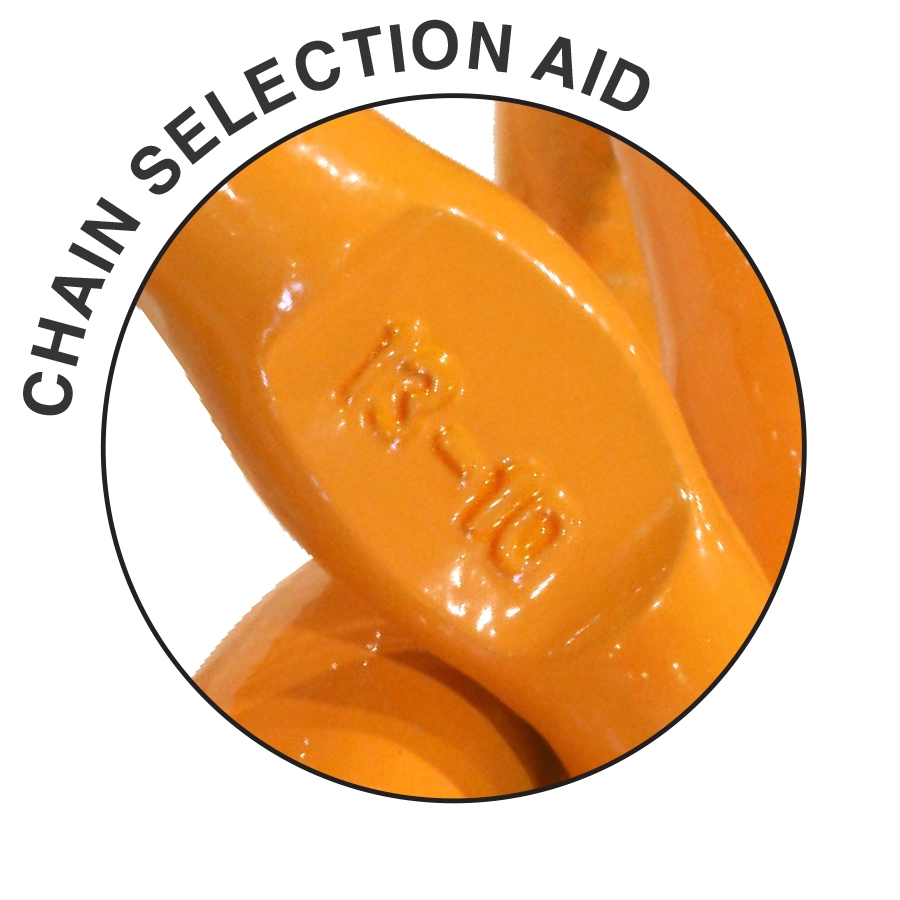

- Main master link with engineered flat spot
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | SIZE | CHAIN SIZE | DIMENSIONS | WORKING LOAD LIMIT | |||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||||
| XMLSA19 | 3/4” | 9/32” | .75” | 2.77” | 5.31” | .51” | 1.54” | 3.26” | 11,200 lbs. |
| XMLSA22 | 7/8” | 5/16” | .91” | 3.54” | 6.30” | .65″ | 1.54” | 3.26” | 15,200 lbs. |
| XMLSA26 | 1” | 3/8” | 1.06” | 3.62” | 7.21” | .75″ | 2.15” | 4.00” | 26,000 lbs. |
| XMLSA32 | 1 1/4” | 1/2” | 1.30” | 4.33” | 8.78” | .91″ | 2.26” | 4.00” | 39,000 lbs. |
| XMLSA38 | 1 1/2 | 5/8” | 1.50” | 5.51” | 10.70” | 1.06″ | 4.06” | 7.20” | 61,000 lbs. |
First drawing (A-C) indicates master link. Second drawing (D-F) indicated sublinks.
When re-certifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.
| DIMENSIONS | |||||
|---|---|---|---|---|---|
| A | B | C | D | E | F |
| .75” | 2.77” | 5.31” | .51” | 1.54” | 3.26” |
| .91” | 3.54” | 6.30” | .65″ | 1.54” | 3.26” |
| 1.06” | 3.62” | 7.21” | .75″ | 2.15” | 4.00” |
| 1/2” | 1.30” | 4.33” | 8.78” | .91″ | 2.26” |
| 1.50” | 5.51” | 10.70” | 1.06″ | 4.06” | 7.20” |
When re-certifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.
