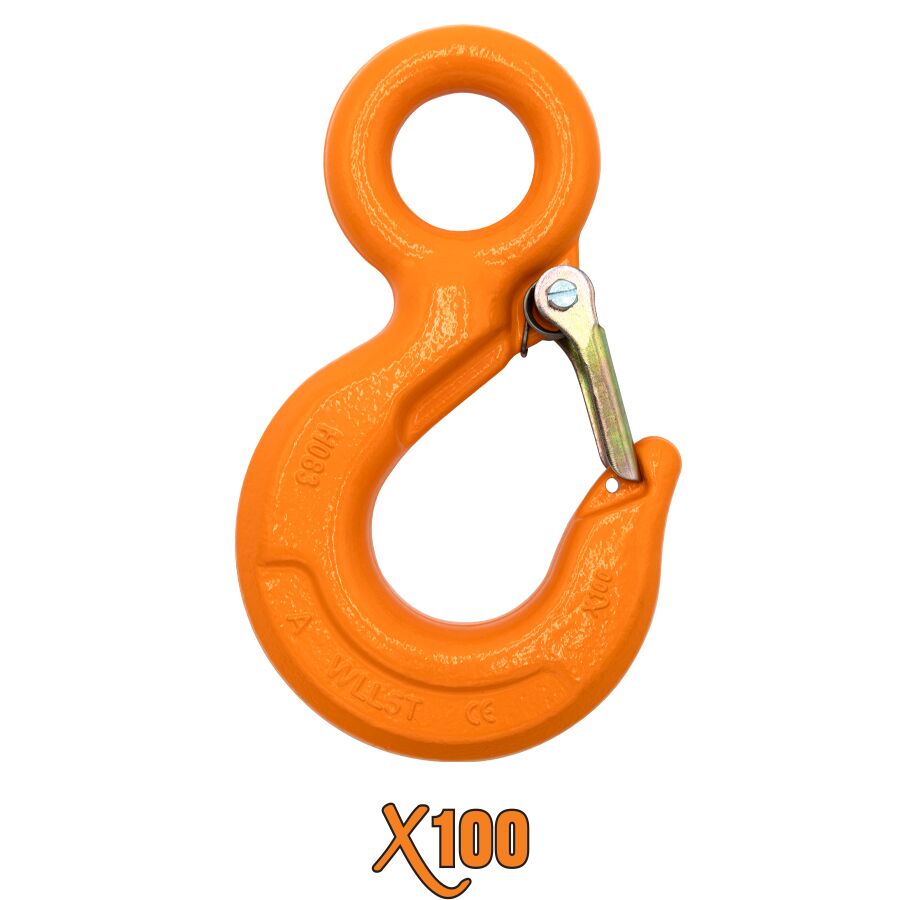

X100® Grade 100 Fixed Eye Hoist Hook with Latch
APPROVED FOR OVERHEAD LIFTING
- Approved for overhead lifting
- Forged alloy steel
- Quenched and Tempered
- Powder Coated HI-VIZ safety Orange
- 100% proof tested at 2.5 times the working load limit
-
100% mag-particle crack detection
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions

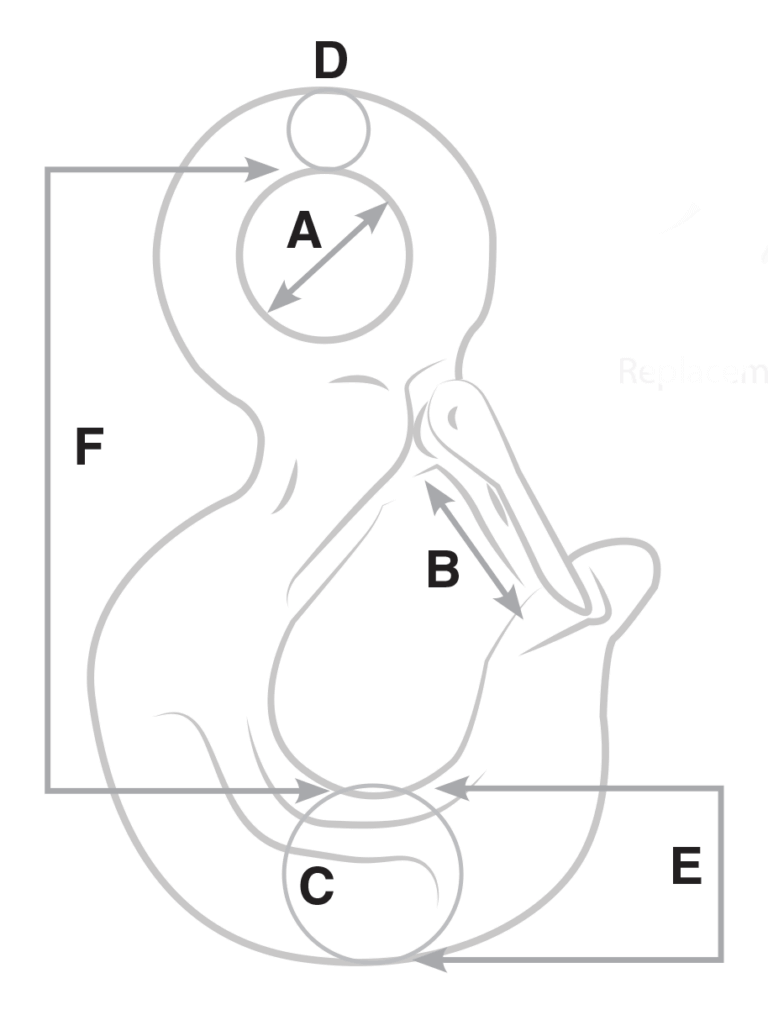

| STOCK NUMBER | WORKING LOAD LIMIT (TONS) | WEIGHT/PIECE (LBS.) | DIMENSIONS | COMPATIBLE LATCH | |||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | ||||
| XEHH100 | 1 | 0.75 | LK6325 | ||||||
| XEHH150 | 1.5 | 0.90 | .85 | .88 | .72 | .46 | .97 | 3.64 | LK6374 |
| XEHH200 | 2 | 1.5 | 1.09 | 1.00 | .92 | .53 | 1.07 | 3.98 | LK6421 |
| XEHH300 | 3 | 2.10 | 1.205 | 1.07 | 1.00 | .70 | 1.33 | 4.56 | LK6468 |
| XEHH500 | 5 | 4.30 | 1.53 | 1.46 | 1.35 | .80 | 1.45 | 5.73 | LK6515 |
| XEHH700 | 7 | 8.30 | 2.00 | 1.67 | 1.64 | .99 | 1.81 | 7.10 | LK6562 |
| XEHH1100 | 11 | 15.0 | 2.43 | 2.12 | 1.95 | 1.17 | 2.26 | 8.98 | LK6609 |
| XEHH1500 | 15 | 21.6 | LK6657 | ||||||
| XEHH2200 | 22 | 36.5 | LK22TONA | ||||||
| XEHH3000 | 30 | 60.5 | – | ||||||
Break testing ensures safety, strength, and reliability. As part of our commitment to safety and quality, the Advantage Sales Quality Team conducts thorough testing on all products, ensuring they meet or exceed industry standards before reaching customers.
With a Working Load Limit (WLL) of 10,000 lbs. and a Minimum Breaking Strength (MBS) of 50,000 lbs., this hook exceeded expectations by breaking at an impressive 61,910 lbs. This result not only surpassed the MBS requirement but also demonstrated a proper break with visible elongation at the pull point, indicating a controlled and predictable break when pushed past the MBS.
Lift it Safely with X100® by Advantage.
