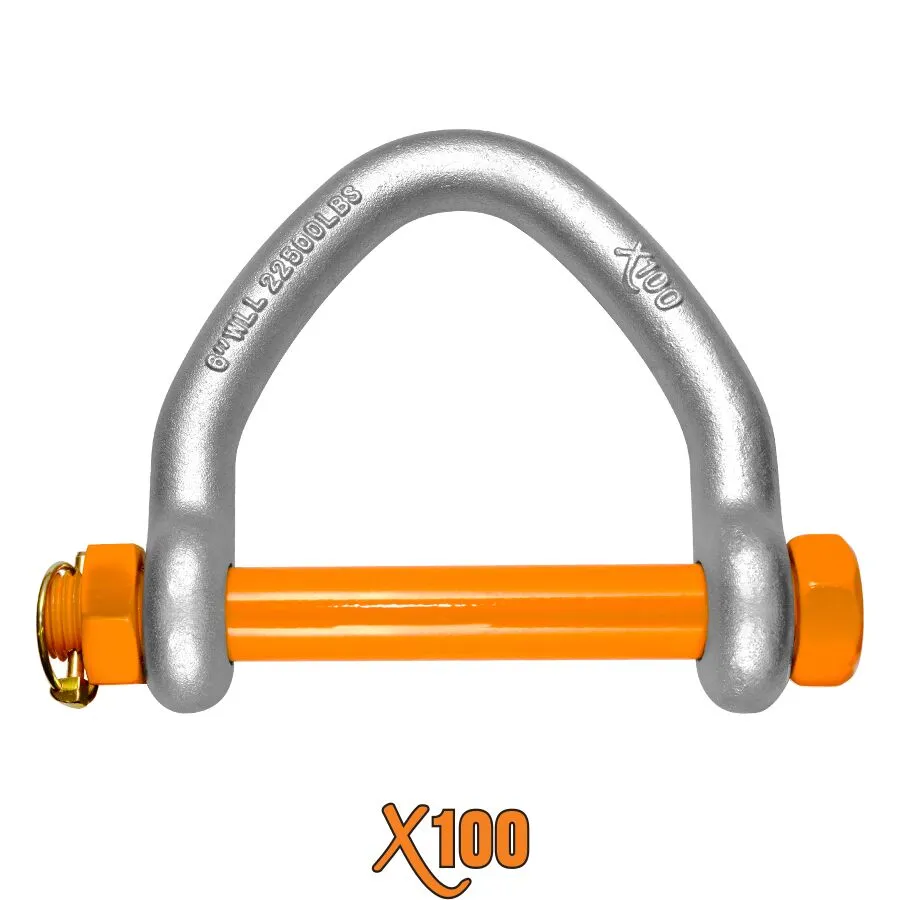

X100® Bolt Type Web Shackle
APPROVED FOR OVERHEAD LIFTING
- Approved for Overhead Lifting
- 100% Forged Alloy Steel
- Quenched & Tempered
- Markings: X100 Brand, Web Size, Working Load Limit
- Hot Dip Galvanized Body and Power Coated BLAZE ORANGE Pin
- Load Must Be Evenly Distributed Over Entire Pin to Achieve Full Working Load Limit
- NEVER Side Load or Point Load Pins or Bodies
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | WEB SIZE | PIN DIAMETER | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) | QTY/BOX |
|---|---|---|---|---|---|
| XWSB3 | 3″ | 0.88″ | 13,500 | 3.0 | 10 |
| XWSB4 | 4″ | 0.87″ | 14,500 | 3.8 | 10 |
| XWSB5 | 5″ | 1.01″ | 19,000 | 6.2 | 8 |
| XWSB6 | 6″ | 1.25″ | 22,500 | 10.4 | 4 |
Ultimate load is 5 times the Working Load Limit.
| DIMENSIONS (IN) | ||||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G |
| 0.88 | 0.80 | 3.26 | 3.05 | 6.16 | 5.44 | 1.95 |
| 0.87 | 0.85 | 3.57 | 3.93 | 7.26 | 5.82 | 1.83 |
| 1.01 | 1.03 | 4.31 | 5.07 | 8.75 | 6.74 | 2.41 |
| 1.25 | 1.16 | 5.20 | 6.12 | 10.36 | 7.98 | 2.66 |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
