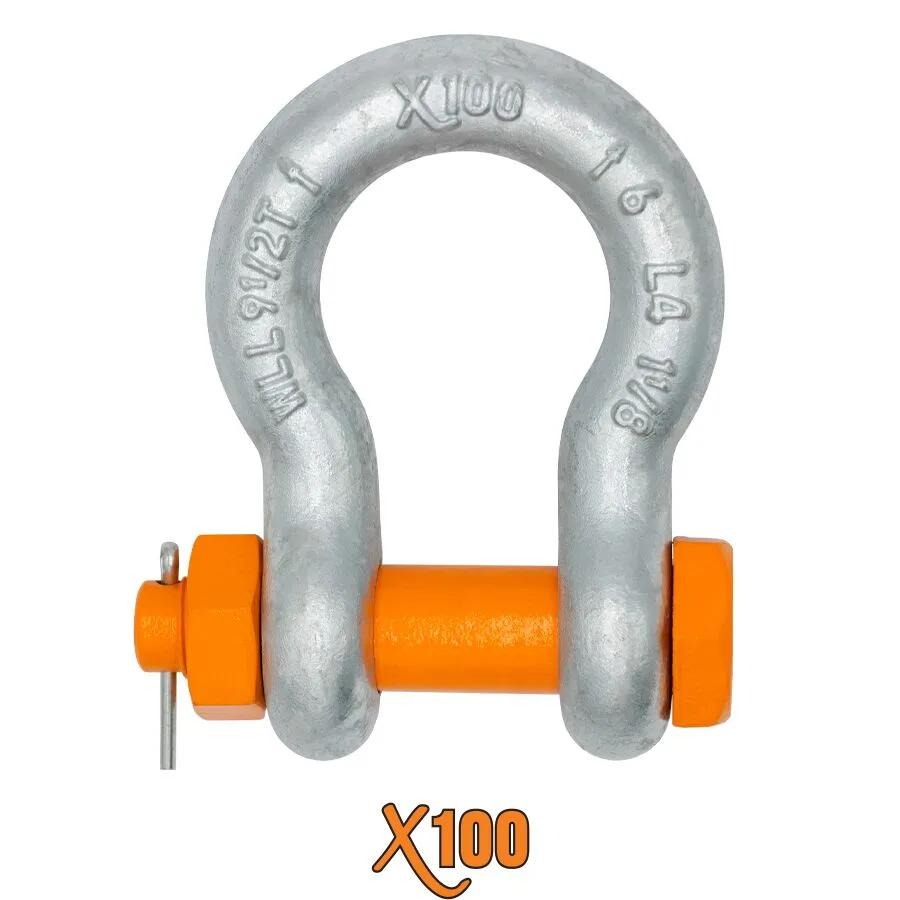

X100® Bolt Type Anchor Shackles
APPROVED FOR OVERHEAD LIFTING
- Approved for Overhead Lifting
- Drop Forged
- Quenched and Tempered
- Carbon Steel Bow with Alloy Oversized Pin
- Pin is Powder Coated Blaze Orange
- Breaking Strength to Working Load Limit Ratio 6:1

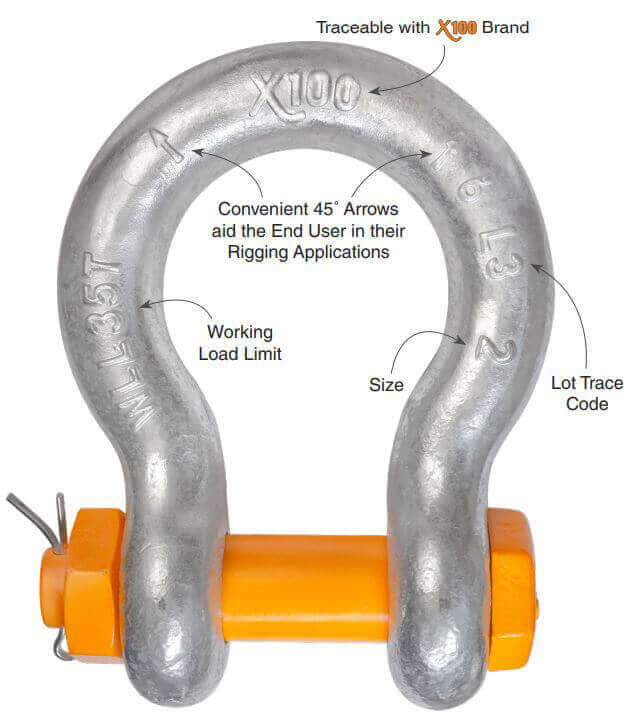

- Embossed Markings: X100 Brand, Size, Working Load Limit, Lot Trace Code
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
DROP FORGED, LOAD RATED, HOT GALVANIZED

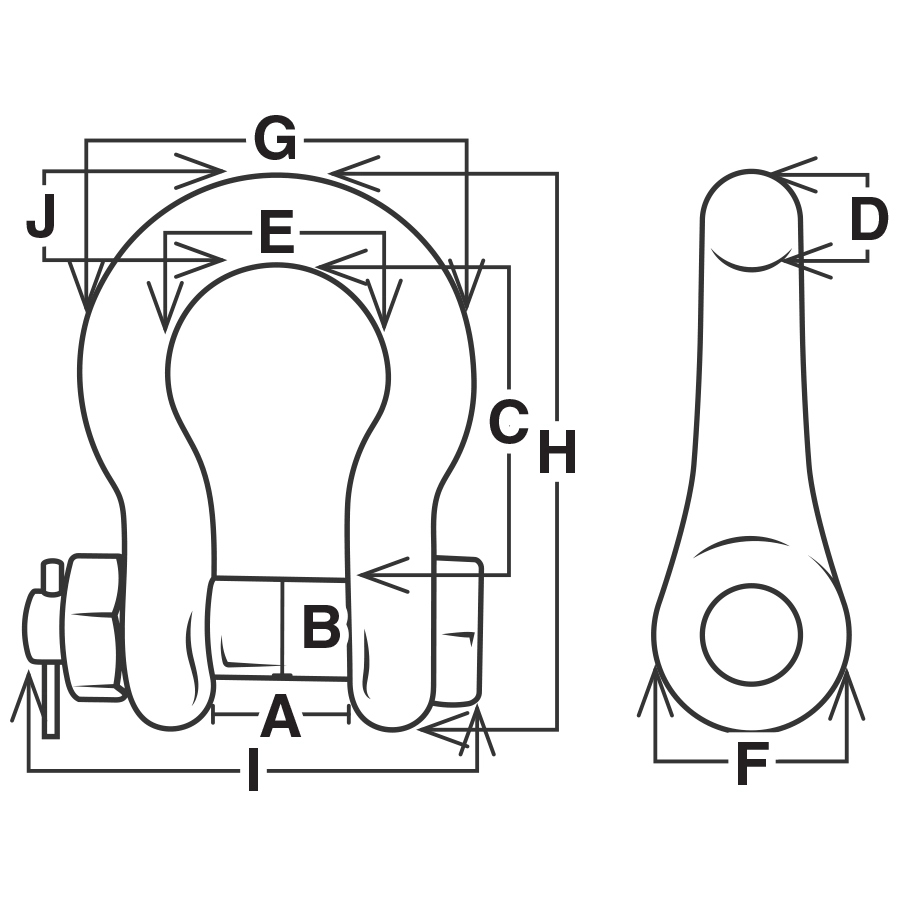

| SIZE | STOCK NUMBER | PIN DIA. (IN.) | DIMENSIONS (IN.) | WORKING LOAD LIMIT (TONS.) | WEIGHT/PIECE (LBS.) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | K | |||||
| 1/2″ | XSAS500 | 5/8 | 0.88 | 0.64 | 1.88 | 0.50 | 1.31 | 1.19 | 2.31 | 3.28 | 2.80 | 0.50 | 2.00 | .92 |
| 5/8″ | XSAS625 | 3/4 | 1.06 | 0.77 | 2.38 | 0.63 | 1.69 | 1.50 | 2.94 | 4.19 | 3.56 | 0.69 | 3.25 | 1.55 |
| 3/4″ | XSAS750 | 7/8 | 1.25 | 0.89 | 2.81 | 0.75 | 2.00 | 1.81 | 3.50 | 4.97 | 4.15 | 0.81 | 4.75 | 2.53 |
| 7/8″ | XSAS875 | 1 | 1.44 | 1.02 | 3.31 | 0.88 | 2.28 | 2.09 | 4.03 | 5.83 | 4.82 | 0.97 | 6.50 | 4.24 |
| 1″ | XSAS100 | 1-1/8 | 1.69 | 1.15 | 3.75 | 1.00 | 2.69 | 2.38 | 4.69 | 6.56 | 5.39 | 1.06 | 8.50 | 5.88 |
| 1-1/8″ | XSAS1125 | 1-1/4 | 1.81 | 1.25 | 4.25 | 1.13 | 2.91 | 2.69 | 5.16 | 7.47 | 5.90 | 1.25 | 9.50 | 7.75 |
| 1-1/4″ | XSAS1250 | 1-3/8 | 2.03 | 1.40 | 4.69 | 1.29 | 3.25 | 3.00 | 5.75 | 8.25 | 6.69 | 1.38 | 12.00 | 11.65 |
| 1-3/8″ | XSAS1375 | 1-1/2 | 2.25 | 1.53 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | 7.21 | 1.50 | 13.50 | 15.15 |
| 1-1/2″ | XSAS1500 | 1-3/4 | 2.38 | 1.66 | 5.75 | 1.53 | 3.88 | 3.63 | 6.88 | 10.00 | 7.73 | 1.62 | 17.00 | 18.75 |
| 1-3/4″ | XSAS1750 | 2 | 2.88 | 2.04 | 7.00 | 1.84 | 5.00 | 4.19 | 8.80 | 12.34 | 9.68 | 2.25 | 25.00 | 30.45 |
| 2″ | XSAS200 | 2-1/4 | 3.25 | 2.30 | 7.75 | 2.08 | 5.75 | 4.81 | 10.15 | 13.68 | 10.81 | 2.40 | 35.00 | 45.70 |
X100 Bolt Type Anchor Shackles are suitable for overhead lifting. According to Federal Specification RR-C-271G, Type
IVA, Grade A, Class 3. Meets ASME B30.26 requirements.
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
