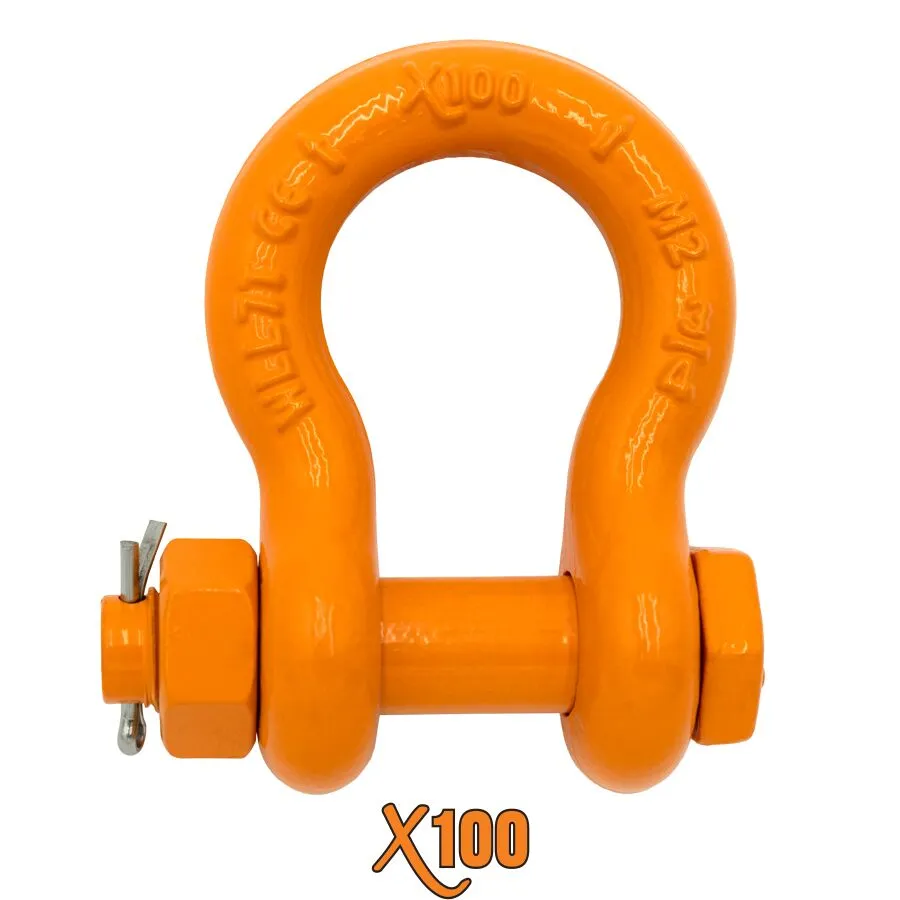

X100® All Alloy Bolt Type Anchor Shackle
APPROVED FOR OVERHEAD LIFTING
-
Approved for Overhead Lifting
-
100% Forged Alloy Steel
-
Quenched & Tempered
-
Easily recognizable X100 BLAZE ORANGE powder coating which provides protection from corrosion, and enables full exposure of identification markings
-
Zinc plated prior to X100 BLAZE ORANGE powder coating provides superior corrosion resistance
-
Markings: X100 Brand, Size, Working Load Limit, Conformity, Traceability, 45° Indicator Arrows*
-
*Convenient 45° arrows aid the end user in their rigging applications (1/2″ and larger)
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
POWDER COATED BLAZE ORANGE
| SIZE | STOCK NUMBER | PIN DIAMETER | WORKING LOAD LIMIT (TON) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|---|
| 1/2″ | XSASA500 | 5/8″ | 3.33 | 0.8 |
| 5/8″ | XSASA625 | 3/4″ | 5.00 | 1.4 |
| 3/4″ | XSASA750 | 7/8″ | 7.00 | 2.4 |
| 7/8″ | XSASA875 | 1″ | 9.50 | 3.6 |
| 1″ | XSASA100 | 1-1/8″ | 12.50 | 5.8 |
| 1-1/8″ | XSASA1125 | 1-1/4″ | 15.00 | 8.0 |
| 1-1/4″ | XSASA1250 | 1-3/8″ | 18.00 | 10.8 |
| 1-3/8″ | XSASA1375 | 1-1/2″ | 21.00 | 14 |
| 1-1/2″ | XSASA1500 | 1-5/8″ | 30.00 | 18.2 |
X100 All Alloy Bolt Type Anchor Shackles are suitable for overhead lifting. According to Federal Specification RR-C271G, Type IVA, Grade B, Class 3. Meets ASME B30.26 requirements.

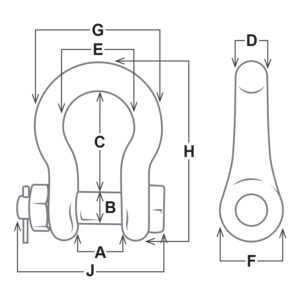

| STOCK NUMBER | DIMENSIONS (IN) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | J | |
| XSASA500 | 0.82 | 0.62 | 1.85 | 0.52 | 1.26 | 1.27 | 2.33 | 3.29 | 2.89 |
| XSASA625 | 1.11 | 0.74 | 2.35 | 0.66 | 1.65 | 1.58 | 2.95 | 4.16 | 4.21 |
| XSASA750 | 1.25 | 0.88 | 2.79 | 0.79 | 1.95 | 1.88 | 3.49 | 4.90 | 4.21 |
| XSASA875 | 1.44 | 1.00 | 3.26 | 0.90 | 2.23 | 2.11 | 4.00 | 5.61 | 4.80 |
| XSASA100 | 1.60 | 1.11 | 3.72 | 1.09 | 2.67 | 2.39 | 4.65 | 6.25 | 5.39 |
| XSASA1125 | 1.83 | 1.28 | 4.26 | 1.16 | 2.87 | 2.64 | 5.17 | 7.10 | 5.98 |
| XSASA1250 | 2.04 | 1.38 | 4.63 | 1.31 | 3.00 | 3.00 | 5.76 | 7.77 | 6.27 |
| XSASA1375 | 2.26 | 1.51 | 5.19 | 1.40 | 3.64 | 3.28 | 6.43 | 8.81 | 7.03 |
| XSASA1500 | 2.26 | 1.65 | 5.81 | 1.58 | 3.80 | 3.62 | 6.56 | 9.60 | 7.63 |
