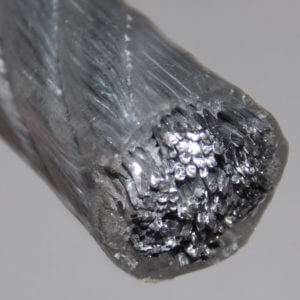

Vinyl Coated Galvanized Aircraft Cable
- Standard reel lengths in stock: 250′, 500′, 1,000′ & 5,000′.
- Vinyl coated cable also available in larger sizes and in stainless steel.
- Made in accordance with Federal Specification RR-W-410D.
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
Specifications
| SIZE | STOCK NUMBER | CONSTRUCTION | WEIGHT/1,000′ | BREAKING STRENGTH |
|---|---|---|---|---|
| 3/64″ – 1/16″ | VCGAC047-062 | 7X7 | 7 lbs. | 270 lbs. |
| 1/16″ – 3/32″ | VCGAC062-093 | 7X7 | 10 lbs. | 480 lbs. |
| 3/32″ – 1/8″ | VCGAC093-125 | 7X7 | 18.5 lbs. | 920 lbs. |
| 3/32″ – 3/16″ | VCGAC093-187 | 7X7 | 25.8 lbs. | 920 lbs. |
| 1/8″ – 3/16″ | VCGAC125-187 | 7X7 | 35.2 lbs. | 1,700 lbs. |
| 3/16″ – 1/4″ | VCGAC187-250 | 7X19 | 77.5 lbs. | 4,200 lbs. |
| 1/4″ – 5/16″ | VCGAC250-312 | 7X19 | 123 lbs. | 7,000 lbs. |
| 5/16″ – 3/8″ | VCGAC312-375 | 7X19 | 197 lbs. | 9,800 lbs. |
| 3/8″ – 7/16″ | VCGAC375-437 | 7X19 | 270 lbs. | 14,400 lbs. |
Standard reel lengths in stock: 250′, 500′, 1,000′ & 5,000′. Vinyl coated cable also available in larger sizes and in stainless steel.
*Vinyl coated cable also available in larger sizes and in stainless steel.
*Made in accordance with Federal Specification RR-W-410Ds
Note: Breaking strength ratings are listed for comparison purposed only. Actual operating loads may vary, but should not exceed the recommended design factor of 20% of the product’s breaking strength.
Constructions

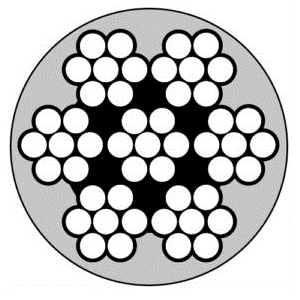

7X7

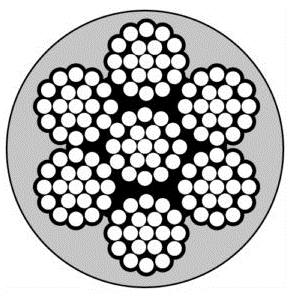

7X19
