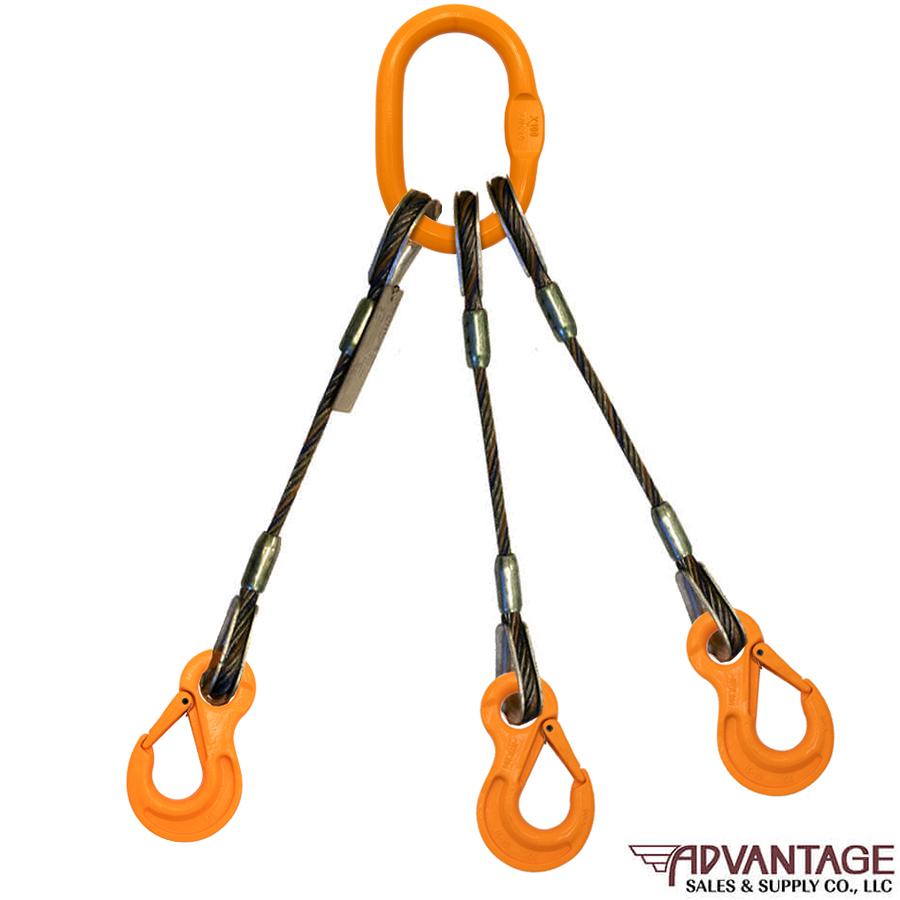

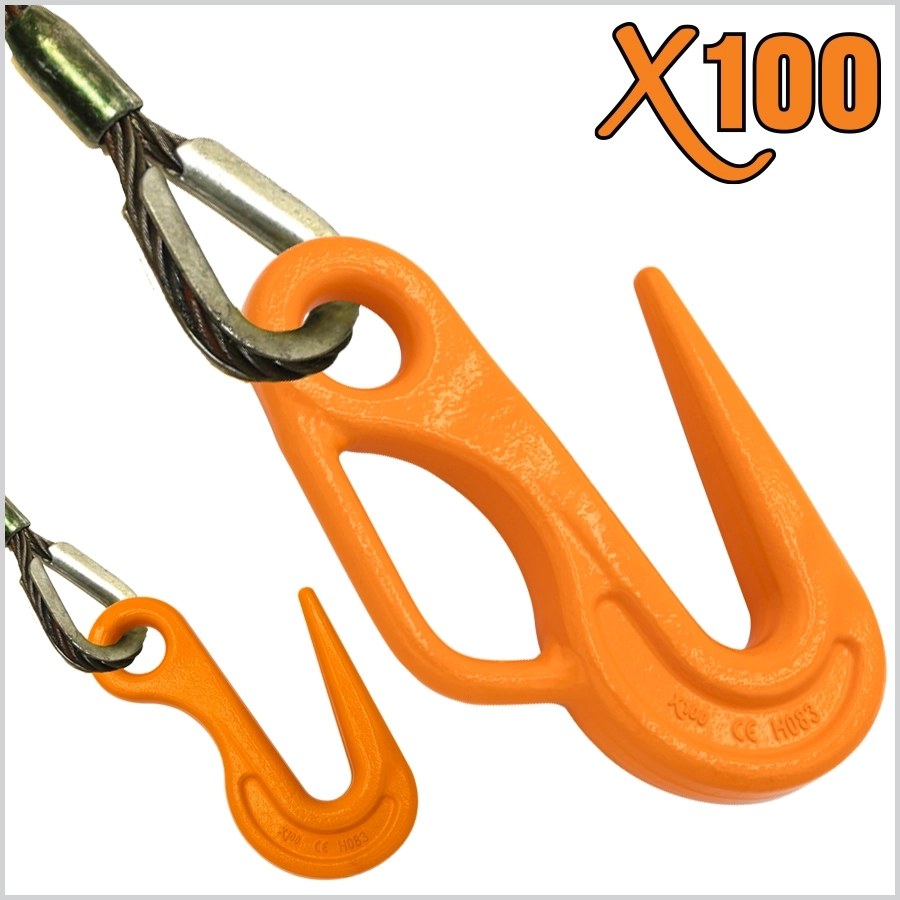

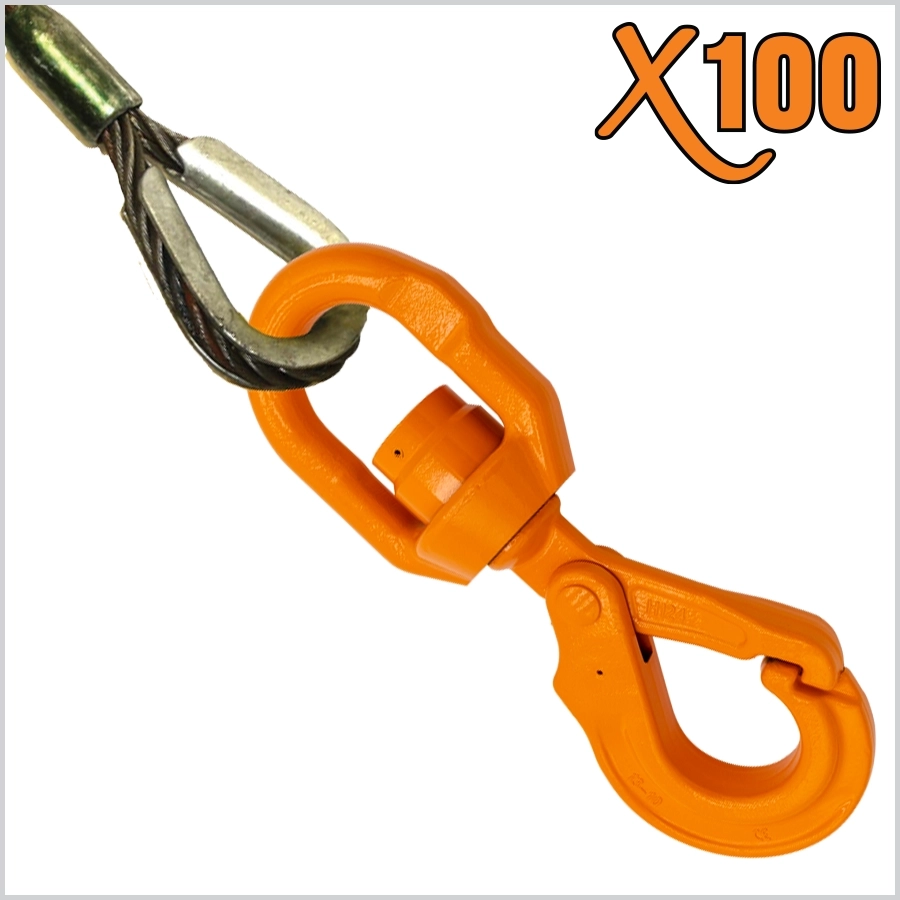

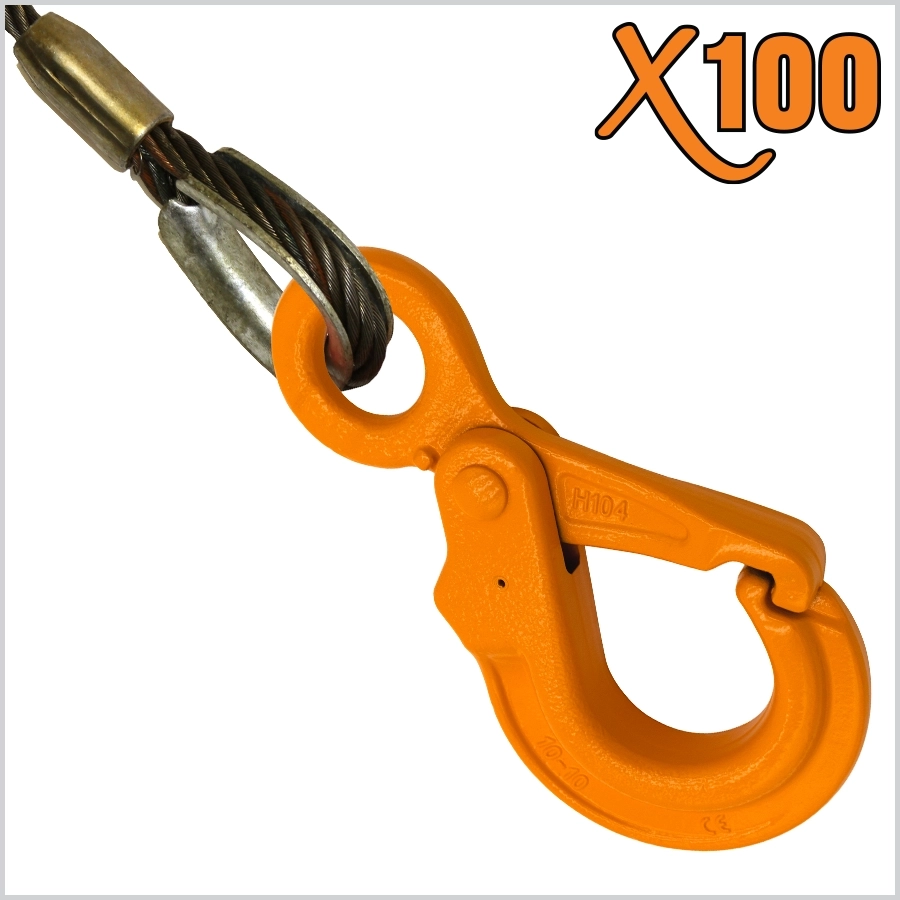

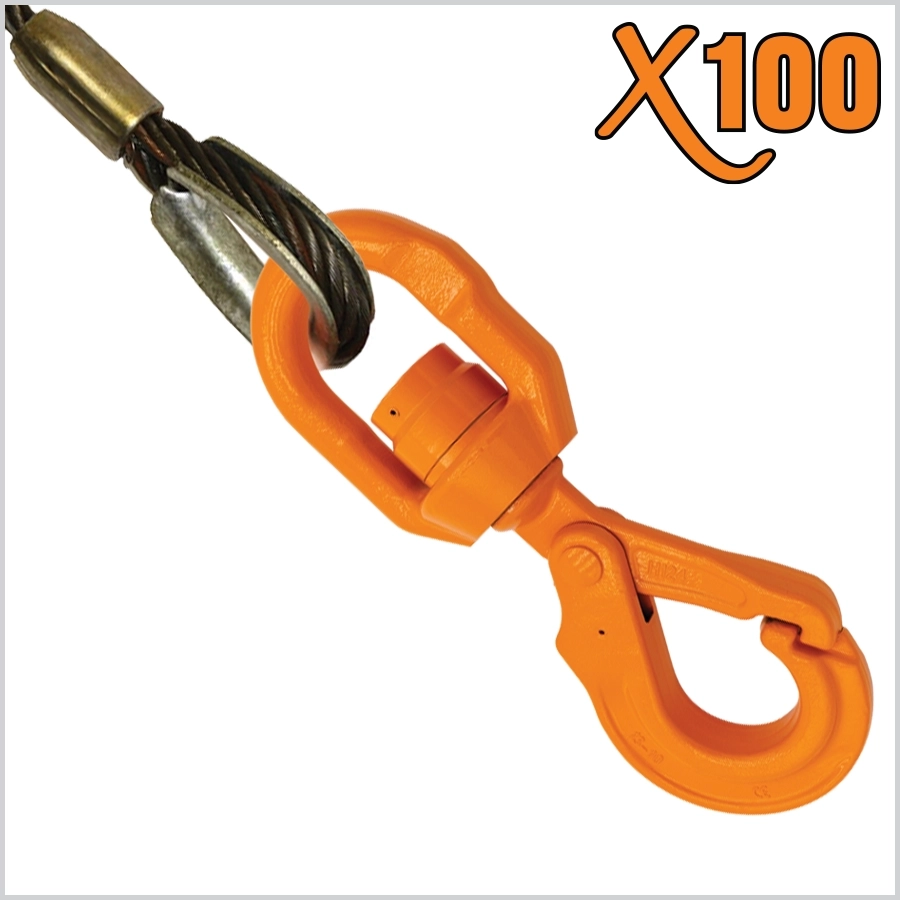

Three-Leg Bridle Wire Rope Slings
| ROPE DIAMETER |
RATED CAPACITY – TONS* EIPS IWRC W/P |

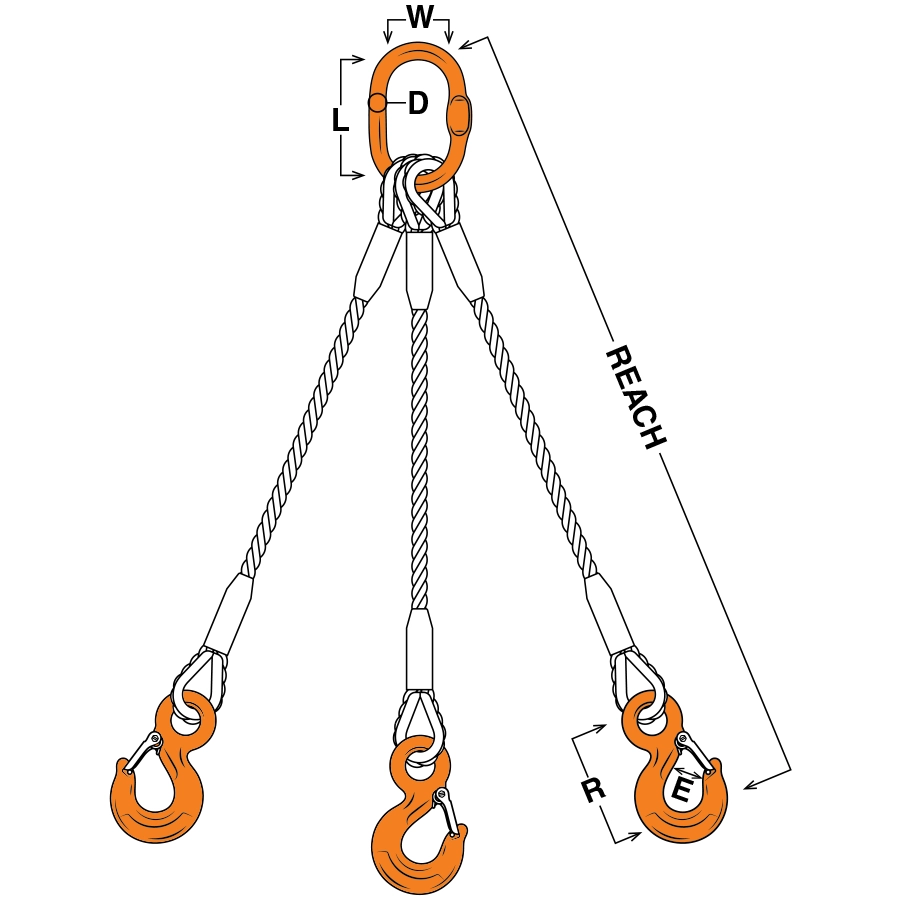

ALLOY OBLONG LINK | HOOK | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 30° | 45° | 60° | D | L | W | WLL** TONS |
E | R | |
| 1/4″ | .97 | 1.4 | 1.7 | 1/2″ | 5″ | 2 1/2″ | 1 | 15/16″ | 3 7/32″ |
| 5/16″ | 1.5 | 2.1 | 2.6 | 1/2″ | 5″ | 2 1/2″ | 1 | 1 1/32″ | 3 21/32″ |
| 3/8″ | 2.2 | 3 | 3.7 | 3/4″ | 5 1/2″ | 2 3/4″ | 1 1/2 | 1 1/16″ | 4 3/32″ |
| 7/16″ | 2.9 | 4.1 | 5 | 3/4″ | 5 1/2″ | 2 3/4″ | 2 | 1 7/32″ | 4 11/16″ |
| 1/2″ | 3.8 | 5.4 | 6.6 | 1″ | 8″ | 4″ | 3 | 1 1/2″ | 5 3/4″ |
| 9/16″ | 4.8 | 6.8 | 8.3 | 1″ | 8″ | 4″ | 4 1/2 | 1 1/2″ | 5 3/4″ |
| 5/8″ | 5.9 | 8.3 | 10 | 1 1/4″ | 8 3/4″ | 4 3/8″ | 4 1/2 | 1 7/8″ | 7 3/8″ |
| 3/4″ | 8.4 | 12 | 15 | 1 1/2″ | 10 1/2″ | 5 1/4″ | 7 | 1 7/8″ | 7 3/8″ |
| 7/8″ | 11 | 16 | 20 | 1 1/2″ | 10 1/2″ | 5 1/4″ | 11 | 2 1/4″ | 9 1/16″ |
| 1″ | 15 | 21 | 26 | 1 3/4″ | 12″ | 6″ | 11 | 2 1/4″ | 9 1/16″ |
| 1 1/8″ | 18 | 26 | 31 | 1 3/4″ | 12″ | 6″ | 15 | 2 1/2″ | 10 1/16″ |
| 1 1/4″ | 22 | 31 | 38 | 2″ | 14″ | 7″ | 15 | 2 1/2″ | 10 1/16″ |
| 1 1/2″ | 32 | 45 | 55 | 2 1/4″ | 16″ | 8″ | 22 | 3 3/8″ | 12 1/2″ |
Do not exceed work load limit.
*Rated capacities for unprotected eyes apply only when attachment is made over an object narrower than the natural width of the eye, and apply for basket hitches only when the D/d ratio is greater, where D = Diameter of curvature around which the body of the sling is bent, and d = nominal diameter of the rope.
**Working Load Limit
Please note: Any and all sizes are available. Please contact your Advantage sales person for details.
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
