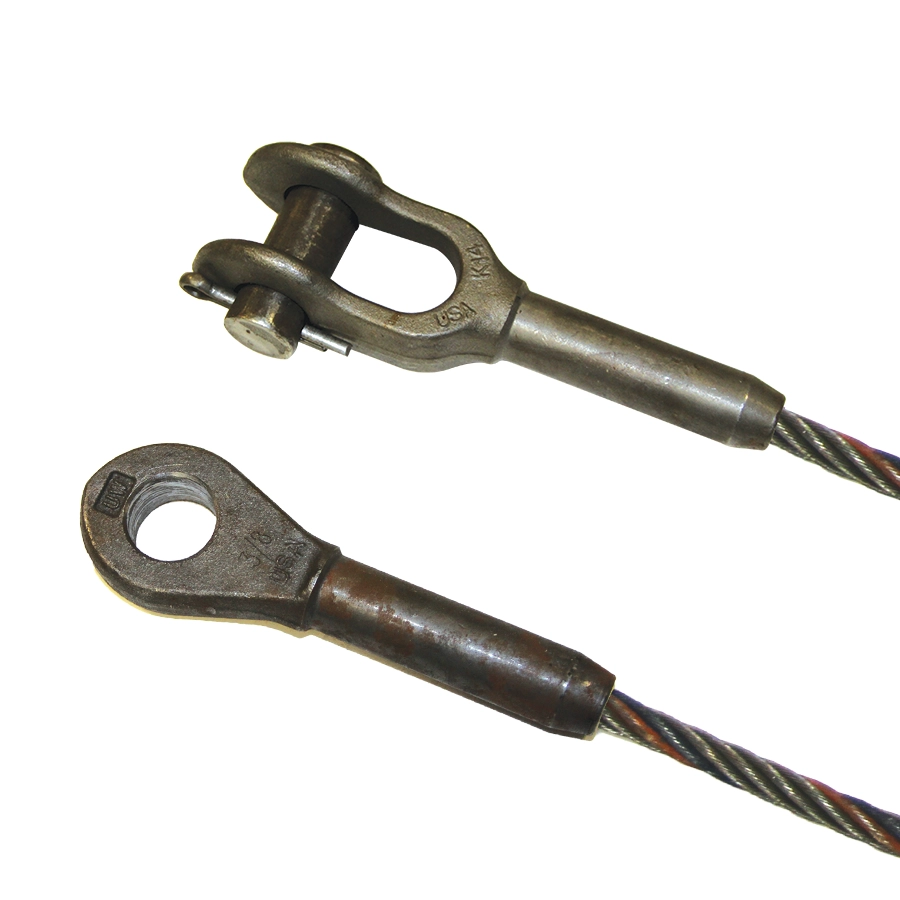

PART NUMBER	ROPE SIZE	WEIGHT/PIECE (LBS.)	PIN WEIGHT	PIN DIAMETER	A	B1
4002382	5/16″	1.7	.50	13/16″	1 11/16″	1 5/8″
4181353	3/8″	1.7	.50	13/16″	1 11/16″	1 5/8″
4181354	7/16″	3	.75	1″	2″	2″
4179732	1/2″	3	.75	1″	2″	2″
4002388	9/16″	5	1	1 3/16″	2 1/2″	2 3/8″
4002391	5/8″	5	1	1 3/16″	2 1/2″	2 3/8″
4002393	3/4″	9	1.50	1 3/8″	3″	2 3/4″
4002395	7/8″	11.5	2.50	1 5/8″	3 1/2″	3 1/4″
4002397	1″	19	4.50	2″	4″	3 3/4″
4002400	1 1/8″	24	6	2 1/4″	4 1/2″	4 1/4″

PART NUMBER	B2	OVERALL LENGTH C	PIN HOLE D	DIE E	F	DECCRIPTION
4002382	13/16″	6″	7/8″	2″	1 3/4″	3/8 OC
4181353	13/16″	6″	7/8″	2″	1 3/4″	3/8 OC
4181354	1″	7 5/16″	1 1/16″	3″	2″	1/2 OC
4179732	1″	7 5/16″	1 1/16″	3″	2″	1/2 OC
4002388	1 1/4″	8 7/8″	1 1/4″	3 5/8″	2 1/4″	5/8 OC
4002391	1 1/4″	8 7/8″	1 1/4″	3 5/8″	2 1/4″	5/8 OC
4002393	1 7/16″	10 3/8″	1 7/16″	4 1/8″	2 3/4″	3/4 OC
4002395	1 3/4″	12 1/2″	1 11/16″	5 1/2″	3 1/4″	3/4 OC
4002397	2″	14 1/4″	2 1/16″	6 1/2″	3 3/4″	7/8 OC
4002400	2 1/4″	17 7/8″	2 5/16″	9″	4 1/4″	1 OC

Swage Sockets

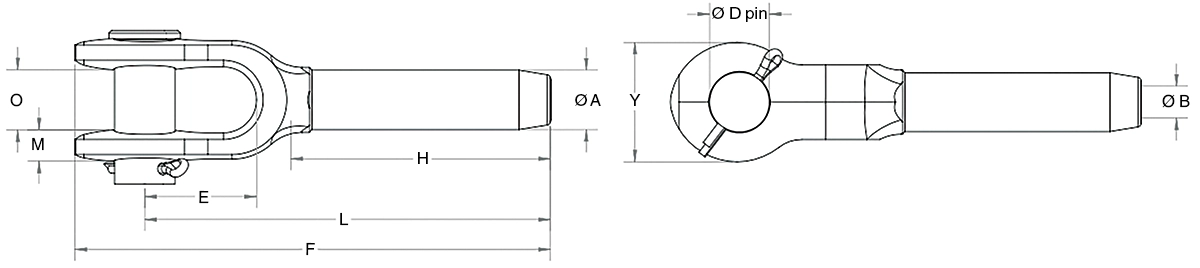

Open Swage Dimensions

STOCK NUMBER	ROPE DIA.	DIMENSIONS IN INCHES										WEIGHT (LBS.)	MIN.	MAX.
STOCK NUMBER	ROPE DIA.	A	B	D	E	F	H	L	M	O	Y	WEIGHT (LBS.)	MIN.	MAX.
40025002	1/4”	0.495	0.272	0.688	1 1/2	4 3/4	2 1/8	4	5/16	11/16	1 3/8	0.57	0.428	0.460
40031302	5/16”	0.770	0.339	0.812	1 3/4	6 1/4	3 3/16	5 5/16	13/32	13/16	1 5/8	1.25	0.678	0.710
40037502	3/8”	0.770	0.406	0.812	1 3/4	6 1/4	3 3/16	5 5/16	13/32	13/16	1 5/8	1.20	0.678	0.710
40043802	7/16”	0.982	0.484	1.000	2	7 13/16	4 1/4	6 11/16	1/2	1	2	2.45	0.865	0.910
40050002	1/2”	0.982	0.547	1.000	2	7 13/16	4 1/4	6 11/16	1/2	1	2	2.40	0.865	0.910
40056302	9/16”	1.257	0.609	1.190	2 1/4	9 9/16	5 5/16	8 1/8	5/8	1 1/4	2 1/2	4.80	1.115	1.160
40062502	5/8”	1.257	0.672	1.190	2 1/4	9 9/16	5 5/16	8 1/8	5/8	1 1/4	2 1/2	4.50	1.115	1.160
40075002	3/4”	1.545	0.796	1.380	2 3/4	11 11/16	6 3/8	10	3/4	1 1/2	3	7.80	1.365	1.420
40087502	7/8”	1.700	0.938	1.630	3 1/4	13 5/8	7 7/16	11 5/8	15/16	1 3/4	3 3/8	11.80	1.490	1.550
40100002	1”	1.975	1.062	2.000	3 1/4	15 5/8	8 1/2	13 3/8	1 1/32	2	4	17.80	1.740	1.800
40112502	1 1/8”	2.245	1.188	2.250	4 1/4	17 1/2	9 9/16	15	1 3/16	2 1/4	4 1/2	28.90	1.990	2.050
40125002	1 1/4”	2.525	1.328	2.500	4 3/4	19 7/16	10 5/8	16 1/2	1 3/16	2 1/2	5	36.20	2.240	2.300
40150002	1 1/2″	3.075	1.578	2.750	5 3/4	23 1/4	12 3/4	19 3/4	1 7/16	3	5 3/4	64.40	2.740	2.560

Closed Swage

PART NUMBER	ROPE SIZE	WT. EACH	A	B	OVERALL LENGTH C
5102784	5/16″	1	1 11/16″	11/16″	4 5/8″
5130291	3/8″	1	1 11/16″	11/16″	4 5/8″
5130293	7/16″	1.5	2″	13/16″	5 7/8″
5111839	1/2″	1.5	2″	13/16″	5 7/8″
5102808	9/16″	2.5	2 1/2″	1 1/8″	7 1/4″
5102814	5/8″	2.5	2 1/2″	1 1/8″	7 1/4″
5102820	3/4″	3	3″	1 5/16″	8 3/8″
5102826	7/8″	6	3 1/2″	1 1/2″	10 1/8″
5102832	1″	10	4″	1 3/4″	11 9/16″
5112070	1 1/8″	16	4 1/2″	2″	14 3/4″

PART NUMBER	PIN HOLE D	E	F	SHANK DIAMETER		DIE DESCR.
PART NUMBER	PIN HOLE D	E	F	BEFORE J	AFTER J	DIE DESCR.
5012784	7/8″	2″	7/8″	7/8″	.76″	3/8 OC
5130291	7/8″	2″	7/8″	7/8″	.76″	3/8 OC
5130293	1 1/16″	3″	1 1/8″	1 1/8″	1.01″	1/2 OC
5111839	1 1/16″	3″	1 1/8″	1 1/8″	1.01″	1/2 OC
5102808	1 1/4″	3 5/8″	1 3/8″	1 7/16″	1.27″	5/8 OC
5102814	1 1/4″	3 5/8″	1 3/8″	1 7/16″	1.27″	5/8 OC
5102820	1 7/16″	4 1/8″	1 5/8″	1 5/8″	1.53″	3/4 OC
5102826	1 11/16″	5 1/2″	1 7/8″	1 7/8″	1.53″	3/4 OC
5102832	2 1/16″	6 1/2″	2 3/16″	1 3/16″	1.76″	7/8 OC
5112070	2 5/16″	9″	2 7/16″	2 7/16″	2.04″	1 OC

Swage Sockets

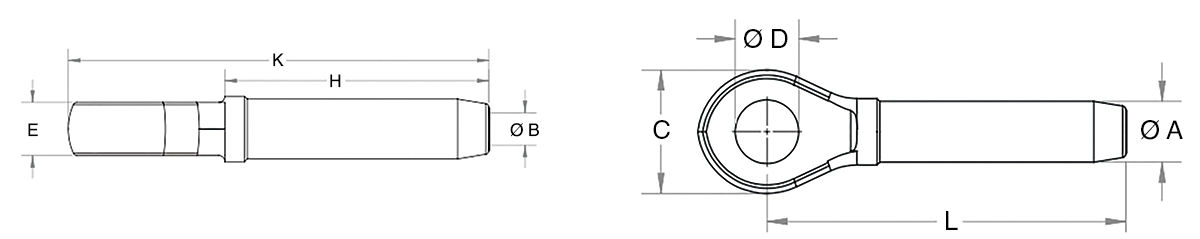

Closed Swage Dimension

STOCK NUMBER	ROPE DIA.	DIMENSIONS IN INCHES								WEIGHT (LBS.)	MIN.	MAX.
STOCK NUMBER	ROPE DIA.	A	B	C	D	E	H	K	L	WEIGHT (LBS.)	MIN.	MAX.
41025002	1/4”	0.495	0.272	1 7/16	0.750	1/2	2 1/8	4 3/8	3 1/2	0.35	0.428	0.460
41031302	5/16”	0.770	0.339	1 11/16	0.875	11/16	3 3/16	5 1/2	4 1/2	0.77	0.678	0.710
41037502	3/8”	0.770	0.406	1 11/16	0.875	11/16	3 3/16	5 1/2	4 1/2	0.73	0.678	0.710
41043802	7/16”	0.982	0.484	2	1.063	7/8	4 1/4	6 15/16	5 3/4	1.47	0.865	0.910
41050002	1/2”	0.982	0.547	2	1.063	7/8	4 1/4	6 15/16	5 3/4	1.38	0.865	0.910
41056302	9/16”	1.257	0.609	2 1/2	1.250	1 1/8	5 5/16	8 3/4	7 1/4	2.90	1.115	1.160
41062502	5/8”	1.257	0.672	2 1/2	1.250	1 1/8	5 5/16	8 3/4	7 1/4	2.80	1.115	1.160
41075002	3/4”	1.545	0.796	3	1.438	1 5/16	6 3/8	10 3/8	8 5/8	5.16	1.365	1.420
41087502	7/8”	1.700	0.938	3 1/2	1.688	1 1/2	7 7/16	12 1/8	10 1/8	7.40	1.490	1.550
41100002	1”	1.975	1.062	4	2.063	1 3/4	8 1/2	13 3/4	11 1/2	11.20	1.740	1.800
41112502	1 1/8”	2.245	1.188	4 1/2	2.313	2	9 9/16	15 1/4	12 3/4	16.00	1.990	2.050
41125002	1 1/4”	2.525	1.328	5	2.563	2 1/4	10 5/8	17 1/4	14 3/8	22.70	2.240	2.300
41150002	1 1/2″	3.075	1.578	5 1/2	2.813	2 1/2	12 3/4	20 3/8	17	37.50	2.740	2.810

Dimension Reference

OPEN SWAGE SOCKETS

Sockets

CLOSED SWAGE SOCKETS
Sockets
