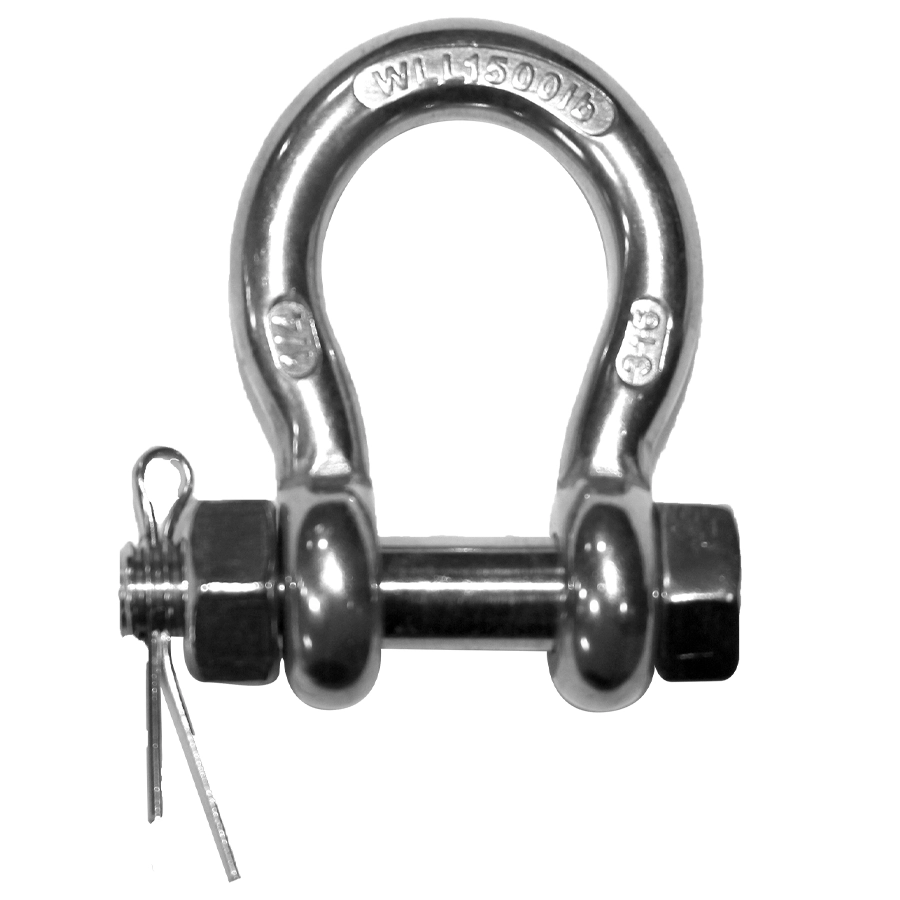

Stainless Steel Type 316 Safety Bolt Anchor Shackles
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
Screw Pin Anchor Shackles
Type 316 with Oversized Pin
| SIZE | STOCK NUMBER | PIN DIAMETER | WORKING LOAD LIMIT | WEIGHT/PIECE |
|---|---|---|---|---|
| 1/4″ | SSPA250 | 5/16″ | 1,000 lbs. | .12 lbs. |
| 5/16″ | SSPA312 | 3/8″ | 1,500 lbs. | .18 lbs. |
| 3/8″ | SSPA375 | 7/16″ | 2,000 lbs. | .31 lbs. |
| 7/16″ | SSPA437 | 1/2″ | 3,000 lbs. | .48 lbs. |
| 1/2″ | SSPA500 | 5/8″ | 4,000 lbs. | .68 lbs. |
| 5/8″ | SSPA625 | 3/4″ | 6,000 lbs. | 1.26 lbs. |
| 3/4″ | SSPA750 | 7/8″ | 8,000 lbs. | 2.10 lbs. |
| 7/8″ | SSPA875 | 1″ | 12,000 lbs. | 3.32 lbs. |
| 1″ | SSPA100 | 1 1/8″ | 14,000 lbs. | 4.80 lbs. |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
