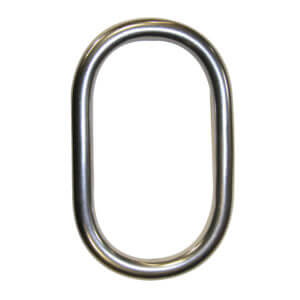

Stainless Steel Master Links
- Type 316
- Suitable for overhead lifting
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | SIZE | GRADE | TYPE | DIMENSIONS | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|---|---|---|
| SSML375 | 3/8″ | 50 | Type 316 | 2” X 3” | 1,900 | 0.44 |
| SSML500 | 1/2″ | 50 | Type 316 | 2 1/4” X 4 1/4” | 2,900 | 0.75 |
| SSML625 | 5/8″ | 50 | Type 316 | 2 1/4” X 4 1/4” | 3,800 | 1.17 |
| SSML750 | 3/4″ | 50 | Type 316 | 3” X 5 1/4” | 4,400 | 1.76 |
| SSML875 | 7/8” | 50 | Type 316 | 3 1/2” X 6 1/4” | 7,500 | 3.30 |
| SSML1000 | 1″ | 50 | Type 316 | 4” X 7” | 12,100 | 5.00 |
| SSML1250 | 1 1/4” | 50 | Type 316 | 4 – 1/4” X 7 3/4” | 18,500 | 8.60 |
| SSML1500 | 1 1/2” | 50 | Type 316 | 5 1/2” X 10 1/4” | 23,200 | 14.0 |
When re-certifying an X100 master link, the pin or rigging used must not be less than 40% of greater than 60% of the master link’s inside width.
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
