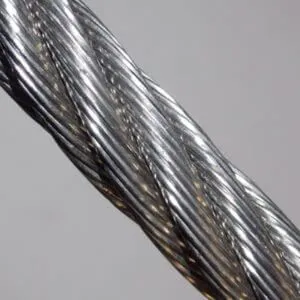

Stainless Steel Aircraft Cable
- Available in Type 304 and Type 316
- Standard reel lengths in stock: 250′, 500′, 1,000′ & 5,000′.
- Made in accordance with Federal Specification RR-W-410D.
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
Specifications
Type 304
| SIZE | STOCK NUMBER | CONSTRUCTION | WEIGHT/1,000′ | BREAKING STRENGTH |
|---|---|---|---|---|
| 1/16″ | SSAC0627X7 | 7X7 | 7.5 lbs. | 480 lbs. |
| 3/32″ | SSAC0937X7 | 7X7 | 16 lbs. | 920 lbs. |
| 1/8″ | SSAC1257X7 | 7X7 | 28 lbs. | 1,760 lbs. |
| 1/8″ | SSAC1257X19 | 7X19 | 29 lbs. | 1,760 lbs. |
| 3/16″ | SSAC1877X19 | 7X19 | 65 lbs. | 3,700 lbs. |
| 1/4″ | SSAC2507X19 | 7X19 | 110 lbs. | 6,400 lbs. |
| 5/16″ | SSAC3127X19 | 7X19 | 173 lbs. | 9,000 lbs. |
| 3/8″ | SSAC3757X19 | 7X19 | 243 lbs. | 12,000 lbs. |
Type 316
| SIZE | STOCK NUMBER | CONSTRUCTION | BREAK STRENGTH | WEIGHT / FOOT |
|---|---|---|---|---|
| 1/8″ | SSAC1257x7T316 | 7X7 | 1,300 | 0.028 |
| 3/16″ | SSAC187T316 | 7×19 | 2,900 | 0.065 |
| 1/4″ | SSAC250T316 | 7×19 | 4,900 | 0.110 |
| 5/16″ | SSAC312T316 | 7X19 | 7,600 | 0.173 |
| 3/8″ | SSAC375T316 | 7X19 | 11,000 | 0.243 |
Also available in Type 316
Standard reel lengths in stock: 250′, 500′, 1,000′ & 5,000′.
*Made in accordance with Federal Specification RR-W-410Ds
Note: Breaking strength ratings are listed for comparison purposed only. Actual operating loads may vary, but should not exceed the recommended design factor of 20% of the product’s breaking strength.
Constructions
7×19 & 7×7
