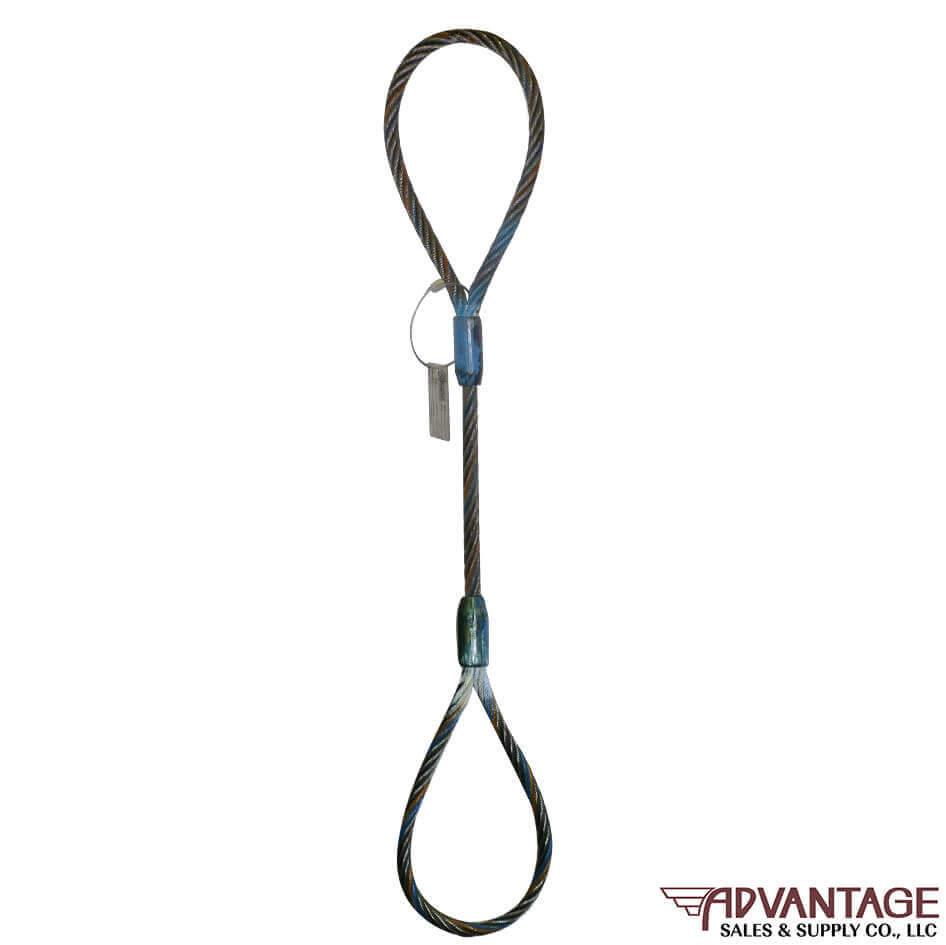

Single-Leg Wire Rope Slings

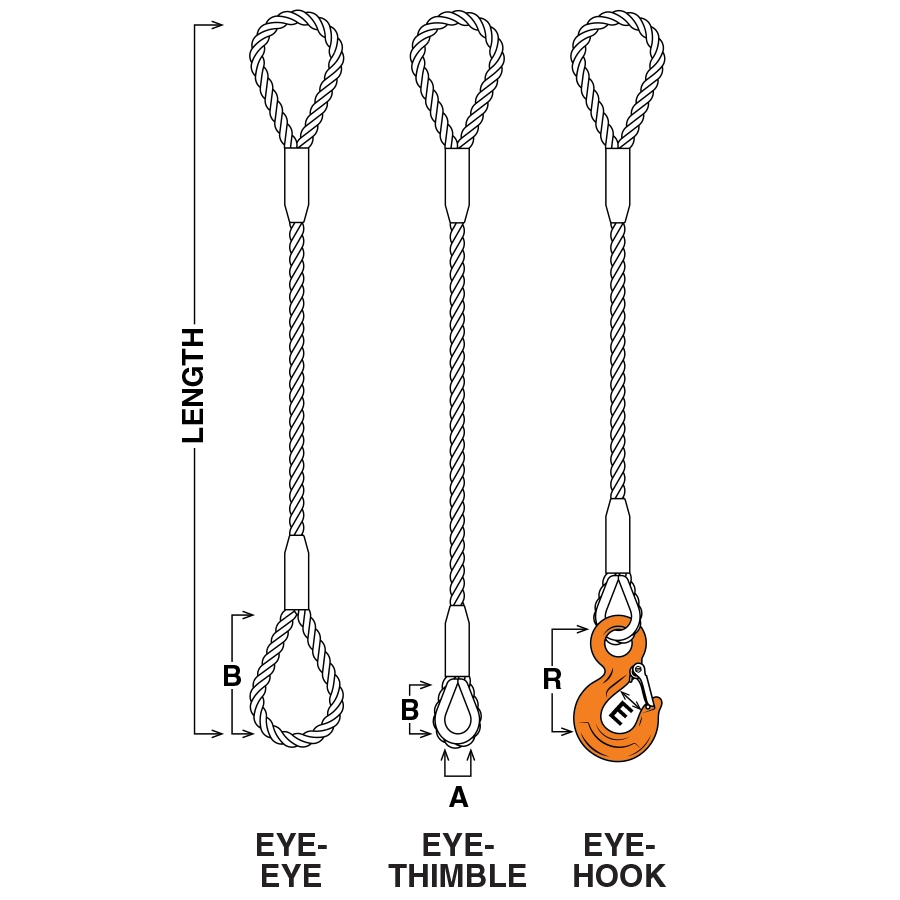

| ROPE DIAMETER | RATED CAPACITY – TONS EIPS IWRC W/R | EYE DIMENSIONS | THIMBLE | STANDARD HOOK SELECTION | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| VERTICAL | CHOKER | BASKET | A | B | A | B | WLL TONS | E | R | |
| 1/4″ | .65 | .48 | 1.3 | 2″ | 4″ | 7/8″ | 1-5/8″ | 1 | 7/8″ | 3-5/16″ |
| 5/16″ | 1.0 | .74 | 2.0 | 2-1/2″ | 5-1/2″ | 1-1/16″ | 2″ | 1 | 7/8″ | 3-5/16″ |
| 3/8″ | 1.4 | 1.1 | 2.9 | 3″ | 6″ | 1-1/8″ | 2-1/8″ | 1-1/2 | 7/8″ | 3-5/8″ |
| 7/16″ | 1.9 | 1.4 | 3.9 | 3-1/2″ | 7″ | 1-1/4″ | 2-1/4″ | 2 | 1-1/16″ | 4″ |
| 1/2″ | 2.5 | 1.9 | 5.1 | 4″ | 8″ | 1-1/2″ | 2-15/16″ | 3 | 1-1/4″ | 4-1/2″ |
| 9/16″ | 3.2 | 2.4 | 6.4 | 4-1/2″ | 9″ | 1-1/2″ | 2-15/16″ | 5 | 1-1/2″ | 5-3/4″ |
| 5/8″ | 3.9 | 2.9 | 7.8 | 5″ | 10″ | 1-3/4″ | 3-1/4″ | 5 | 1-1/2″ | 5-3/4″ |
| 3/4″ | 5.6 | 4.1 | 11 | 6″ | 12″ | 2″ | 3-3/4″ | 7 | 2″ | 7-1/8″ |
| 7/8″ | 7.6 | 5.6 | 15 | 7″ | 14″ | 2-1/4″ | 4-1/4″ | 11 | 2-1/8″ | 9″ |
| 1″ | 9.8 | 7.2 | 20 | 8″ | 16″ | 2-1/2″ | 4-1/2″ | 11 | 2-1/8″ | 9″ |
| 1-1/8″ | 12 | 9.1 | 24 | 9″ | 18″ | 2-7/8″ | 5-1/4″ | 15 | 2-1/4″ | 10-1/16″ |
| 1-1/4″ | 15 | 11 | 30 | 10″ | 20″ | 3-1/2″ | 6-1/4″ | 15 | 2-1/4″ | 10-1/16″ |
| 1-1/2″ | 21 | 16 | 42 | 12″ | 24″ | 3-1/2″ | 6-1/4″ | 22 | 3″ | 12-1/2″ |
| 1-3/4″ | 28 | 21 | 57 | 14″ | 28″ | 4-1/2″ | 9″ | 30 | 3-1/2″ | 13-7/8″ |
| 2″ | 37 | 28 | 73 | 16″ | 32″ | 6″ | 12″ | 37 | 4-1/2″ | 18-3/16″ |
All capacities in tons (2,000 lbs.) All eye and fitting dimensions in inches.
Any and all sizes are available. Please contact your sales representative for details.
WARNING Do not exceed working load limit.

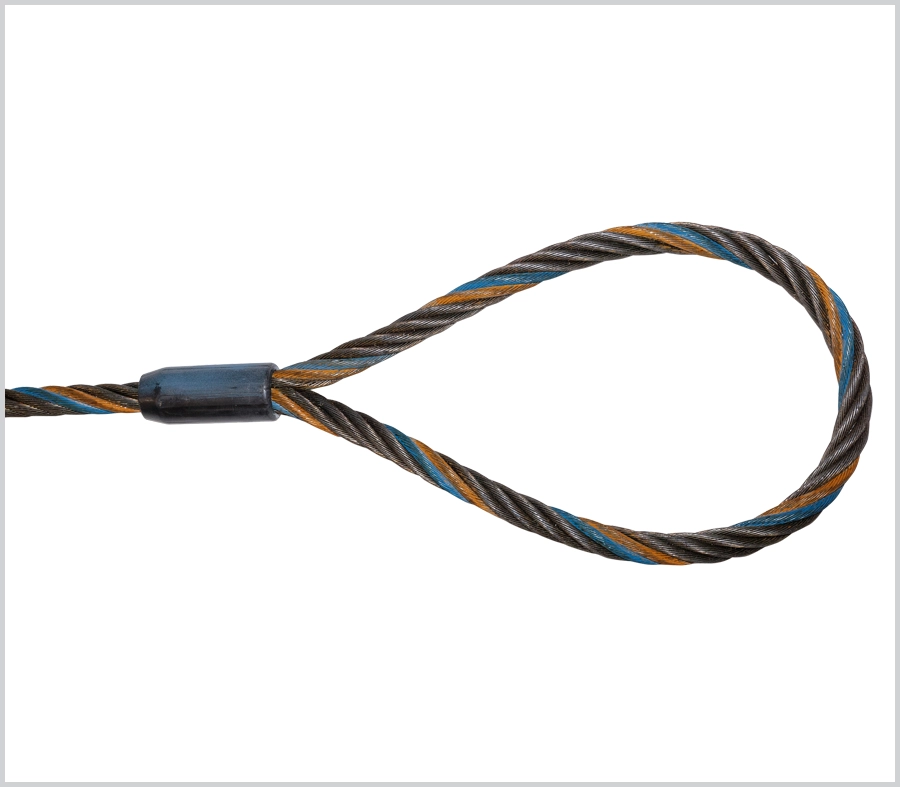

Flemished Eye

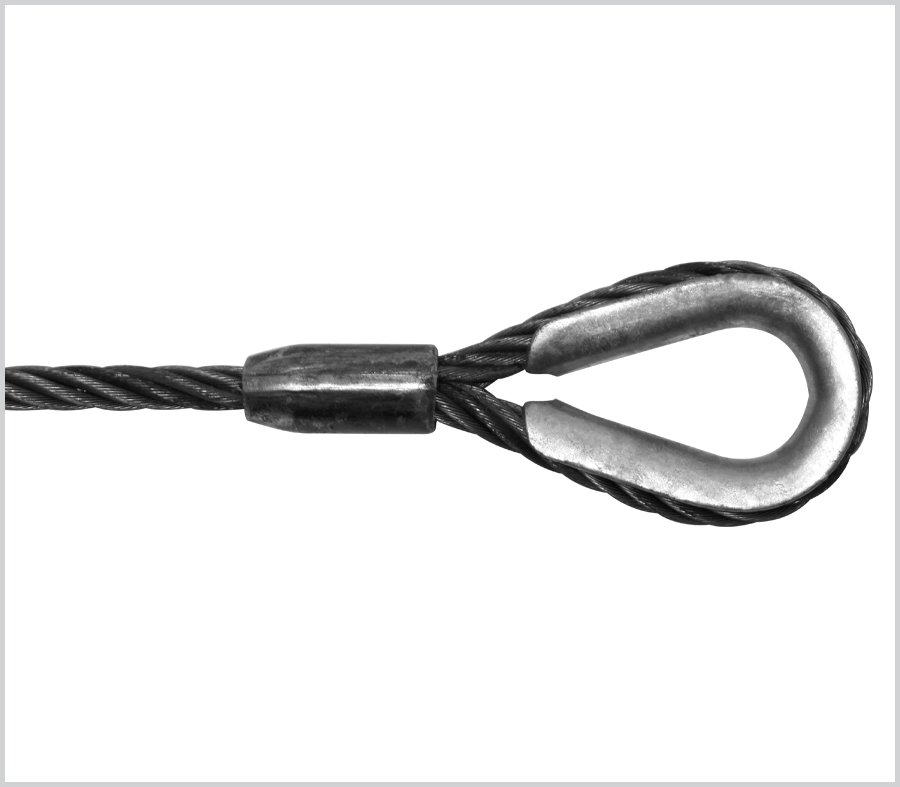

Flemished Thimbled Eye

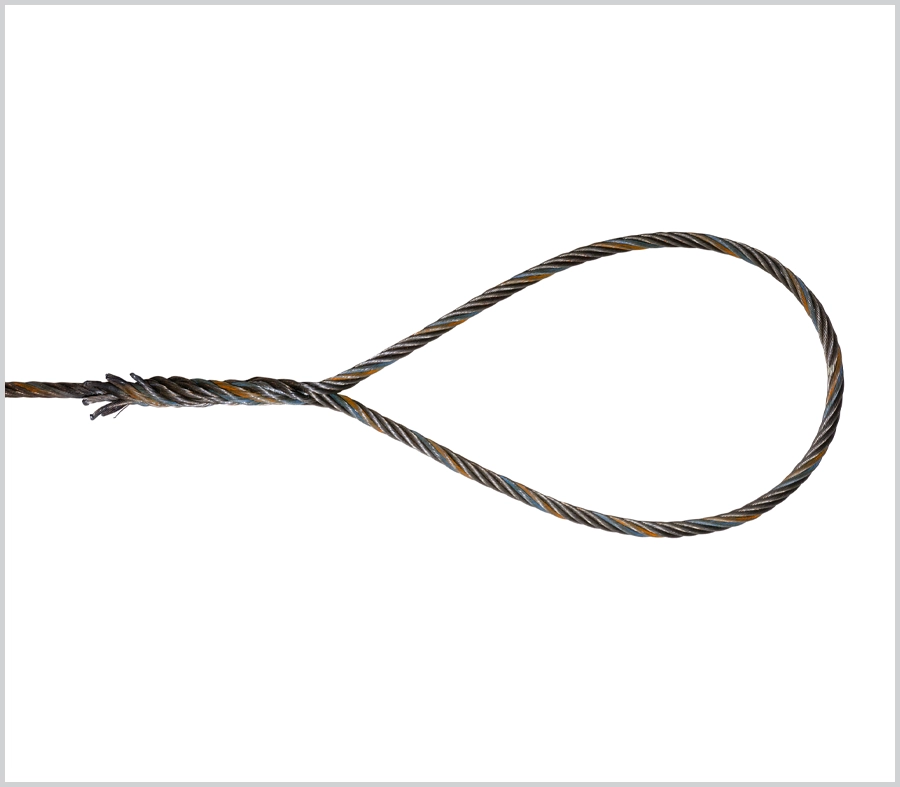

Hand Spliced Eye
One Piece Turnback

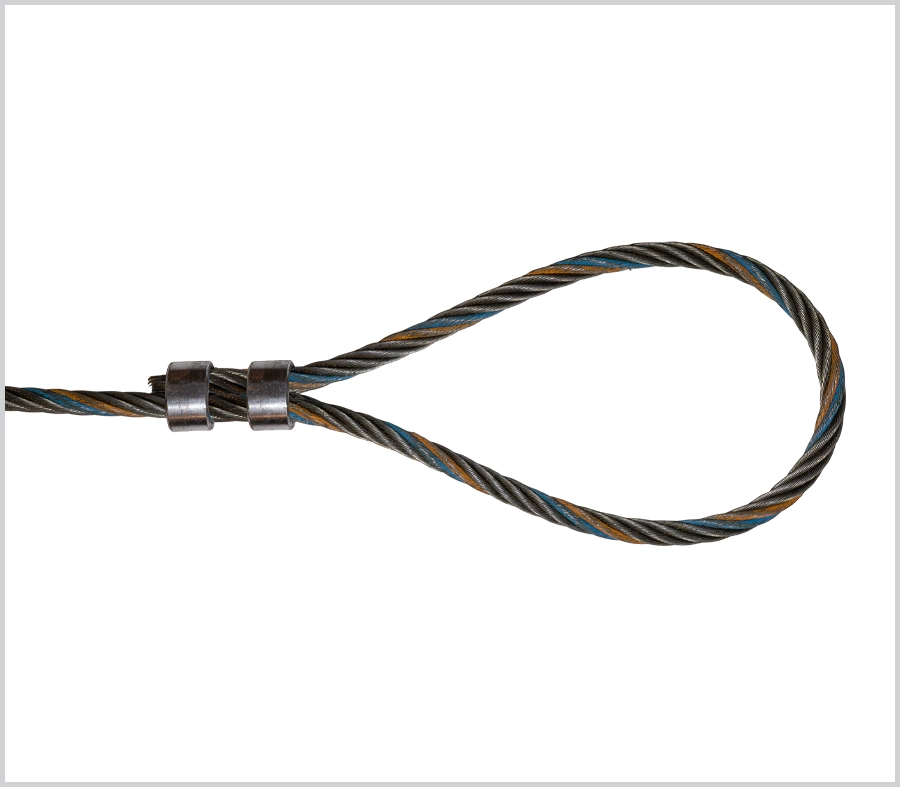

Two Piece Turnback
