Screw Pin Chain Shackles
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
Drop Forged, Load Rated, Hot Galvanized
| SIZE | STOCK NUMBER | PIN DIAMETER | DIMENSIONS | WORKING LOAD LIMIT (TONS) | WEIGHT/PIECE (LBS.) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

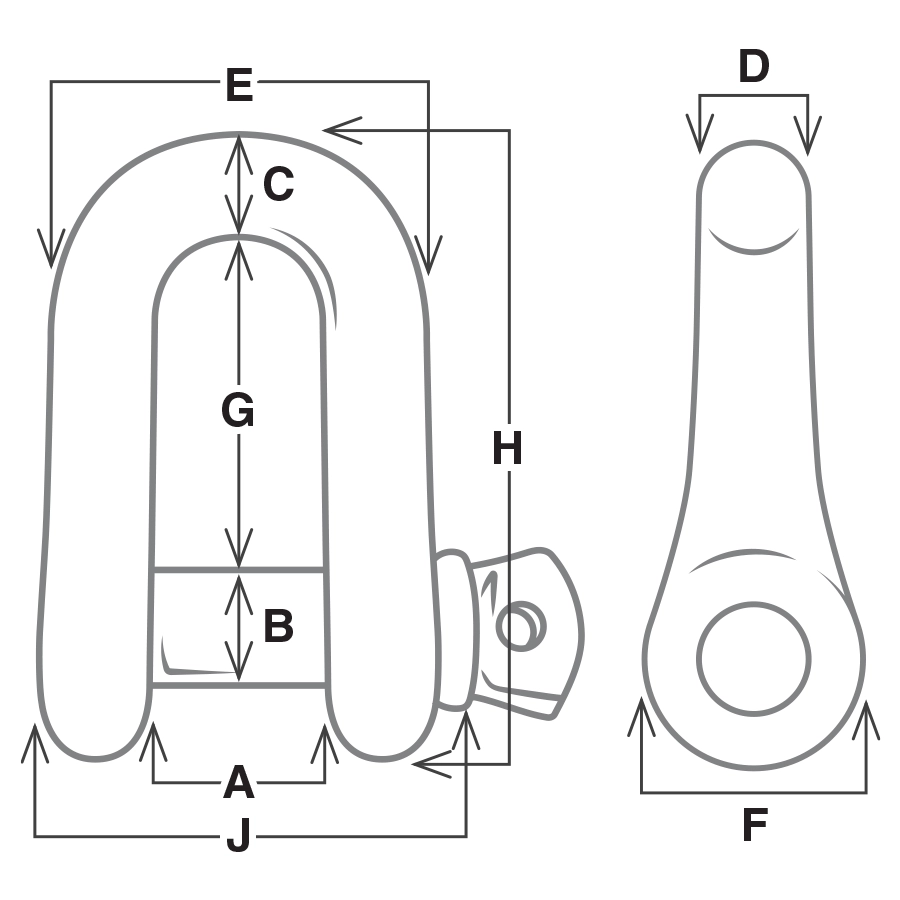

| A | B | C | D | E | F | G | H | I | J | |||||
| 1/4″ | XSPC250 | 5/16″ | .47″ | .31″ | .25″ | .25″ | .97″ | .62″ | .97″ | 1.59″ | .19″ | 1.43″ | 0.50 | 0.11 |
| 5/16″ | XSPC312 | 3/8″ | .53″ | .38″ | .31″ | .31″ | 1.15″ | .75″ | 1.07″ | 1.91″ | .22″ | 1.71″ | 0.75 | 0.18 |
| 3/8″ | XSPC375 | 7/16″ | .66″ | .44″ | .38″ | .38″ | 1.42″ | .92″ | 1.29″ | 2.31″ | .25″ | 2.02″ | 1.00 | 0.30 |
| 1/2″ | XSPC500 | 5/8″ | .81″ | .63″ | .50″ | .50″ | 1.81″ | 1.18″ | 1.66″ | 3.03″ | .38″ | 2.69″ | 2.00 | 0.59 |
| 5/8″ | XSPC625 | 3/4″ | 1.06″ | .75″ | .63″ | .63″ | 2.32″ | 1.50″ | 2.04″ | 3.75″ | .44″ | 3.34″ | 3.25 | 1.27 |
| 3/4″ | XSPC750 | 7/8″ | 1.25″ | .88″ | .81″ | .75″ | 2.75″ | 1.81″ | 2.40″ | 4.53″ | .50″ | 3.97″ | 4.75 | 2.60 |
| 7/8″ | XSPC875 | 1″ | 1.44″ | 1.00″ | .97″ | .88″ | 3.20″ | 2.10″ | 2.86″ | 5.33″ | .50″ | 4.50″ | 6.50 | 3.15 |
| 1″ | XSPC100 | 1 1/8″ | 1.09″ | 1.13″ | 1.00″ | 1.00″ | 3.69″ | 2.38″ | 3.24″ | 5.94″ | .56″ | 5.13″ | 8.50 | 4.75 |

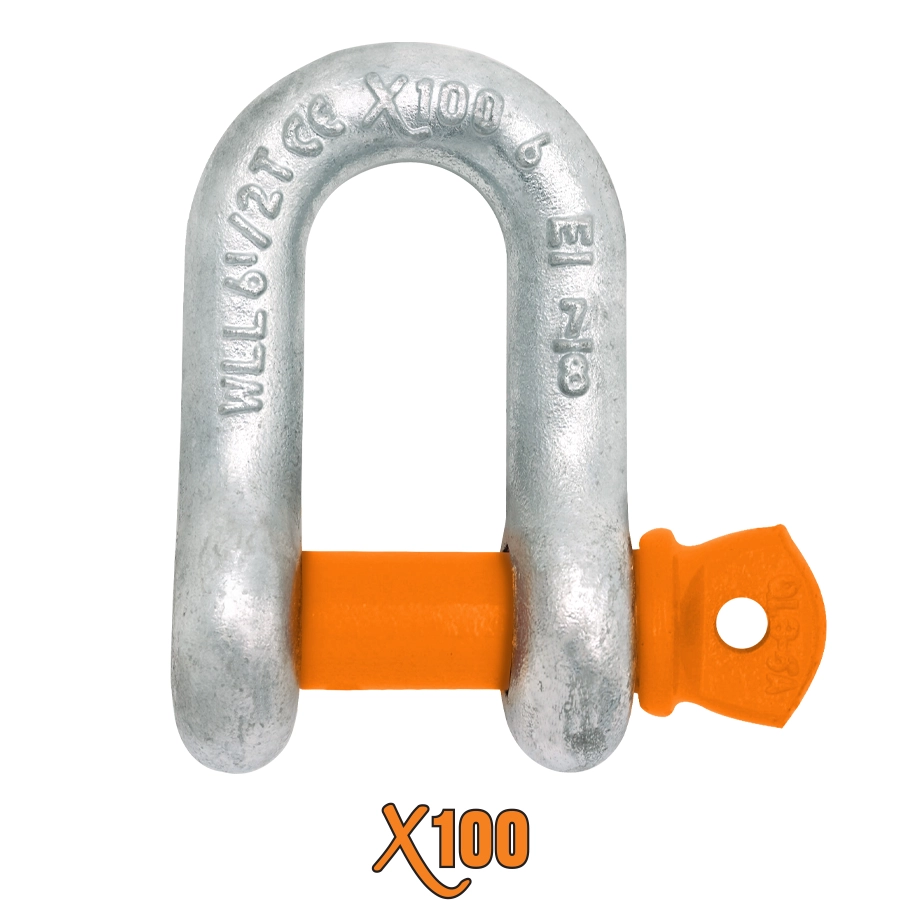

X100 Screw Pin Chain Shackles are suitable for overhead lifting. According to Federal Specification RR-C-271G, Type IVB, Grade A, Class 2. Meets ASME B30.26 requirements.
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
