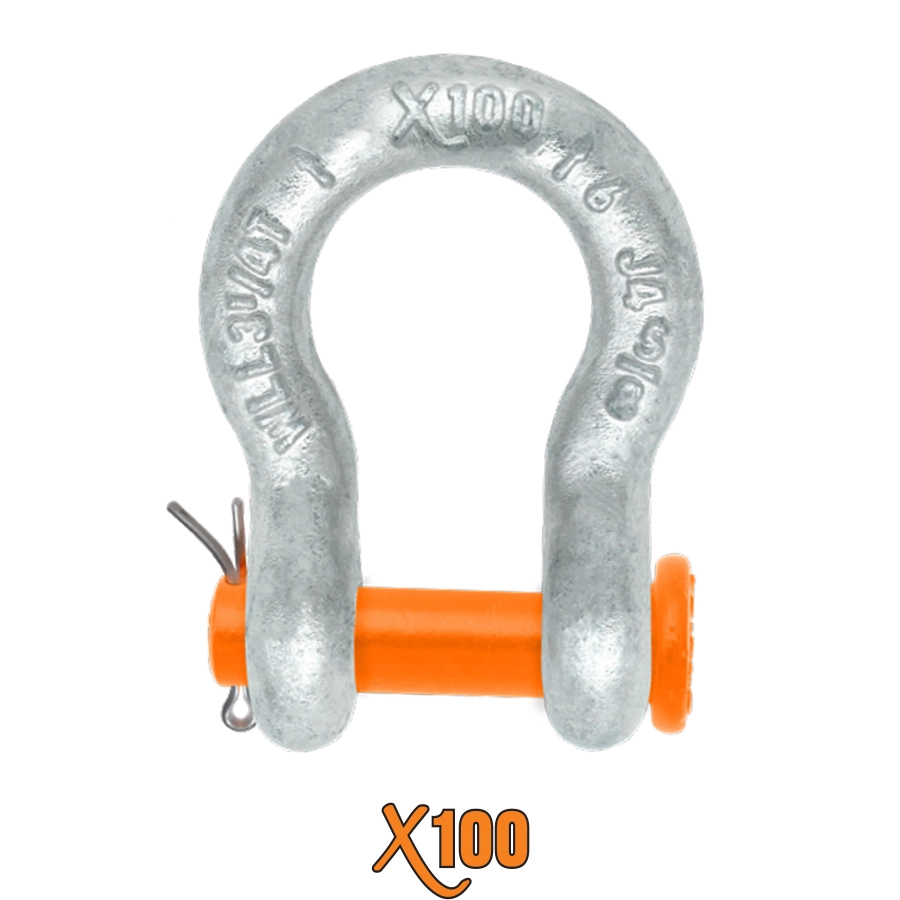

Round Pin Anchor Shackles
• Not for Overhead Lifting
• For Use with “In-Line” Applications Only
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
Drop Forged, Load Rated, Hot Galvanized
| SIZE | STOCK NUMBER | PIN DIAMETER | DIMENSIONS | WORKING LOAD LIMIT (TONS) | WEIGHT/PIECE (LBS.) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | |||||
| 1/4″ | XRPA250 | 5/16″ | .47″ | .31″ | 1.13″ | .25″ | .78″ | .61″ | 1.28″ | 1.84″ | 1.34″ | .25″ | .50 | .13 |
| 5/16″ | XRPA312 | 3/8″ | .53″ | .38″ | 1.22″ | .31″ | .84″ | .75″ | 1.47″ | 2.09″ | 1.59″ | .31″ | .75 | .18 |
| 3/8″ | XRPA375 | 7/16″ | .66″ | .44″ | 1.44″ | .38″ | 1.03″ | .91″ | 1.78″ | 2.49″ | 1.86″ | .38″ | 1.00 | .25 |
| 1/2″ | XRPA500 | 5/8″ | .81.” | .63″ | 1.88″ | .50″ | 1.31″ | 1.19″ | 2.31″ | 3.28″ | 2.38″ | .50″ | 2.00 | .50 |
| 5/8″ | XRPA625 | 3/4″ | 1.06″ | .75″ | 2.38″ | .63″ | 1.09″ | 1.50″ | 2.94″ | 4.19″ | 2.91″ | .69″ | 3.25 | 1.50 |
| 3/4″ | XRPA750 | 7/8″ | 1.25″ | .88″ | 2.81″ | .75″ | 2.00″ | 1.81″ | 3.50″ | 4.97″ | 3.44″ | .81″ | 4.75 | 2.32 |
| 7/8″ | XRPA875 | 1″ | 1.44″ | 1.00″ | 3.31″ | .88″ | 2.28″ | 2.09″ | 4.03″ | 5.83″ | 3.81″ | .97″ | 6.50 | 3.49 |
| 1″ | XRPA100 | 1-1/8″ | 1.81″ | 1.25″ | 4.25″ | 1.13″ | 2.91″ | 2.09″ | 5.16″ | 7.47″ | 5.13″ | 1.25″ | 8.50 | 5.00 |
X100 Round Pin Anchor Shackles are suitable for overhead lifting. According to Federal Specification RR-C-271G,
Type IVA, Grade A, Class 1. Meets ASME B30.26 requirements.
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
