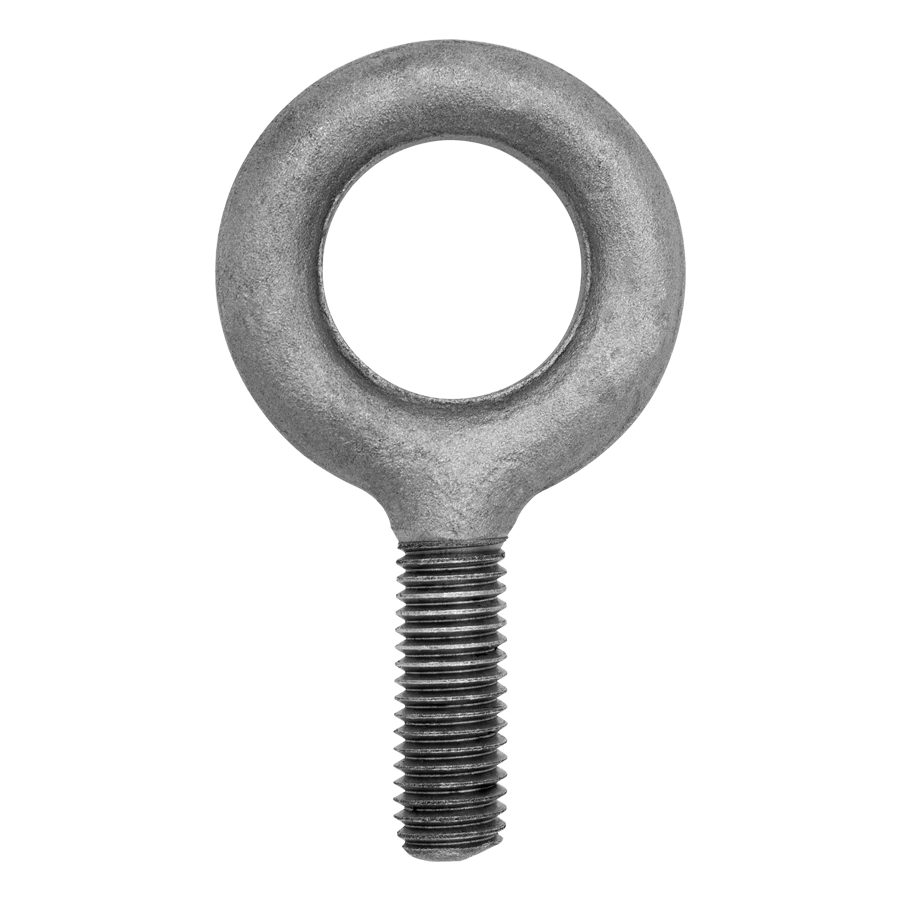

Plain Pattern Machinery Eye Bolts
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| SIZE | STOCK NUMBER | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) | |
|---|---|---|---|---|

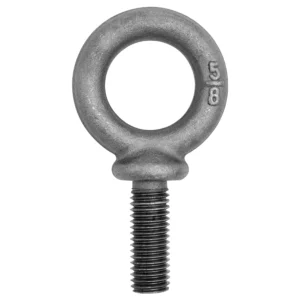

| SHOULDER | PLAIN PATTERN | |||
| 1/4″ X 1″ | MEB250X100S | MEB250X100P | 650 | 0.05 |
| 5/16″ X 1 1/8″ | MEB312X1125S | MEB312X1125P | 1,200 | 0.08 |
| 3/8″ X 1 1/4″ | MEB375X1250S | MEB375X1250P | 1,550 | 0.15 |
| 1/2″ X 1 1/2″ | MEB500X1500S | MEB500X1500P | 2,600 | 0.35 |
| 5/8″ X 1 3/4″ | MEB625X1750S | MEB625X1750P | 5,200 | 0.65 |
| 3/4″ X 2″ | MEB750X200S | MEB750X200P | 7,200 | 1.00 |
| 7/8″ X 2 1/4″ | MEB875X2250S | MEB875X2250P | 10,600 | 1.53 |
| 1″ X 2 1/2″ | MEB100X2500S | MEB100X2500P | 13,300 | 2.30 |
| 1 1/4″ X 3″ | MEB1250X300S | MEB1250X300P | 21,000 | 3.80 |
| 1 1/2″ X 3 1/2″ | MEB1500X3500S | MEB1500X3500P | 24,000 | 7.00 |
Safety Information

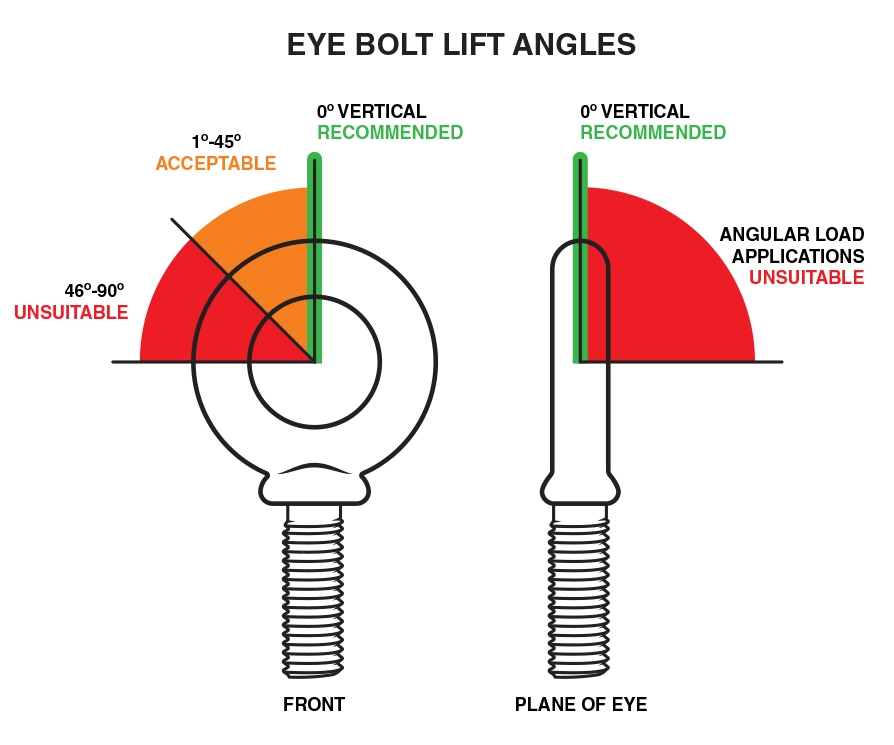

| DIRECTION OF PULL (FROM IN-LINE) | ADJUSTED WORKING LOAD |
|---|---|
| 45 degrees | 30% of rated working load |
| 90 degrees | 25% of rated working load |
Warning: The full ratings of machinery eye bolts can only be achieved by pulling directly in line with the threads. For angled lifts, we recommend swivel hoist rings.
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
