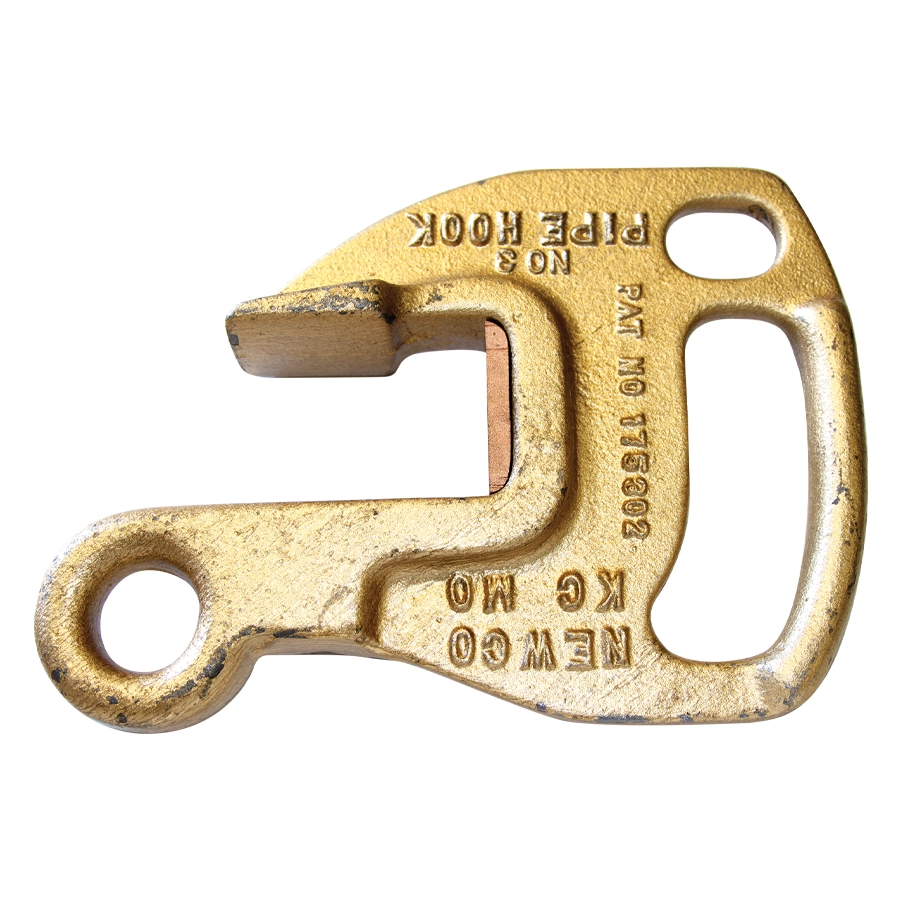

Pipe Hooks
Ease the job of handling pipe. Pipe hooks accelerate the loading or unloading of pipe sections, or assist in moving pipes into position for connecting or welding.
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
Specifications

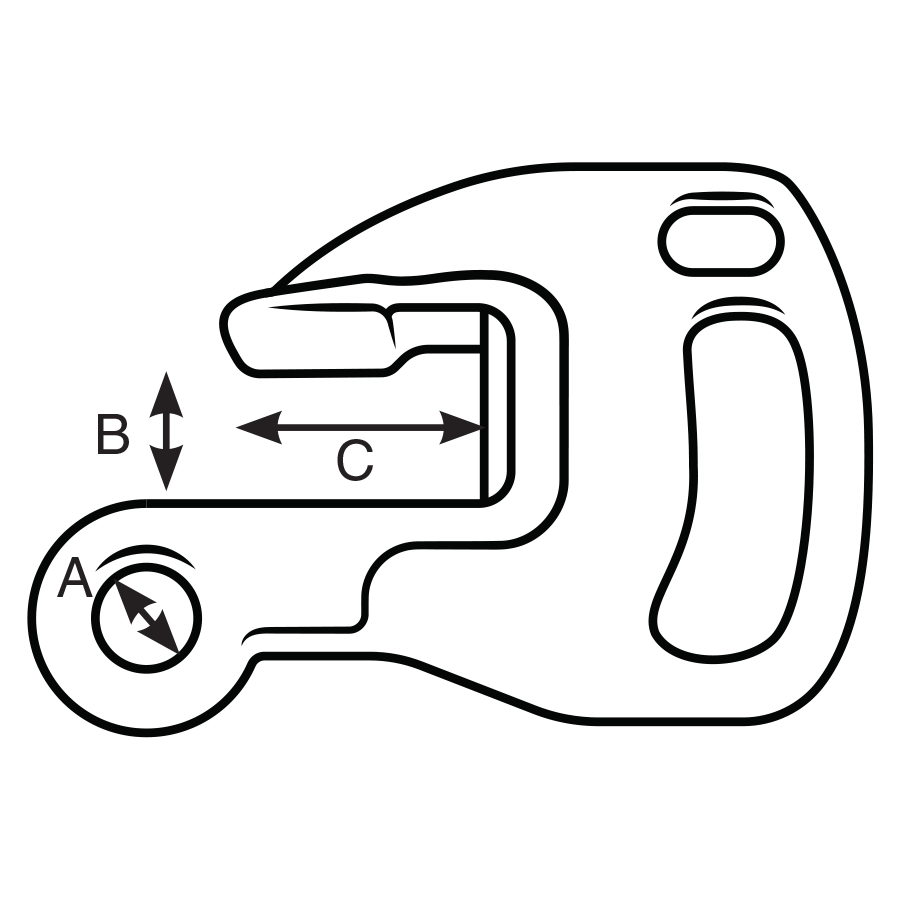

| NUMBER | A | B | C | ROPE SIZE | WORKING LOAD LIMIT (LBS.) |
WEIGHT/ PIECE (LBS.) |
|---|---|---|---|---|---|---|
| 2 | 1-1/4″ | 1″ | 3-1/4″ | 3/8″ – 5/8″ | 8,500 | 8.5 |
| 3 | 1-1/4″ | 2″ | 3-1/4″ | 3/8″ – 5/8″ | 7,500 | 10.5 |
No. 2 Equipped with soft brass inserts to prevent damaging thin wall gas or oil pipe.
No. 3 Same as No. 2 with a throat opening. Has brass insert.

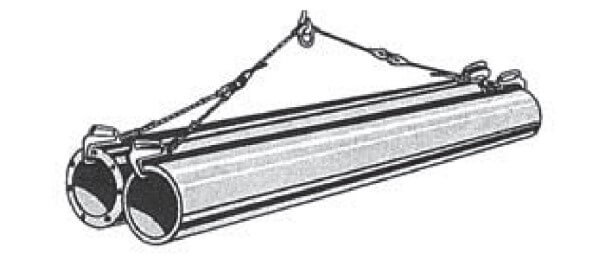

Working loads shown in table are based on slings using two pipe hooks.
