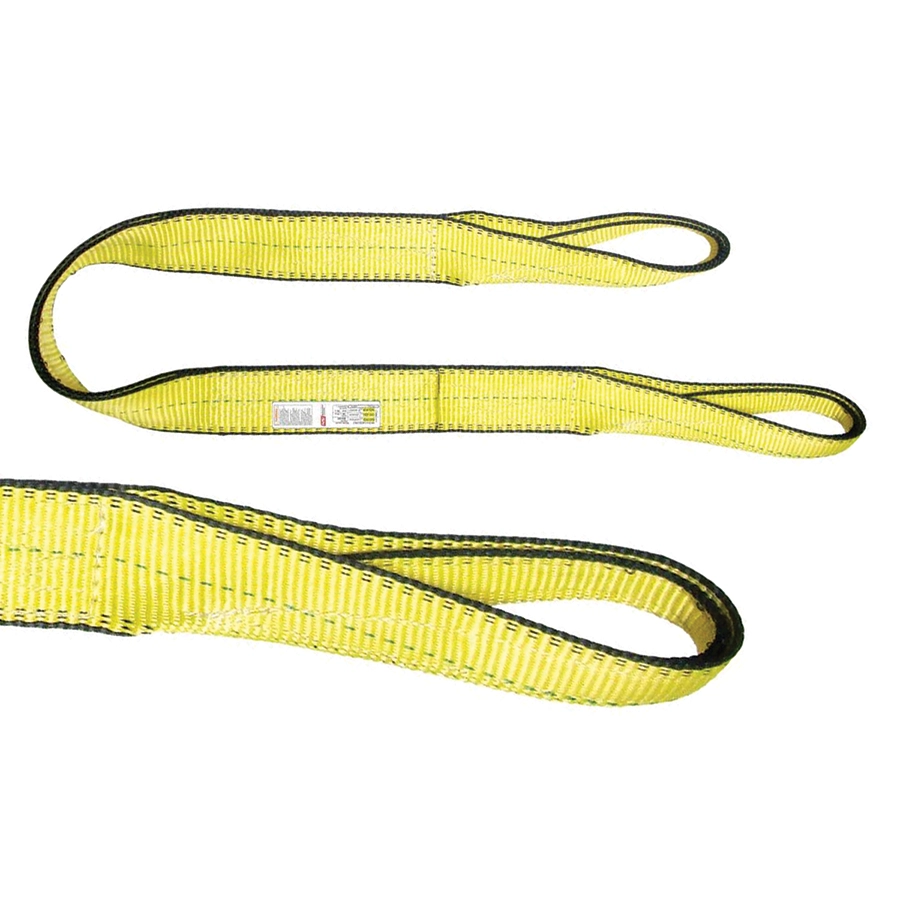

Nylon & Polyester Slings Tapered Eye-Eye
• Additional Eye Variations:
– Flat Eye-Eye
– Twisted Eye-Eye
– Endless
– Reversed Eye-Eye
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
Specifications
A tapered eye offers the same working load limit with a slimmer profile in the eye. This slimmer profile allows the eye to fit most hooks. Slings with widths of 3″ or greater come standard with a tapered eye.
Product edge may vary. Please specify when ordering.
| PLY | WEB WIDTH | VERTICAL RATED CAPACITY (LBS.) | CHOKER RATED CAPACITY (LBS.) | BASKET RATED CAPACITY (LBS.) | STOCK NUMBER |
|---|---|---|---|---|---|
| ONE PLY | 1″ | 1,600 | 1,280 | 3,200 | EE1-901 |
| 2″ | 3,200 | 2,560 | 6,400 | EE1-902 | |
| 3″ | 4,800 | 3,840 | 9,600 | EE1-903 | |
| 4″ | 6,400 | 5,120 | 12,800 | EE1-904 | |
| 6″ | 9,600 | 7,680 | 19,200 | EE1-906 | |
| 8″ | 12,800 | 10,240 | 25,600 | EE1-908 | |
| 10″ | 16,000 | 12,800 | 32,000 | EE1-910 | |
| 12″ | 19,200 | 15,360 | 38,400 | EE1-912 | |
| TWO PLY | 1″ | 3,200 | 2,560 | 6,400 | EE2-901 |
| 2″ | 6,400 | 5,120 | 12,800 | EE2-902 | |
| 3″ | 9,600 | 7,680 | 19,200 | EE2-903 | |
| 4″ | 12,800 | 10,240 | 25,600 | EE2-904 | |
| 6″ | 16,320 | 13,056 | 32,640 | EE2-906 | |
| 8″ | 22,700 | 18,200 | 45,400 | EE2-908 | |
| 10″ | 28,400 | 22,700 | 56,800 | EE2-910 | |
| 12″ | 32,640 | 26,100 | 65,280 | EE2-912 | |
| THREE PLY | 1″ | 4,100 | 3,300 | 8,200 | EE3-901 |
| 2″ | 8,200 | 6,600 | 16,400 | EE3-902 | |
| 3″ | 12,300 | 9,900 | 24,600 | EE3-903 | |
| 4″ | 15,300 | 12,200 | 30,600 | EE3-904 | |
| 6″ | 22,900 | 18,300 | 45,800 | EE3-906 | |
| 8″ | 30,600 | 24,500 | 61,200 | EE3-908 | |
| FOUR PLY | 1″ | 6,400 | 5,120 | 12,800 | EE4-901 |
| 2″ | 12,800 | 10,240 | 25,600 | EE4-902 | |
| 3″ | 19,200 | 15,360 | 38,400 | EE4-903 | |
| 4″ | 25,600 | 20,480 | 51,200 | EE4-904 | |
| 6″ | 32,640 | 26,100 | 65,280 | EE4-906 | |
| 8″ | 45,400 | 36,300 | 90,800 | EE4-908 |
Lengths from 18″ to 30′ plus.
Note: Twisted Eye Slings retain the same rated capacity as Flat Eye Slings.
Note: All slings and bridles can be fitted with wear pads and sleeves.
Wear Pads: Wear pads provide extra protection at concentrated wear points. They can be sewn at predetermined wear areas, on one or both sides of the sling, or in the eyes of the sling. Wear pads can be any length. Wear pads are sewn on and cannot be moved. Wear pads are available in leather or Cordura® in all widths.
Wear Sleeves: Sleeves add the ability to slide or move the protection at various points. SLIDING SLEEVES are removable from the sling. READY SLEEVES are sewn with ‘Velcro’ to accommodate fast and easy installation & removal. They are perfect for slings with hardware. See page 12-13 for more strap protection. Sleeves are available in Cordura®, webbing, leather, or felt in all widths.

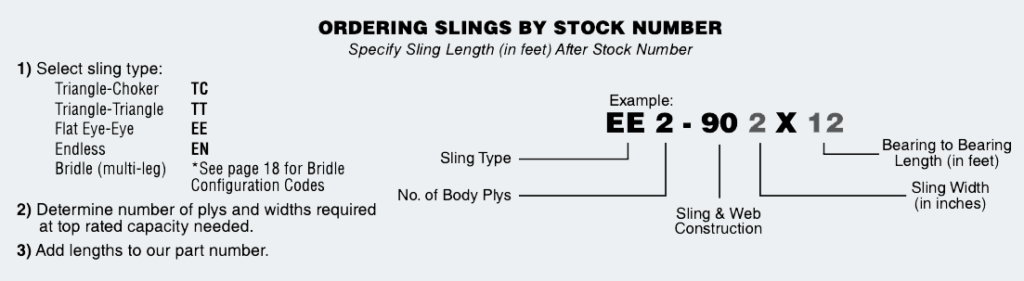

Stock Number Information
