TYPE 5, CLASS 7 WEBBING
| PLY | WEB WIDTH | RATED CAPACITY (LBS.) | STOCK NUMBER | |||
|---|---|---|---|---|---|---|
| VERTICAL | CHOKER | BASKET | NYLON | POLYESTER | ||
| ONE PLY | 1″ | 3,200 | 2,560 | 6,400 | EN1-901 | EN1P901 |
| 2″ | 6,400 | 5,120 | 12,800 | EN1-902 | EN1P902 | |
| 3″ | 9,600 | 7,680 | 19,200 | EN1-903 | EN1P903 | |
| 4″ | 12,800 | 10,240 | 25,600 | EN1-904 | EN1P904 | |
| 6″ | 16,320 | 13,050 | 32,640 | EN1-906 | EN1P906 | |
| 8″ | 22,700 | 18,200 | 45,400 | EN1-908 | EN1P908 | |
| 10″ | 28,400 | 22,700 | 56,800 | EN1-910 | EN1P910 | |
| 12″ | 32,640 | 26,100 | 65,280 | EN1-912 | EN1P912 | |
| TWO PLY | 1″ | 6,400 | 5,120 | 12,800 | EN2-901 | EN2P901 |
| 2″ | 12,800 | 10,240 | 25,600 | EN2-902 | EN2P902 | |
| 3″ | 19,200 | 15,360 | 38,400 | EN2-903 | EN2P903 | |
| 4″ | 25,600 | 20,480 | 51,200 | EN2-904 | EN2P904 | |
| 6″ | 32,640 | 26,100 | 65,280 | EN2-906 | EN2P906 | |
| 8″ | 45,400 | 36,400 | 90,800 | EN2-908 | EN2P908 | |
| 10″ | 53,300 | 42,640 | 106,600 | EN2-910 | EN2P910 | |
| 12″ | 61,200 | 48,900 | 122,300 | EN2-912 | EN2P912 | |
Protective webbing sleeves can be placed on any part of type 3 & 4 slings as well as type 5 (endless) slings.
Endless web slings are the most practical type for many hoisting applications. They can be used for both a choker or basket sling.
For 3 and 4 ply web slings wider than 6 inches, we recommend examining our Endless Round Slings as an alternative option for ease of use and lower cost.
We sew synthetic slings to your specifications. Please call with any custom requirements.

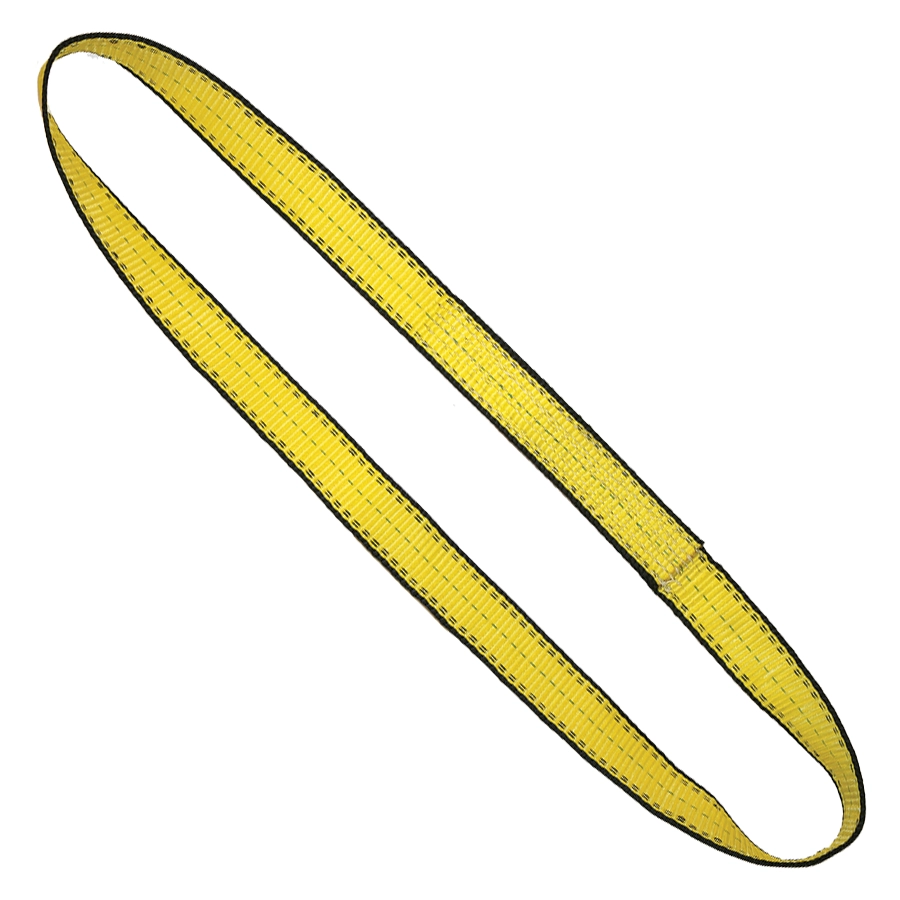

ENDLESS SLING TYPE 5
ORDERING SLINGS BY STOCK NUMBER
Specify Sling Length (in feet) After Stock Number
- Select the sling type best suited:
Triangle-Choker TC
Triangle-Triangle TT
Flat Eye-Eye EE
Endless EN
Bridle - Determine number of plys and widths required at top rated capacity needed.
- Add lengths to our part number.
