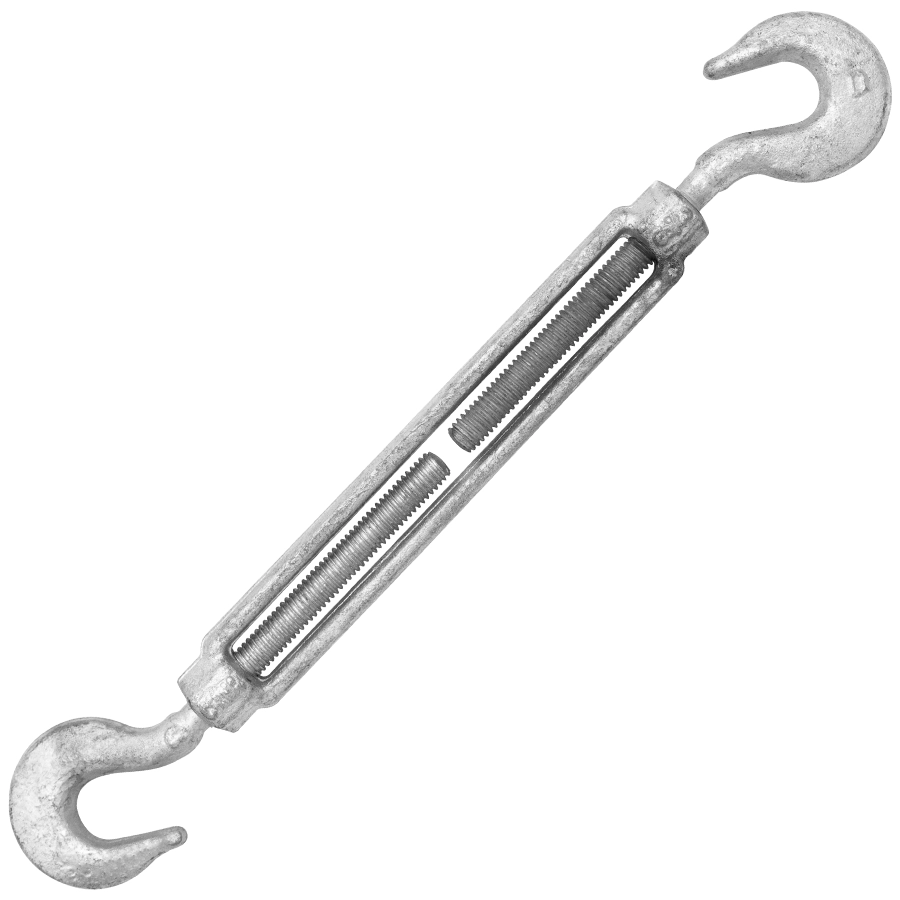

Hook-Hook Galvanized Turnbuckles
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBERS | SIZE | OVERALL CLOSED LENGTH | WORKING LOAD LIMIT (LBS.) | APPROXIMATE WEIGHT/PIECE (LBS.) | DIMENSIONS | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | |||||
| TBHH250X4 | 1/4″X 4″ | 8.1″ | 400 | .30 | .25″ | .44″ | 1.67″ | 1.27″ | 9.79″ | 7.38″ | 12.20″ | 8.20″ | 4.07″ |
| TBHH312X450 | 5/16 X 4 1/2″ | 9.5″ | 700 | .53 | .31″ | .50″ | 2.00″ | 1.50″ | 11.58″ | 8.58″ | 14.08″ | 9.58″ | 4.58″ |
| TBHH375X6 | 3/8″ X 6″ | 11.8″ | 1,000 | .75 | .38″ | .56″ | 2.28″ | 1.77″ | 15.23″ | 10.62″ | 17.84″ | 11.84″ | 6.10″ |
| TBHH500X6 | 1/2″X 6″ | 13.5″ | 1,500 | 1.50 | .50″ | .65″ | 3.53″ | 2.28″ | 17.98″ | 13.20″ | 20.76″ | 14.76″ | 6.03″ |
| TBHH500X9 | 1/2″ X 9″ | 16.5″ | 1,500 | 1.75 | .50″ | .65″ | 3.53″ | 2.28″ | 24.15″ | 15.90″ | 27.35″ | 18.12″ | 9.18″ |
| TBHH500X12 | 1/2″ X 12″ | 19.5″ | 1,500 | 2.18 | .50″ | .65″ | 3.51″ | 2.28″ | 30.27″ | 19.49″ | 33.05″ | 21.05″ | 12.36″ |
| TBHH625X6 | 5/8 X 6″ | 15.5″ | 2,250 | 2.63 | .63″ | .90″ | 4.24″ | 2.81″ | 19.50″ | 14.50″ | 22.50″ | 16.50″ | 6.03″ |
| TBHH625X9 | 5/8″ X 9″ | 18.3″ | 2,250 | 3.00 | .63″ | .90″ | 4.24″ | 2.81″ | 25.67″ | 17.67″ | 28.70″ | 19.70″ | 9.18″ |
| TBHH625X12 | 5/8″ X 12″ | 21.3″ | 2,250 | 3.25 | .63″ | .90″ | 4.23″ | 2.81″ | 31.84″ | 20.84″ | 34.84″ | 22.84″ | 12.39″ |
| TBHH750X6 | 3/4″ X 6″ | 17.1″ | 3,000 | 3.75 | .75″ | .98″ | 5.07″ | 3.33″ | 21.19″ | 15.98″ | 24.40″ | 18.40″ | 6.13″ |
| TBHH750X9 | 3/4″ X 9″ | 20.1″ | 3,000 | 4.50 | .75″ | .98″ | 5.07″ | 3.33″ | 27.40″ | 19.18″ | 30.60″ | 21.60″ | 9.33″ |
| TBHH750X12 | 3/4″ X 12″ | 23.1″ | 3,000 | 5.75 | .75″ | .98″ | 5.04″ | 3.33″ | 33.59″ | 22.38″ | 36.80″ | 24.80″ | 12.59″ |
| TBHH750X18 | 3/4″ X 18″ | 29.1″ | 3,000 | 7.0 | .75″ | .98″ | 5.07″ | 3.33″ | 45.59″ | 28.38″ | 48.80″ | 30.80″ | 18.53″ |
| TBHH875X12 | 7/8″ X 12″ | 24.6″ | 4,000 | 8.38 | .88″ | 1.13″ | 5.82″ | 3.78″ | 34.89″ | 23.52″ | 38.26″ | 26.26″ | 12.16″ |
| 7/8″ X 18″ | 30.6″ | 4,000 | 10.25 | ||||||||||
| 1″ X 6″ | 21.0″ | 5,000 | 9.04 | ||||||||||
| TBHH100X12 | 1″ X 12″ | 26.9″ | 5,000 | 11.25 | 1.00″ | 1.25 | 6.56″ | 4.25″ | 36.59″ | 25.06″ | 40.12″ | 28.12″ | 12.18″ |
| 1″ X 18″ | 32.9″ | 5,000 | 14.0 | ||||||||||
| 1″ X 24″ | 39.1″ | 5,000 | 17.0 | ||||||||||
| 1 1/4″ X 12″ | 30.1″ | 6,500 | 19.0 | ||||||||||
| 1 1/4″ X 18″ | 36.1″ | 6,500 | 24.1 | ||||||||||
| 1 1/4″ X 24″ | 42.1″ | 6,500 | 25.0 | ||||||||||
| 1 1/2″ X 12″ | 32.3″ | 7,500 | 27.0 | ||||||||||
| 1 1/2″ X 18″ | 38.3″ | 7,500 | 31.2 | ||||||||||
| 1 1/2″ X 24″ | 44.3″ | 7,500 | 38.2 | ||||||||||
| 2″ X 24″ | 51.7″ | – | 85.3 | ||||||||||
| STOCK NUMBERS | DIMENSIONS | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | |
| TBHH250X4 | .25″ | .44″ | 1.67″ | 1.27″ | 9.79″ | 7.38″ | 12.20″ | 8.20″ | 4.07″ |
| TBHH312X450 | .31″ | .50″ | 2.00″ | 1.50″ | 11.58″ | 8.58″ | 14.08″ | 9.58″ | 4.58″ |
| TBHH375X6 | .38″ | .56″ | 2.28″ | 1.77″ | 15.23″ | 10.62″ | 17.84″ | 11.84″ | 6.10″ |
| TBHH500X6 | .50″ | .65″ | 3.53″ | 2.28″ | 17.98″ | 13.20″ | 20.76″ | 14.76″ | 6.03″ |
| TBHH500X9 | .50″ | .65″ | 3.53″ | 2.28″ | 24.15″ | 15.90″ | 27.35″ | 18.12″ | 9.18″ |
| TBHH500X12 | .50″ | .65″ | 3.51″ | 2.28″ | 30.27″ | 19.49″ | 33.05″ | 21.05″ | 12.36″ |
| TBHH625X6 | .63″ | .90″ | 4.24″ | 2.81″ | 19.50″ | 14.50″ | 22.50″ | 16.50″ | 6.03″ |
| TBHH625X9 | .63″ | .90″ | 4.24″ | 2.81″ | 25.67″ | 17.67″ | 28.70″ | 19.70″ | 9.18″ |
| TBHH625X12 | .63″ | .90″ | 4.23″ | 2.81″ | 31.84″ | 20.84″ | 34.84″ | 22.84″ | 12.39″ |
| TBHH750X6 | .75″ | .98″ | 5.07″ | 3.33″ | 21.19″ | 15.98″ | 24.40″ | 18.40″ | 6.13″ |
| TBHH750X9 | .75″ | .98″ | 5.07″ | 3.33″ | 27.40″ | 19.18″ | 30.60″ | 21.60″ | 9.33″ |
| TBHH750X12 | .75″ | .98″ | 5.04″ | 3.33″ | 33.59″ | 22.38″ | 36.80″ | 24.80″ | 12.59″ |
| TBHH750X18 | .75″ | .98″ | 5.07″ | 3.33″ | 45.59″ | 28.38″ | 48.80″ | 30.80″ | 18.53″ |
| TBHH875X12 | .88″ | 1.13″ | 5.82″ | 3.78″ | 34.89″ | 23.52″ | 38.26″ | 26.26″ | 12.16″ |
| TBHH100X12 | 1.00″ | 1.25 | 6.56″ | 4.25″ | 36.59″ | 25.06″ | 40.12″ | 28.12″ | 12.18″ |

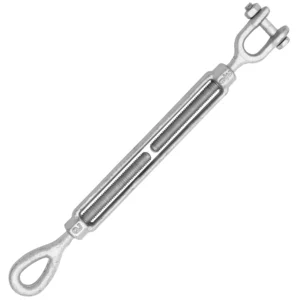

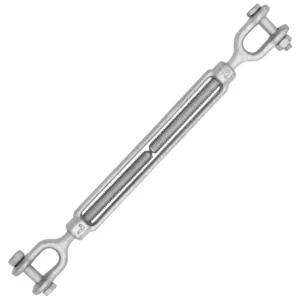

| EYE & EYE | EYE & HOOK | HOOK & HOOK | EYE & JAW | JAW & JAW | STUB END |
|---|---|---|---|---|---|
| TBEE (Size) | TBEH (Size) | TBHH (Size) | TBEJ (Size) | TBJJ (Size) | TBSS (Size) |
