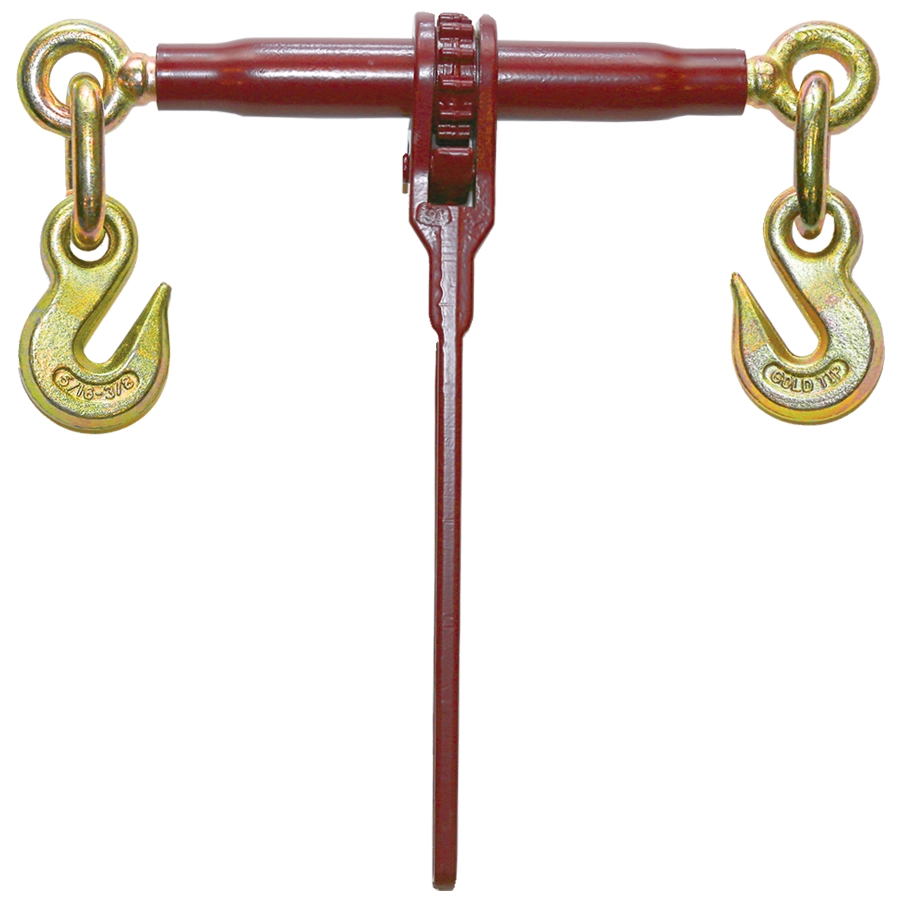

Gold-Tip® LITE Grab-Grab Load Binder
• Tapered barrel
• Grab-Grab end fittings
• Fittings are yellow zinc plated
• Powder coated handle and barrel
• All load bearing fittings are forged
• Quenched and tempered
• One piece handle
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBER | CHAIN SIZE | GRAB HOOK SIZE |
TAKE-UP | BARREL LENGTH | HANDLE LENGTH |
SCREW DIAMETER | BEARING TO BEARING (CLOSED-OPEN) | WORKING LOAD LIMIT (LBS.) |
PROOF LOAD LIMIT (LBS.) |
WEIGHT (LBS.) |
|---|---|---|---|---|---|---|---|---|---|---|
| GT3500L | 3/16″ – 1/4″ | 1/4″ | 4″ | 6″ | 8″ | 1/2″ | 16″ – 20″ | 3,500 | 7,000 | 8 |
| GT4700L | 1/4″ – 5/16″ | 5/16″ | 8″ | 10″ | 12″ | 1/2″ | 20″ – 28″ | 4,700 | 9,400 | 9 |
| GT7100L | 5/16″ – 3/8″ | 3/8″ | 8″ | 10″ | 15″ | 7/8″ | 25″ – 33″ | 7,100 | 14,200 | 12 |
| GT11300L | 3/8″ – 1/2″ | 1/2″ | 8″ | 10″ | 15″ | 7/8″ | 26″ – 34″ | 11,300 | 22,600 | 16 |
| STOCK NUMBER |
PRODUCT IMAGE |
|---|---|

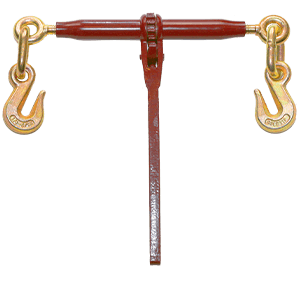

| GT3500L |  |
| GT4700L |  |

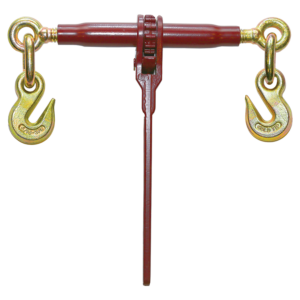

| GT7100L |  |
| GT11300L |  |
