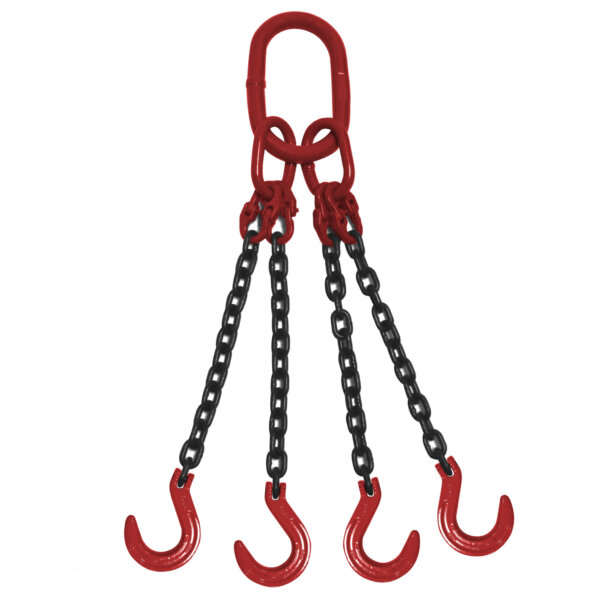

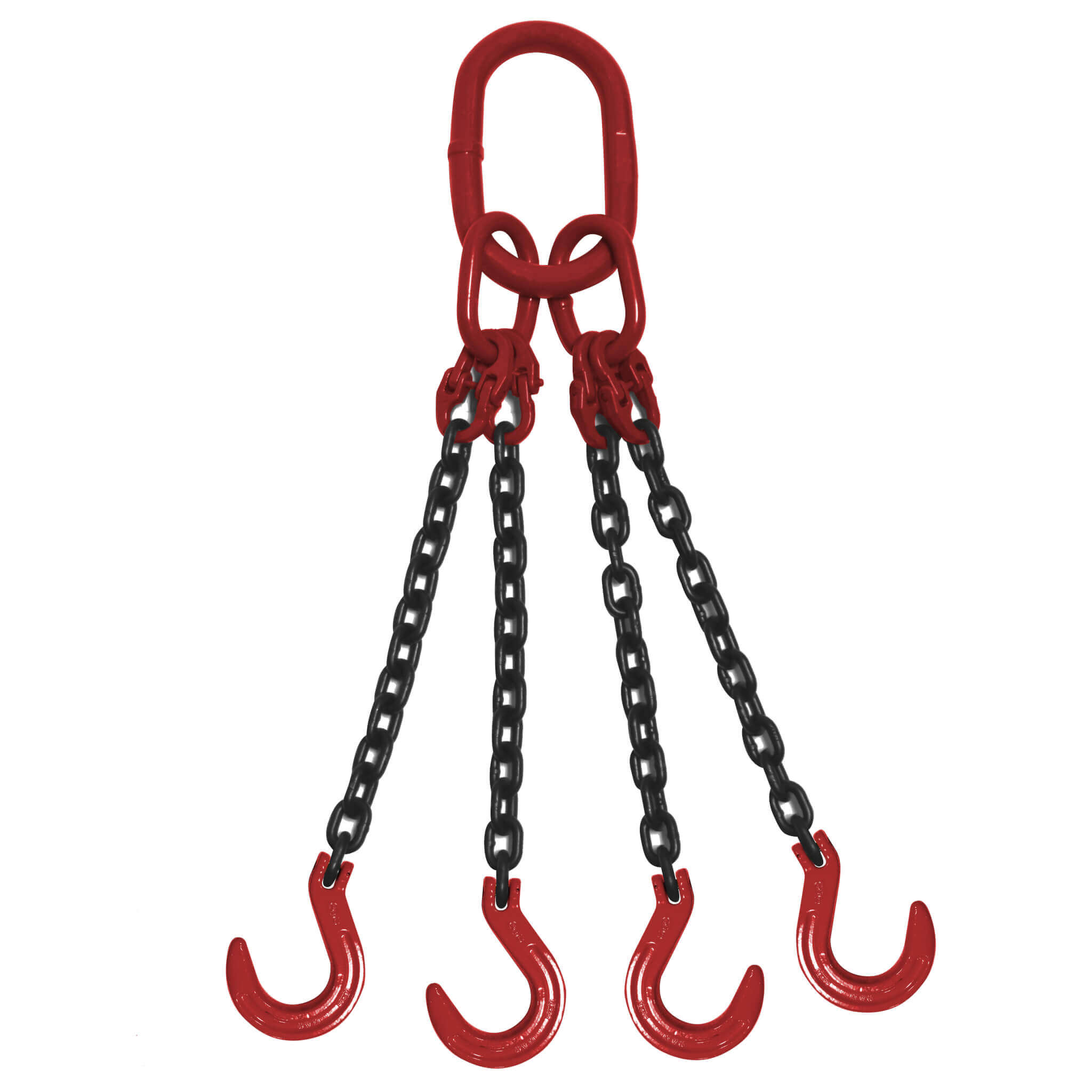

Grade 80 QOF Chain Sling
- Grade 80 Chain Slings are approved by OSHA for overhead lifting.
- Black Lacquer chain.
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| CHAIN SIZE | TRIPLE/ QUADRUPLE AT 60° ANGLE |
TRIPLE/ QUADRUPLE AT 45° ANGLE |
TRIPLE/ QUADRUPLE AT 30° ANGLE |
|---|---|---|---|
 |
 |
 |
|
| 9/32” | 9,100 | 7,400 | 5,200 |
| 3/8” | 18,400 | 15,100 | 10,600 |
| 1/2” | 31,200 | 25,500 | 18,000 |
| 5/8” | 47,000 | 38,400 | 27,100 |
| 3/4” | 73,500 | 60,000 | 42,400 |
| 7/8” | 88,900 | 72,500 | 51,300 |
| 1” | 123,900 | 101,200 | 71,500 |
| 1 1/4” | 187,800 | 153,400 | 108,400 |
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
