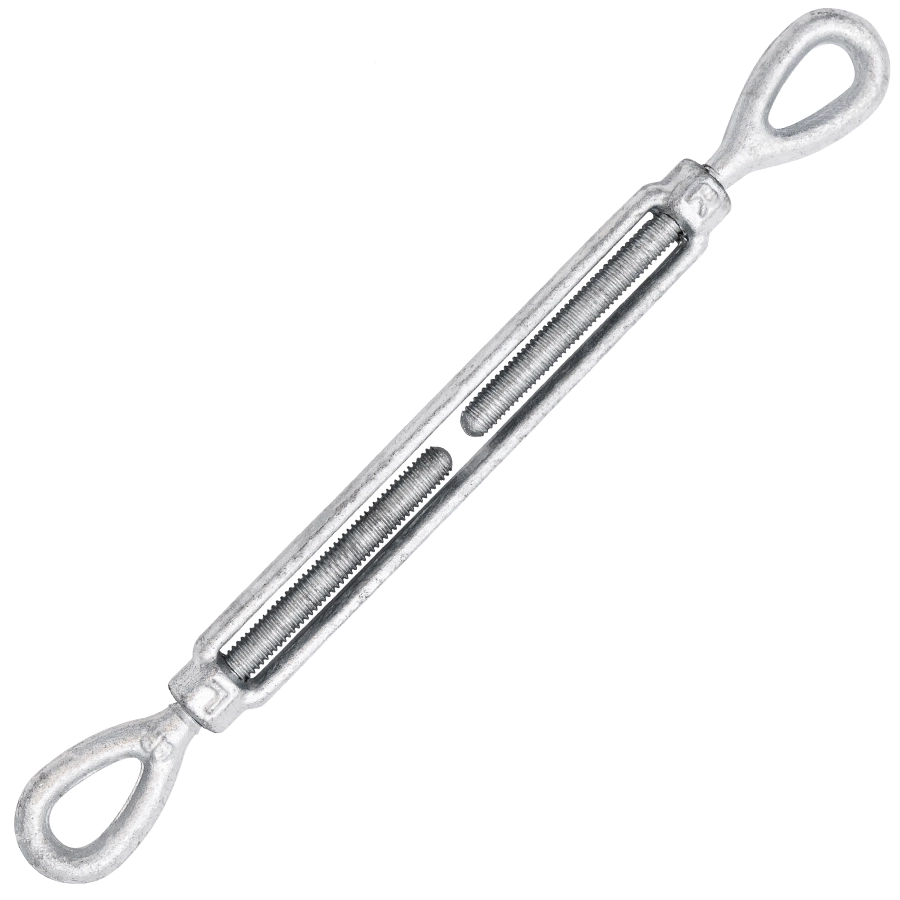

Eye-Eye Galvanized Turnbuckles
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
| STOCK NUMBERS | SIZE | WORKING LOAD LIMIT | APPROXIMATE WEIGHT/PIECE | DIMENSIONS | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | ||||
| TBEE250X4 | 1/4″ X 4″ | 500 lbs. | .29 lbs. | .25″ | 11.94″ | 7.94″ | 12.38″ | 8.38″ | .81″ | .34″ | 1.76″ | 4.07″ |
| TBEE312X450 | 5/16″ X 4 1/2″ | 800 lbs. | .48 lbs. | .31″ | 13.92″ | 9.42″ | 14.48″ | 9.98″ | .95″ | .44″ | 2.20″ | 4.58″ |
| TBEE375X6 | 3/8″ X 6″ | 1,200 lbs. | .75 lbs. | .38″ | 17.56″ | 11.56″ | 18.24″ | 12.24″ | 1.13″ | .53″ | 2.48″ | 6.10″ |
| TBEE500X6 | 1/2″ X 6″ | 2,200 lbs. | 1.72 lbs. | .50″ | 19.94″ | 13.94″ | 20.82″ | 14.82″ | 1.41″ | .71″ | 3.56″ | 6.03″ |
| TBEE500X9 | 1/2″ X 9″ | 2,200 lbs. | 2.30 lbs. | .50″ | 26.14″ | 17.15″ | 26.96″ | 17.97″ | 1.41″ | .71″ | 3.56″ | 9.21″ |
| TBEE500X12 | 1/2″ X 12″ | 2,200 lbs. | 2.63 lbs. | .50″ | 32.23″ | 20.23″ | 33.11″ | 21.11″ | 1.41″ | .71″ | 3.54″ | 12.36″ |
| TBEE625X6 | 5/8″ X 6″ | 3,500 lbs. | 2.75 lbs. | .63″ | 21.72″ | 15.72″ | 22.72″ | 16.72″ | 1.80″ | .88″ | 4.35″ | 6.03″ |
| TBEE625X9 | 5/8″ X 9″ | 3,500 lbs. | 3.60 lbs. | .63″ | 27.87″ | 18.92″ | 28.88″ | 19.84″ | 1.80″ | .88″ | 4.35″ | 9.21″ |
| TBEE625X12 | 5/8″ X 12″ | 3,500 lbs. | 4.12 lbs | .63″ | 34.06″ | 22.06″ | 35.06″ | 23.06″ | 1.80″ | .88″ | 4.34″ | 12.39″ |
| TBEE750X6 | 3/4″ X 6″ | 5,200 lbs. | 4.22 lbs. | .75″ | 23.24″ | 17.24″ | 24.50″ | 18.50″ | 2.09″ | 1.00″ | 5.12″ | 6.13″ |
| TBEE750X9 | 3/4″ X 9″ | 5,200 lbs. | 5.50 lbs. | .75″ | 29.44″ | 20.44″ | 30.70″ | 21.70″ | 2.09″ | 1.00″ | 5.12″ | 9.33″ |
| TBEE750X12 | 3/4″ X 12″ | 5,200 lbs. | 6.12 lbs. | .75″ | 35.64″ | 23.64″ | 36.90″ | 24.90″ | 2.09″ | 1.00″ | 5.09″ | 12.59″ |
| TBEE750X18 | 3/4″ X 18″ | 5,200 lbs. | 7.83 lbs. | .75″ | 47.64″ | 29.64″ | 48.90″ | 30.90″ | 2.09″ | 1.00″ | 5.12″ | 18.53″ |
| TBEE875X12 | 7/8″ X 12″ | 7,200 lbs. | 8.83 lbs. | .88″ | 36.70″ | 24.70″ | 38.20″ | 26.20″ | 2.38″ | 1.25″ | 5.79″ | 12.16″ |
| TBEE875X18 | 7/8″ X 18″ | 7,200 lbs. | 11.5 lbs. | .88″ | 49.17″ | 31.17″ | 50.67″ | 32.67″ | 2.38″ | 1.25″ | 5.79″ | 18.63″ |
| TBEE100X6 | 1″ X 6″ | 10,000 lbs. | 9.62 lbs. | 1.00″ | 26.24″ | 20.24″ | 28.00″ | 22.00″ | 3.00″ | 1.43″ | 6.50″ | 6.18″ |
| TBEE100X12 | 1″ X 12″ | 10,000 lbs. | 13.0 lbs. | 1.00″ | 38.24″ | 26.24″ | 40.00″ | 28.00″ | 3.00″ | 1.43″ | 6.50″ | 12.18″ |
| TBEE100X18 | 1″ X 18″ | 10,000 lbs. | 16.3 lbs. | 1.00″ | 50.24″ | 32.24″ | 52.00″ | 34.00″ | 3.00″ | 1.43″ | 6.50″ | 18.18″ |
| TBEE100X24 | 1″ X 24″ | 10,000 lbs. | 20.2 lbs. | 1.00″ | 62.84″ | 38.84″ | 64.60″ | 40.60″ | 3.00″ | 1.43″ | 6.47″ | 24.84″ |
| TBEE1250X12 | 1 1/4″ X 12″ | 15,200 lbs. | 19.9 lbs | 1.25″ | 42.14″ | 30.14″ | 44.38″ | 32.38″ | 3.59″ | 1.82″ | 8.49″ | 12.06″ |
| TBEE1250X18 | 1 1/4″ X 18″ | 15,200 lbs. | 23.18 lbs. | 1.25″ | 54.14″ | 36.14″ | 56.38″ | 38.38″ | 3.59″ | 1.82″ | 8.49″ | 18.06″ |
| TBEE1250X24 | 1 1/4″ X 24″ | 15,200 lbs. | 27.8 lbs | 1.25″ | 66.70″ | 42.70″ | 68.94″ | 44.94″ | 3.59″ | 1.82″ | 8.49″ | 24.62″ |
| TBEE1500X18 | 1 1/2″ X 18″ | 21,400 lbs. | 34.1 lbs. | 1.50″ | 56.24″ | 38.24″ | 58.74″ | 40.74″ | 4.09″ | 2.12″ | 9.46″ | 18.32″ |
| TBEE1500X24 | 1 1/2″ X 24″ | 21,400 lbs. | 58.2 lbs. | 1.75″ | 69.38″ | 45.38″ | 72.38″ | 48.38″ | 4.65″ | 2.38″ | 9.27″ | 24.37″ |
| STOCK NUMBERS | DIMENSIONS | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | |
| TBEE250X4 | .25″ | 11.94″ | 7.94″ | 12.38″ | 8.38″ | .81″ | .34″ | 1.76″ | 4.07″ |
| TBEE312X450 | .31″ | 13.92″ | 9.42″ | 14.48″ | 9.98″ | .95″ | .44″ | 2.20″ | 4.58″ |
| TBEE375X6 | .38″ | 17.56″ | 11.56″ | 18.24″ | 12.24″ | 1.13″ | .53″ | 2.48″ | 6.10″ |
| TBEE500X6 | .50″ | 19.94″ | 13.94″ | 20.82″ | 14.82″ | 1.41″ | .71″ | 3.56″ | 6.03″ |
| TBEE500X9 | .50″ | 26.14″ | 17.15″ | 26.96″ | 17.97″ | 1.41″ | .71″ | 3.56″ | 9.21″ |
| TBEE500X12 | .50″ | 32.23″ | 20.23″ | 33.11″ | 21.11″ | 1.41″ | .71″ | 3.54″ | 12.36″ |
| TBEE625X6 | .63″ | 21.72″ | 15.72″ | 22.72″ | 16.72″ | 1.80″ | .88″ | 4.35″ | 6.03″ |
| TBEE625X9 | .63″ | 27.87″ | 18.92″ | 28.88″ | 19.84″ | 1.80″ | .88″ | 4.35″ | 9.21″ |
| TBEE625X12 | .63″ | 34.06″ | 22.06″ | 35.06″ | 23.06″ | 1.80″ | .88″ | 4.34″ | 12.39″ |
| TBEE750X6 | .75″ | 23.24″ | 17.24″ | 24.50″ | 18.50″ | 2.09″ | 1.00″ | 5.12″ | 6.13″ |
| TBEE750X9 | .75″ | 29.44″ | 20.44″ | 30.70″ | 21.70″ | 2.09″ | 1.00″ | 5.12″ | 9.33″ |
| TBEE750X12 | .75″ | 35.64″ | 23.64″ | 36.90″ | 24.90″ | 2.09″ | 1.00″ | 5.09″ | 12.59″ |
| TBEE750X18 | .75″ | 47.64″ | 29.64″ | 48.90″ | 30.90″ | 2.09″ | 1.00″ | 5.12″ | 18.53″ |
| TBEE875X12 | .88″ | 36.70″ | 24.70″ | 38.20″ | 26.20″ | 2.38″ | 1.25″ | 5.79″ | 12.16″ |
| TBEE875X18 | .88″ | 49.17″ | 31.17″ | 50.67″ | 32.67″ | 2.38″ | 1.25″ | 5.79″ | 18.63″ |
| TBEE100X6 | 1.00″ | 26.24″ | 20.24″ | 28.00″ | 22.00″ | 3.00″ | 1.43″ | 6.50″ | 6.18″ |
| TBEE100X12 | 1.00″ | 38.24″ | 26.24″ | 40.00″ | 28.00″ | 3.00″ | 1.43″ | 6.50″ | 12.18″ |
| TBEE100X18 | 1.00″ | 50.24″ | 32.24″ | 52.00″ | 34.00″ | 3.00″ | 1.43″ | 6.50″ | 18.18″ |
| TBEE100X24 | 1.00″ | 62.84″ | 38.84″ | 64.60″ | 40.60″ | 3.00″ | 1.43″ | 6.47″ | 24.84″ |
| TBEE1250X12 | 1.25″ | 42.14″ | 30.14″ | 44.38″ | 32.38″ | 3.59″ | 1.82″ | 8.49″ | 12.06″ |
| TBEE1250X18 | 1.25″ | 54.14″ | 36.14″ | 56.38″ | 38.38″ | 3.59″ | 1.82″ | 8.49″ | 18.06″ |
| TBEE1250X24 | 1.25″ | 66.70″ | 42.70″ | 68.94″ | 44.94″ | 3.59″ | 1.82″ | 8.49″ | 24.62″ |
| TBEE1500X18 | 1.50″ | 56.24″ | 38.24″ | 58.74″ | 40.74″ | 4.09″ | 2.12″ | 9.46″ | 18.32″ |
| TBEE1500X24 | 1.75″ | 69.38″ | 45.38″ | 72.38″ | 48.38″ | 4.65″ | 2.38″ | 9.27″ | 24.37″ |
| EYE & EYE | EYE & HOOK | HOOK & HOOK | EYE & JAW | JAW & JAW | STUB END |
|---|---|---|---|---|---|
| TBEE (Size) | TBEH (Size) | TBHH (Size) | TBEJ (Size) | TBJJ (Size) | TBSS (Size) |
