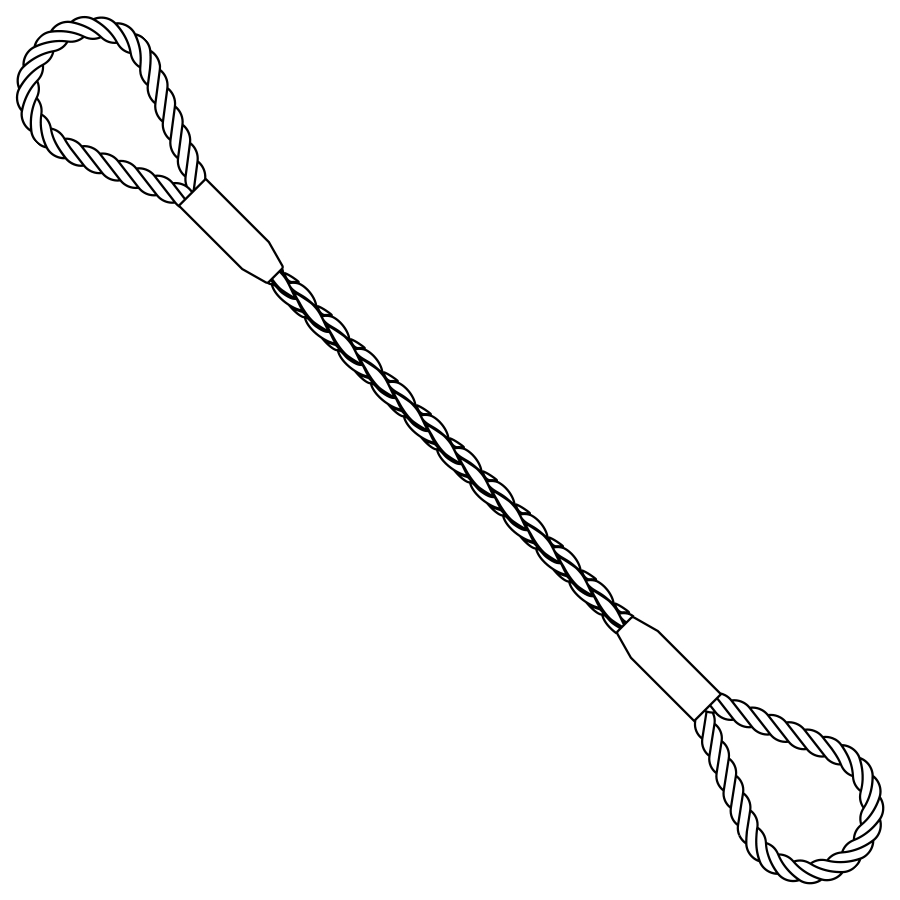

DIAMETER OF INDIVIDUAL PARTS	ONE SLING 3 PARTS EIP
DIAMETER OF INDIVIDUAL PARTS	VERTICAL RATED LOAD (TONS)	FINISHED DIAMETER
1/4″	1.7	1/2″
5/16″	2.6	5/8″
3/8″	3.6	3/4″
7/16″	4.9	7/8″
1/2″	6.4	1″
9/16″	8	1 1/8″
5/8″	9.9	1 1/4″
3/4″	14	1 1/2″
7/8″	19	1 3/4″
1″	24.8	2″
1 1/8″	31.2	2 1/4″
1 1/4″	38.4	2 1/2″
1 3/8″	46	2 3/4″
1 1/2″	55	3″
1 5/8″	63.4	3 1/4″
1 3/4″	73	3 1/2″
2″	95	4″
2 1/4″	118	2 1/2″
2 1/2″	145	5″

Sling capacities for rope diameters 1/8” through 5/16” are based on 7X19 GAC.
*Rated capacities basket hitch based on D/d ratio of 25 times the component rope diameter. Rated capacities based on pin diameter no larger than the natural eye width or no less than the nominal sling diameter. Rated capacities based on design factor of 5.
** See Choker Hitch Rated Capacity Adjustment.

6 PART ROUND BRAID

ROPE DIA	SLING BODY DIAMETER			VERTICAL RATED CAPACITY (TONS)*						STANDARD EYE DIMENSION		THIMBLE
	MIN. SLING LENGTH STANDARD EYE	BODY WIDTH	BODY THICKNESS	VERTICAL	CHOKER	BASKET**				WIDTH	LENGTH	SLIP THRU (IN.)	HEAVY DUTY (IN.)
	MIN. SLING LENGTH STANDARD EYE	BODY WIDTH	BODY THICKNESS	VERTICAL	CHOKER	BASKET	60°	45°	30°	WIDTH	LENGTH	SLIP THRU (IN.)	HEAVY DUTY (IN.)
3/32”	2’0”	7/16”	1/4”	.42	.37	.84	.73	.59	.42	2”	4”	W-2	1/4”
1/8”	2’0”	9/16”	3/8”	.84	.74	1.7	1.5	1.2	.84	3”	6”	W-2	5/16
3/16”	3’0”	13/16”	1/2”	1.6	1.4	3.2	2.8	2.3	1.6	4”	8”	W-3	1/2”
1/4”	3’6”	1 1/8”	11/16”	2.9	2.5	5.7	4.9	4	2.9	5”	10”	W-4	5/8”
5/16”	4’6”	1 3/8”	7/8”	4.4	3.9	8.9	7.7	6.3	4.4	6”	12”	W-4	3/4”
3/8”	5’0”	1 11/16”	1”	6.3	5.5	13	11	9	6.3	7”	14”	W-5	7/8”
7/16”	6’0”	2”	1 3/16”	8.6	7.5	17	15	12	8.6	8”	16”	W-5	1”
1/2”	6’6”	2 1/4”	1 5/16”	11	9.8	22	19	16	11	9”	18”	W-6	1 1/8”
9/16”	7’0”	2 1/2”	1 1/2”	14	12	28	24	20	14	10”	20”	W-6	1 3/8”
5/8”	8’0”	2 13/16”	1 11/16”	17	15	35	30	24	17	11”	22”	W-7	1 1/2”
3/4”	9’0”	3 3/8”	2”	25	22	49	43	35	25	12”	24”	W-8	1 5/8”
7/8”	10’0”	4”	2 5/16”	33	29	67	58	47	33	14”	28”	W-9	2”
1”	11’ 0”	4 1/2”	2 11/16”	43	38	87	75	61	43	16”	32”	W-10	–

7 PART ROUND BRAID

ROPE DIA	SLING BODY DIAMETER	VERTICAL RATED CAPACITY (TONS)*						STANDARD EYE DIMENSION
		VERTICAL	CHOKER	BASKET**				WIDTH	LENGTH
		VERTICAL	CHOKER	BASKET	60°	45°	30°	WIDTH	LENGTH
* 1/8”	3/8”	1.2	1	2.4	2	1.6	1.2	3”	6”
* 3/16”	9/16”	2.4	2.1	4.8	4.2	3.4	2.4	4”	8”
* 1/4”	3/4”	4	3.5	8	6.9	5.7	4	5”	10”
* 5/16”	1”	5.6	4.9	11.2	9.7	8	5.6	6”	12”
3/8”	1 1/8”	8.7	7.6	17.4	15	12.3	8.7	7 1/2”	15”
7/16”	1 5/16”	11.7	10.3	23.4	20.3	46.5	11.7	9”	18”
1/2”	1 1/2”	15.3	13.4	30.6	26.5	21.6	15.3	10”	20”
9/16”	1 3/4”	19.3	16.9	38.6	33.4	27.3	19.3	12”	24”
5/8”	1 7/8”	23.7	20.7	47.4	41	33.5	23.7	12”	24”
3/4”	2 1/4”	33.8	29.5	67.5	58.5	47.7	33.8	15”	30”
7/8”	2 5/8”	45.7	40	91.4	79.2	64.6	45.7	17”	34”
1”	3”	59.4	52	18.7	102.8	81.9	59.4	20”	40”
1 1/8”	3 3/8”	75	65	149	129	105	75	22”	44”
1 1/4”	3 3/4”	92	80	184	159	130	92	25”	50”
1 3/8”	4 1/8”	110	96	220	190	156	110	27”	54”
1 1/2”	4 1/2”	131	115	262	227	185	131	30”	60”
1 3/4”	5 1/4”	176	154	351	304	248	176	35”	70”
2”	6”	227	199	455	394	321	227	40”	80”
2 1/4”	6 3/4”	284	248	567	491	401	284	45”	90”
2 1/2”	7 1/2”	347	303	693	600	490	347	50”	100”
2 3/4”	8 1/4”	414	363	828	717	585	414	55”	110”

8 PART ROUND BRAID

ROPE DIA	MIN. SLING LENGTH STANDARD EYE	SLING DIA.	VERTICAL RATED CAPACITY (TONS)*						STANDARD EYE DIMENSION		THIMBLE
			VERTICAL	CHOKER	BASKET**				WIDTH	LENGTH	SLIP THRU (IN.)	HEAVY DUTY (IN.)
			VERTICAL	CHOKER	BASKET	60°	45°	30°	WIDTH	LENGTH	SLIP THRU (IN.)	HEAVY DUTY (IN.)
3/32”	2’ 0”	7/16”	.56	.49	1.1	.97	.79	.56	2”	4”	W-2	5/16”
1/8”	2’ 0”	9/16”	1.1	1	2.2	1.9	1.6	1.1	3”	6”	W-2	3/8”
3/16”	3’ 0”	13/16”	2.2	1.9	4.3	3.7	3	2.2	4”	8”	W-3	1/2”
1/4”	3’ 6”	1 1/8”	3.8	3.3	7.6	6.6	5.4	3.8	5”	10”	W-4	3/4”
5/16”	4’ 6”	1 3/8”	5.9	5.2	12	10	8.3	5.9	6”	12”	W-5	1″
3/8”	5’ 0”	1 11/16”	8.5	7.4	17	15	12	8.5	7”	14”	W-5	1 1/8”
7/16”	6’ 0”	2”	11	10	23	20	16	11	8”	16”	W-6	1 1/4”
1/2”	6’ 6”	2 1/4”	15	13	30	26	21	15	9”	18”	W-7	1 3/8”
9/16”	7’ 0”	2 1/2”	19	16	38	33	27	19	10”	20”	W-7	1 1/2”
5/8”	8’ 0”	2 13/16”	23	20	46	40	33	23	11”	22”	W-8	1 3/4”
3/4”	9’ 0”	3 3/8”	33	29	66	57	47	33	12”	24”	W-9	2”
7/8”	10’ 0”	4”	45	39	89	77	63	45	14”	28”	W-10	–
1”	11’ 0”	4 1/2”	58	51	116	100	82	58	16”	32”	W-10	–
