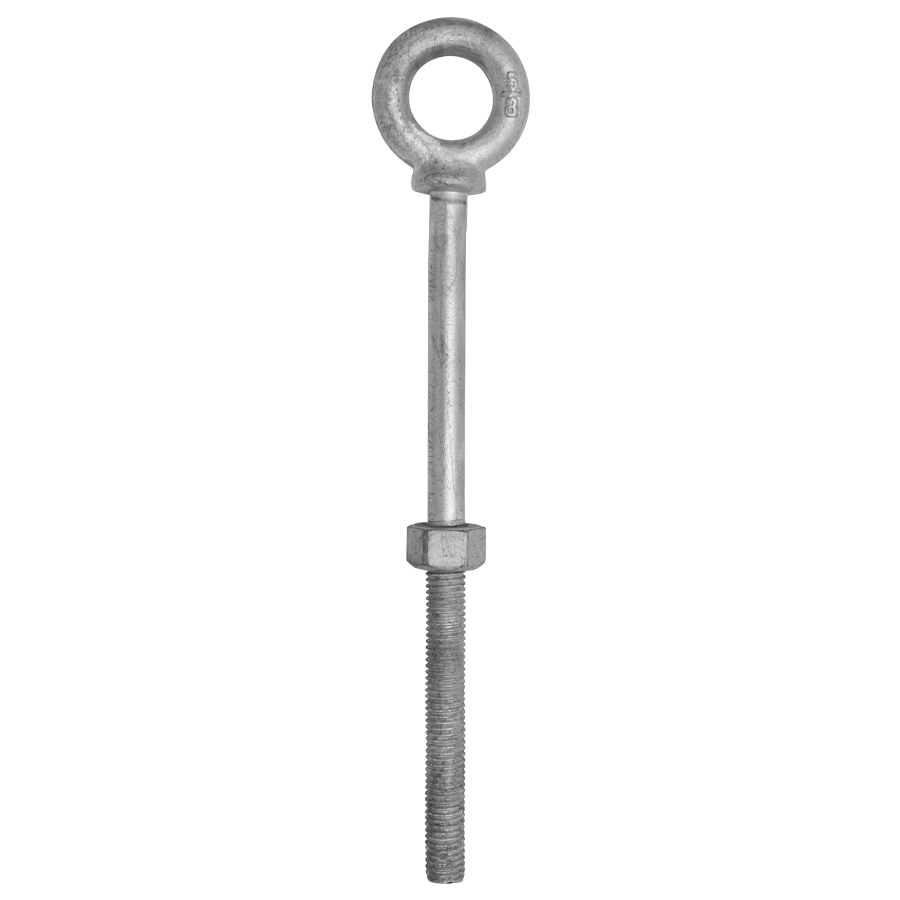

Shoulder Nut Eye Bolts
- Hot dip galvanized
- UNC Course Thread
- Comes with HDG nut
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
Hot Galvanized, Drop Forged
| SIZE | STOCK NUMBER | WORKING LOAD LIMIT (LBS.) | WEIGHT/PIECE (LBS.) |
|---|---|---|---|
| 1/4” X 2” | EB250X2S | 500 | 0.06 |
| 1/4” X 4” | EB250X4S | 500 | 0.09 |
| 5/16” X 2-1/4” | EB312X225S | 800 | 0.11 |
| 5/16” X 4-1/4” | EB312X425S | 800 | 0.15 |
| 3/8” X 2-1/2” | EB375X250S | 1,200 | 0.19 |
| 3/8” X 4-1/2” | EB375X450S | 1,200 | 0.25 |
| 3/8” X 6” | EB375X6S | 1,200 | 0.32 |
| 3/8” X 8” | EB375X8S | 1,200 | 0.38 |
| 1/2 ”X 3-1/4” | EB500X325S | 2,200 | 0.51 |
| 1/2” X 6” | EB500X6S | 2,200 | 0.59 |
| 1/2” X 8” | EB500X8S | 2,200 | – |
| 1/2” X 10” | EB500X10S | 2,200 | – |
| 1/2” X 12” | EB500X12S | 2,200 | – |
| 1/2” X 18” | EB500X18S | 2,200 | – |
| 5/8” X 4” | EB625X4S | 3,500 | 0.83 |
| 5/8” X 6” | EB625X6S | 3,500 | 1.00 |
| 5/8” X 8” | EB625X8S | 3,500 | – |
| 5/8” X 10” | EB625X10S | 3,500 | – |
| 5/8” X 12” | EB625X12S | 3,500 | – |
| 3/4” X 4-1/2” | EB750X450S | 5,200 | 1.5 |
| 3/4” X 6” | EB750X6S | 5,200 | 1.7 |
| 3/4” X 8” | EB750X8S | 5,200 | – |
| 3/4” X 10” | EB750X10S | 5,200 | – |
| 3/4” X 12” | EB750X12S | 5,200 | – |
| 3/4” X 15” | EB750X15S | 5,200 | – |
| 7/8” X 5” | EB875X5S | 7,200 | – |
| 7/8” X 6” | EB875X6S | 7,200 | – |
| 7/8” X 8” | EB875X8S | 7,200 | – |
| 7/8” X 12” | EB875X12S | 7,200 | – |
| 1” X 6” | EB100X6S | 10,000 | 3.75 |
| 1” X 9” | EB100X9S | 10,000 | 4.29 |
| 1” X 12” | EB100X12S | 10,000 | – |
Note: Ultimate Load is 5 times the working load limit. Working load limit applies straight line pull only. Angle pulls can only be used with shoulder eye bolts and the working load limit is reduced: 45 degrees pull – 30% of WLL; 90 degrees pull – 25% of WLL.
| DIRECTION OF PULL (FROM IN-LINE) | ADJUSTED WORKING LOAD |
|---|---|
| 45 degrees | 30% of rated working load |
| 90 degrees | 25% of rated working load |
Warning: The full ratings of machinery eye bolts can only be achieved by pulling directly in line with the threads. For angled lifts, we recommend swivel hoist rings.
WARNING: Prop 65: Products supplied by Advantage Sales & Supply Co. LLC may expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, visit to www.P65Warnings.ca.gov.
