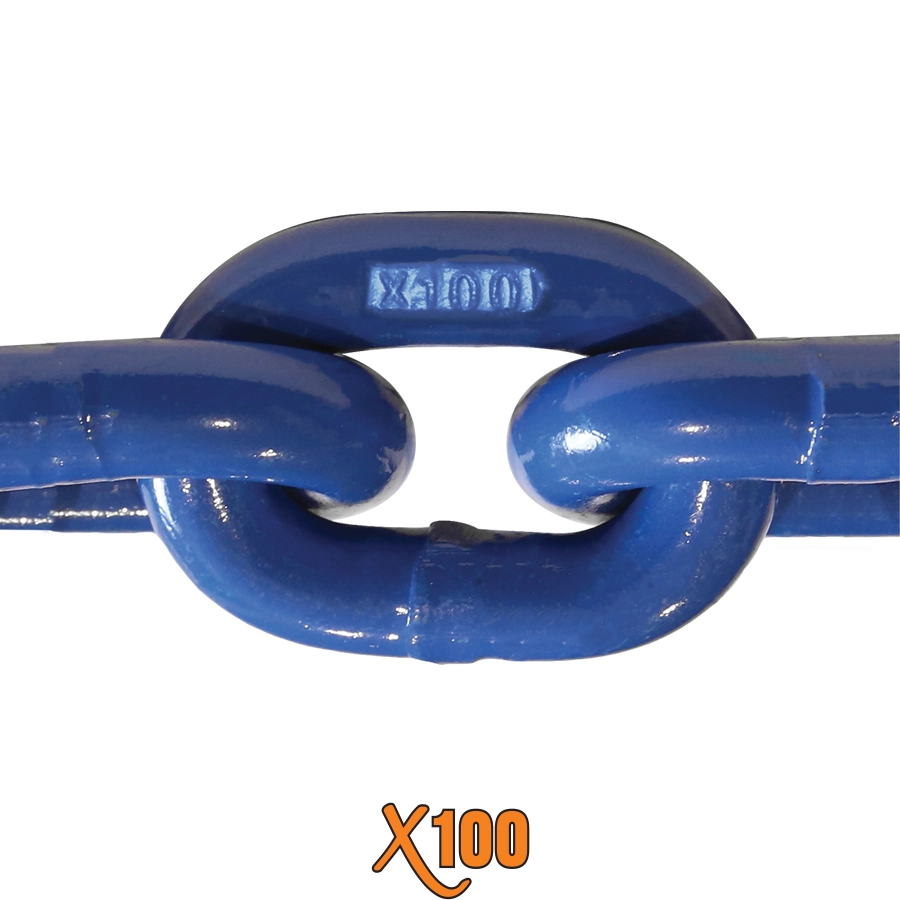

X100 Grade 100 Chain
APPROVED FOR OVERHEAD LIFTING
- Every link has been Proof Tested to Two Times (2X) the Working Load Limit in accordance with the National Association of Chain Manufacturers Specifications
- X100® Grade 100 Chain is suitable for overhead lifting
- Permanently embossed with X100 and a traceable lot code
- BLUE CAT Blue cataphoresis finish
Quality Philosophy
Warnings and Cautions
Federal Specifications
Sales Conditions
BLUE CAT BLUE CATAPHORESIS FINISH
| SIZE | STOCK NUMBER | MATERIAL DIAMETER | INSIDE WIDTH | INSIDE LENGTH | WORKING LOAD LIMIT (LBS.) | FEET/DRUM | WEIGHT/FOOT (LBS.) |
|---|---|---|---|---|---|---|---|
| 9/32″ | X100281 | 0.283″ | .420″ | 0.85″ | 4,300 | 800′ | 0.74 |
| 5/16″ | X100312 | 0.315″ | .500″ | 1.04″ | 5,700 | 550′ | 0.94 |
| 3/8″ | X100375 | 0.394″ | .575″ | 1.26″ | 8,800 | 400′ | 1.48 |
| 1/2″ | X100500 | 0.512″ | .768″ | 1.64″ | 15,000 | 200′ | 2.55 |
| 5/8″ | X100625 | 0.630″ | .930″ | 2.00″ | 22,600 | 150′ | 3.83 |
| 3/4″ | X100750 | 0.750″ | 1.15″ | 2.50″ | 35,300 | 100′ | 6.21 |
X100® Grade 100 Alloy Chain is made in accordance with the standards set forth by the National Association of Chain Manufacturers.
Safety factor: 4:1.
Blue Lacquer Finish
Our X100 pre-made and certified Lifting Chain is low weight, but high strength alloy steel with comparatively high carbon content. Quenched and tempered before proof testing, the ultimate tensile strength of our alloy chain is double that of ordinary steel chain.
Our X100 pre-made and certified Alloy lifting chain meets or exceeds all existing OSHA, Government, NACM, and ASTM requirements. Buying chain and components for a chain sling? Check out Our pre-made and certified chain slings built with this GRADE 100 lifting chain. Offered in single-, double-, triple-, and quadruple-legs and in various configurations.
Chain embossed with grade marking every 36″.
| Temperature | Grade of Chain | ||||
|---|---|---|---|---|---|
| Grade 80 | Grade 100 | ||||
| (°F) | (°C) | Reduction of Working Load Limit WHILE AT Temperature | Permanent Reduction of Working Load Limit AFTER EXPOSURE to Temperature | Reduction of Working Load Limit WHILE AT Temperature | Permanent Reduction of Working Load Limit AFTER EXPLOSURE to Temperature |
| Below 400 | Below 204 | None | None | None | None |
| 400 | 204 | 10% | None | 15% | None |
| 500 | 260 | 15% | None | 25% | 5% |
| 600 | 316 | 20% | 5% | 30% | 15% |
| 700 | 371 | 30% | 10% | 40% | 20% |
| 800 | 427 | 40% | 15% | 50% | 25% |
| 900 | 482 | 50% | 20% | 60% | 30% |
| 1000 | 538 | 60% | 25% | 70% | 35% |
| Over 1000 | Over 538 | OSHA 1910. 184 requires all slings exposed to temperatures over 1000 °F to be removed from service | |||
